8454 (54AX850-100) - Cub Cadet Compact Tractor Main Bearing Case Parts Diagram

Compact Tractor

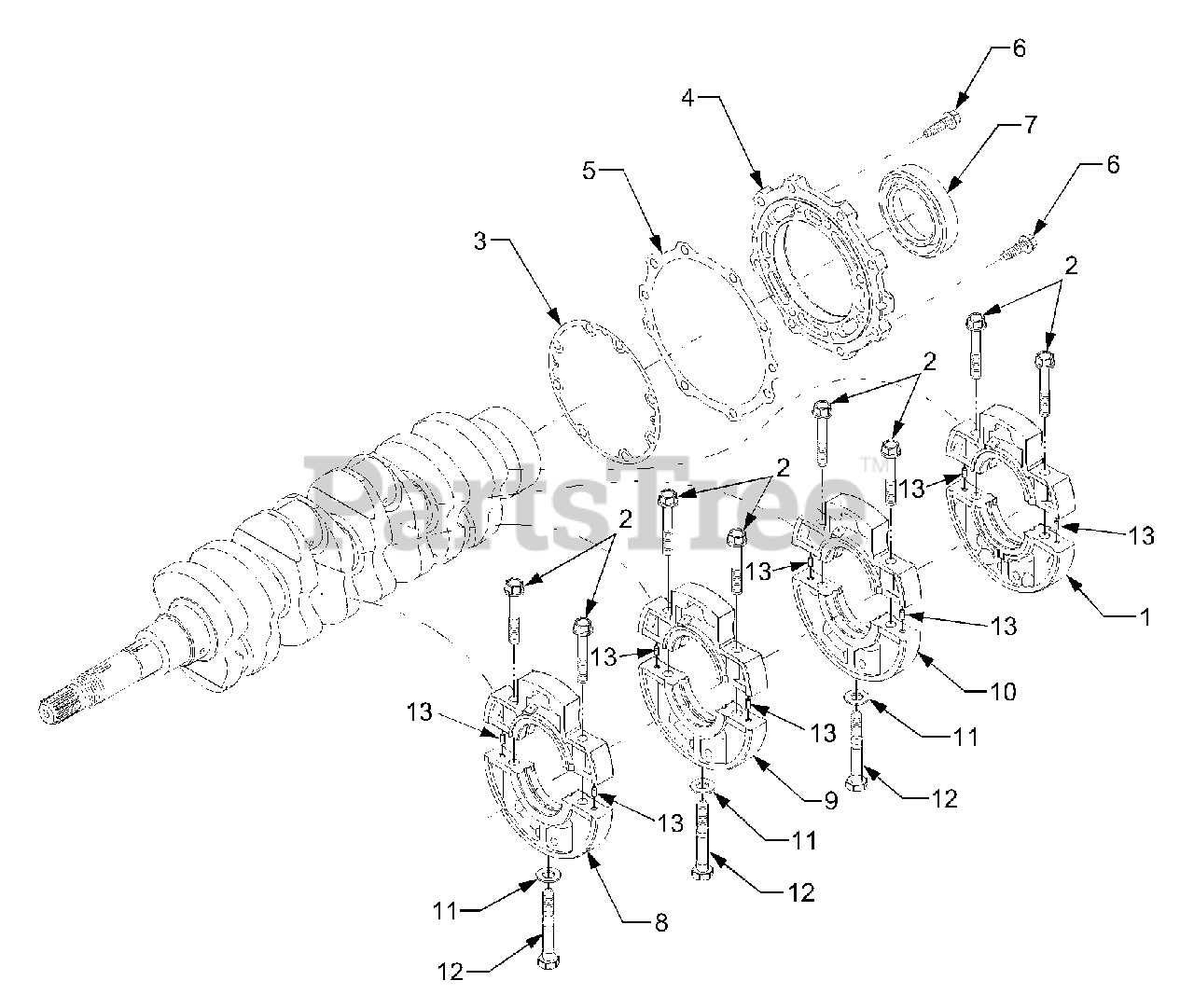

Main Bearing Case Parts Diagram

  • Title

1

Cub Cadet DD-E6300-A0033

Main Bearing Case Ass'y

Note: Includes Ref. Nos. 2 & 13

$

$

Not available

2

Cub Cadet DD-E6300-04542

Bolt 1, Bearing Case

$

$

Not available

3

Cub Cadet DD-E6300-04362

Gasket, Bearing Case
(Superseded to DD-E6300-04363)

$

$

Not available

4

Cub Cadet DD-E6300-04812

Cover, Main Bearing Case

$

$

Not available

5

Cub Cadet DD-E6300-04821

Gasket, Bearing Case
(Superseded to DD-E6300-04822)

$8.99

$

Usually ships in 3-6 days

0

6

Cub Cadet DD-01654-50830

Pin, Flange Bolt

$

$

Not available

7

Cub Cadet DD-E5500-04464

Seal, Oil

$27.99

$

Usually ships in 3-6 days

0

8

Cub Cadet DD-E6300-A0043

Main Bearing Case 1 Ass'y

Note: Includes Ref. Nos. 2 & 13

$

$

Not available

9

Cub Cadet DD-E6300-A0053

Main Bearing Case 2 Ass'y

Note: Includes Ref. Nos. 2 & 13

$

$

Not available

10

Cub Cadet DD-E6300-A0063

Main Bearing Case 3 Ass'y

Note: Includes Ref. Nos. 2 & 13

$

$

Not available

11

Cub Cadet DD-15521-94021

Washer

$

$

Not available

12

Cub Cadet DD-15291-04562

Bolt 2, Bearing Case

$

$

Not available

13

Cub Cadet DD-05012-00408

Pin, Straight

$

$

Not available
