846 (590-846-100) - Cub Cadet Auxiliary Valve Kit General Assembly Parts Diagram

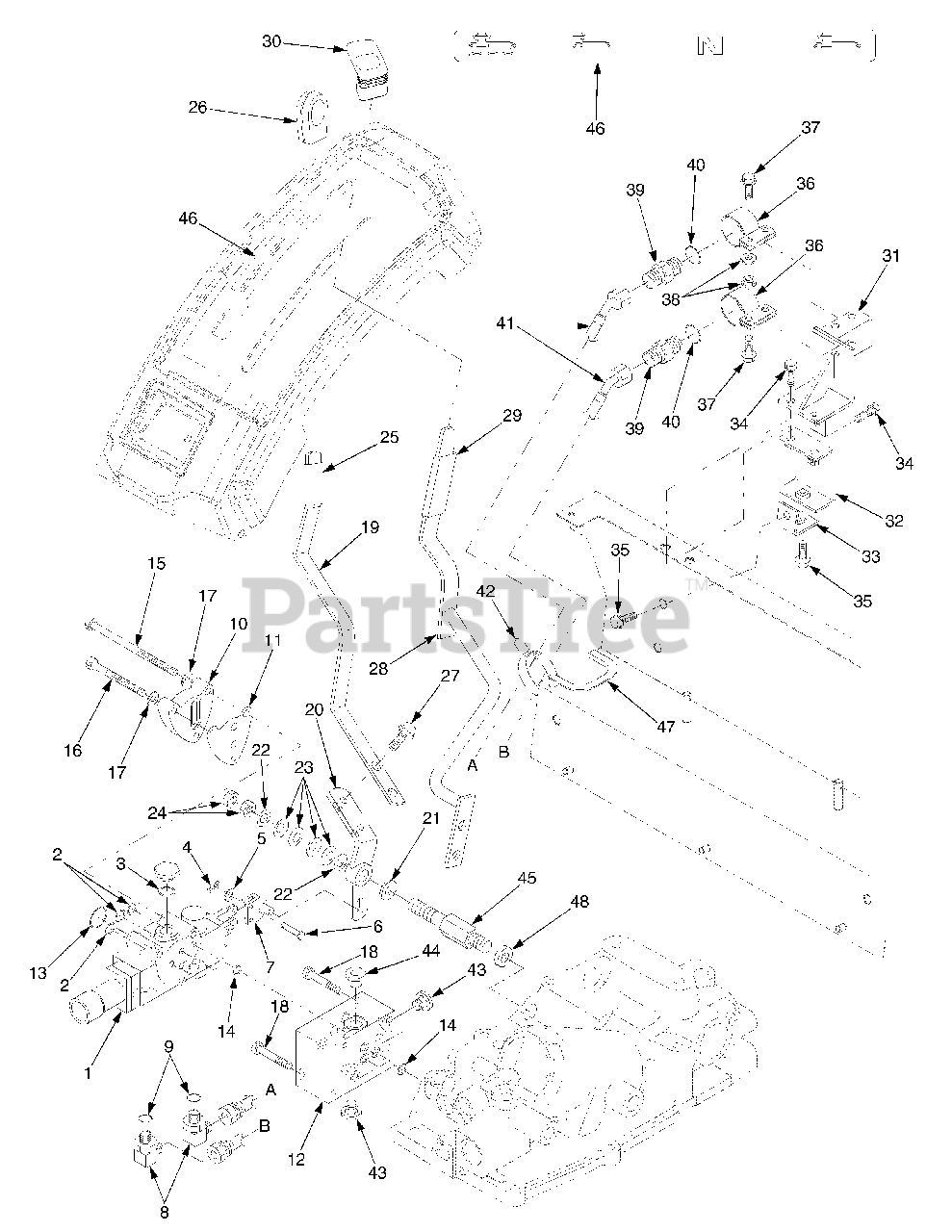

Auxiliary Valve Kit

General Assembly Parts Diagram

  • Title

1

Cub Cadet MA-19632482AG0

Sub Valve Body Assembly

Note: (Includes Ref. Nos. 1 thru 6)

$

$

Not available

2

Cub Cadet MA-08300100120

O-Ring
(Superseded to MA-08301100120)

$

$

Not available

3

Cub Cadet MA-08300100160

O-Ring

$

$

Not available

4

Cub Cadet MA-05200112008

Pin, Split

$

$

Not available

5

Cub Cadet MA-03500120512

Washer

$

$

Not available

6

Cub Cadet MA-11556501270

Pin, Clevis

$

$

Not available

7

Cub Cadet MA-19642483000

Arm

$

$

Not available

8

Cub Cadet MA-06313117130

Elbow 90

$

$

Not available

9

Cub Cadet MA-08301100140

O-Ring

$

$

Not available

10

Cub Cadet MA-10072448AG0

Cap

$

$

Not available

11

Cub Cadet MA-10072449000

Plate

$

$

Not available

12

Cub Cadet MA-12185451AG0

Block, Valve

$

$

Not available

13

Cub Cadet MA-08301100250

O-Ring

$5.99

$

Usually ships in 3-6 days

0

14

Cub Cadet MA-08301100101

O-Ring

$

$

Not available

15

Cub Cadet MA-A0540108140

Bolt

$

$

Not available

16

Cub Cadet MA-A0540108085

Bolt

$

$

Not available

17

Cub Cadet MA-A3600100802

Washer, Spring

$

$

Not available

18

Cub Cadet MA-A5440708060

Bolt

$

$

Not available

19

Cub Cadet MA-12185452AG0

Lever, Aux.

$

$

Not available

20

Cub Cadet MA-12185453000

Arm, Aux. Lever

$

$

Not available

21

Cub Cadet MA-19041264000

Lining, Brake

$

$

Not available

22

Cub Cadet MA-31212559000

Liner, Thrust
(Superseded to MA-36301208000)

$

$

Not available

23

Cub Cadet MA-03560001601

Spring Conical

$

$

Not available

24

Cub Cadet MA-A3010116002

Nut

$

$

Not available

25

Cub Cadet MA-10442476000

Tube, Shift Lever

$

$

Not available

26

Cub Cadet MA-10392491000

Grip, Range Lever

$

$

Not available

27

Cub Cadet MA-H1840108025

Bolt, w/Washer

$

$

Not available

28

Cub Cadet MA-12185455AG0

Lever P/C Position

$

$

Not available

29

Cub Cadet MA-10442475000

Tube, P/C Lever

$

$

Not available

30

Cub Cadet MA-10302444000

Grip

$

$

Not available

31

Cub Cadet MA-12185457AG0

Bracket, Coupler Clamp

$

$

Not available

32

Cub Cadet MA-12185458000

Bracket, Support

$

$

Not available

33

Cub Cadet MA-12185459000

Bracket, Angle

$

$

Not available

34

Cub Cadet MA-F1540108020

Bolt, w/Washer

$

$

Not available

35

Cub Cadet MA-H1840108016

Bolt, w/Washer

$

$

Not available

36

Cub Cadet MA-12185264000

Clamp, Coupler

$

$

Not available

37

Cub Cadet MA-H1540108020

Bolt, w/Washer

$3.49

$

Usually ships in 3-6 days

0

38

Cub Cadet MA-F3010108000

Nut, Flange

$2.49

$

In Stock, only 3 left!

0

39

Cub Cadet MA-12185461000

Fitting, Adapter

$

$

Not available

40

Cub Cadet MA-17805553200

O-Ring

$

$

Not available

41

Cub Cadet MA-12185463000

Hose A

$

$

Not available

42

Cub Cadet MA-00511070070

Band, Wire

$

$

Not available

43

Cub Cadet MA-HA430102000

Plug

$

$

Not available

44

Cub Cadet MA-HA430103000

Plug

$

$

Not available

45

Cub Cadet MA-12185471000

Shaft, Aux. Lever

$

$

Not available

46

Cub Cadet MA-12185475000

Label, Aux. Valve

$

$

Not available

47

Cub Cadet MA-35259242800

Seal A

$

$

Not available

48

Cub Cadet MA-19803205000

Washer

$

$

Not available
