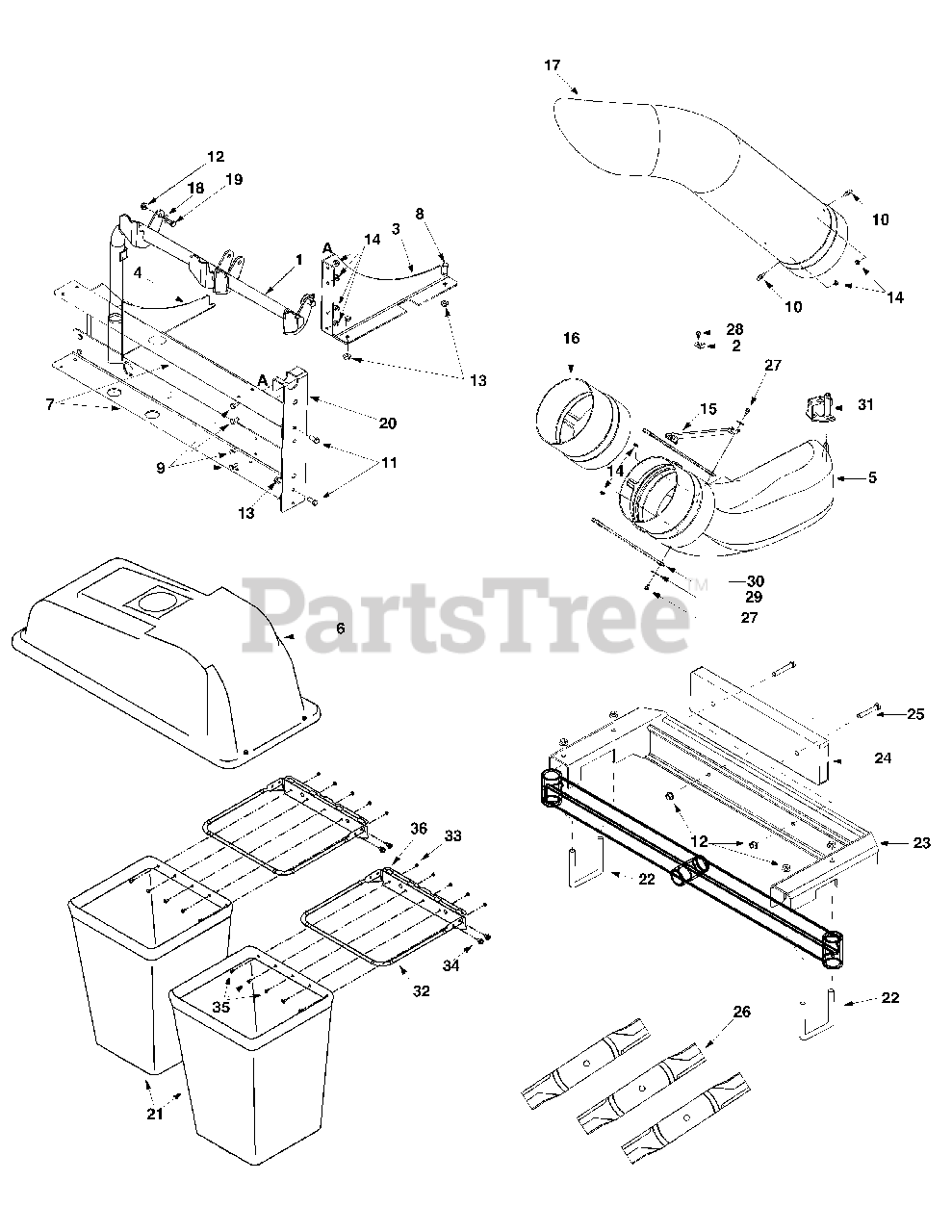

847 (590-847-100) - Cub Cadet Twin Rear Bagger General Assembly Parts Diagram

Twin Rear Bagger

General Assembly Parts Diagram

  • Title

1

Cub Cadet 16592

Support Assem. Catcher Cover
(Superseded to 16592-0637)

Variations

Cub Cadet 16592-0637

Support Tube Assembly, Black - POWDER BLACK (0637)

$205.99

$

Usually ships in 3-6 days

0

$205.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 16606

Retainer Hook Bracket
(Superseded to 96606)

$7.99

$

In Stock, only 2 left!

0

3

Cub Cadet 603-04082

Mounting Assembly: RH
(Superseded to 603-04082-0637)

Variations

Cub Cadet 603-04082-0637

SUPPORT-RH MOUNTIN - POWDER BLACK (0637)

$113.99

$

Usually ships in 3-6 days

0

$113.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-04083

Mounting Assembly: LH
(Superseded to 603-04083-0637)

Variations

Cub Cadet 603-04083-0637

SUPPORT-LH MOUNTIN - POWDER BLACK (0637)

$113.99

$

Usually ships in 3-6 days

0

$113.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 631-0221A

Elbow Chute Assembly

$276.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 664-04017

Grass Catcher Cover

$

$

Not available

7

Cub Cadet 703-05195

Hanger Bracket
(Superseded to 703-05195-0637)

Variations

Cub Cadet 703-05195-0637

BRACKET-HANGER BLK - POWDER BLACK (0637)

$117.99

$

Usually ships in 3-6 days

0

$117.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0176

Hex Bolt 5/16-18 x 2.75"

$4.99

$

In Stock, only 2 left!

0

9

Cub Cadet 710-0751

SCREW 1/4-20 x .620 GR5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 711-04069

Grass Catcher Pin 1/4-20
(Superseded to 911-04069)

$8.99

$

In Stock, Qty 18

0

11

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 7120431

HEX LOCK NUT
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3027

Hex Flange Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 723-0476

Retainer Strap Assembly

$35.99

$

In Stock, only 2 left!

0

16

Cub Cadet 731-05277

8" Extension Chute

$

$

Not available

17

Cub Cadet 731-0926B

8" Catcher Tube

$150.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0253

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 738-0380

Shoulder Screw 3/8-16

$8.49

$

In Stock, Qty 20+

0

20

Cub Cadet 783-0601

Support Bracket
(Superseded to 783-0601-0637)

Variations

Cub Cadet 783-0601-0637

Support Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 764-0221

Grass Bag
(Superseded to 964-0221)

$77.99

$

In Stock, Qty 20+

0

22

Cub Cadet 710-04170

U Bolt 3/8-16 x 1.50"

$23.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 603-04087

Weight Bar Bracket
(Superseded to 603-04087-0637)

Variations

Cub Cadet 603-04087-0637

BRACKET ASSY-WEIGHT - POWDER BLACK (0637)

$

$

Not available

$

$

24

Cub Cadet 719-04069

Weight Bar
(Superseded to 02002426)

$178.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 710-3011

Hex Bolt 3/8-16 x 2.25"

$7.49

$

In Stock, Qty 20+

0

26

Cub Cadet 02000138

Blade 17.9 x .756

$28.99

$

In Stock, Qty 13

0

27

Cub Cadet 710-0597

SCREW 1/4-20 X1.00 GR5

$4.49

$

In Stock, Qty 11

0

28

Cub Cadet 710-0599

Hex Screw 1/4-20

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 736-3092

Flat Washer

$4.49

$

In Stock, only 4 left!

0

30

Cub Cadet 723-04009A

Chute Strap

$12.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 683-0617

Chute Stop Assembly Bracket
(Superseded to 683-0617A-0637)

Variations

Cub Cadet 683-0617-0637

Chute Deflector Stop, Black - POWDER BLACK (0637)

$68.99

$

In Stock, only 2 left!

0

Cub Cadet 683-0617-0638

Chute Deflector Stop, Black - MTD/TROY-BILT RED (0638)

$68.99

$

In Stock, only 2 left!

0

Cub Cadet 683-0617-0650

Chute Deflector Stop, Black - RED METALLIC (0650)

$68.99

$

In Stock, only 2 left!

0

Cub Cadet 683-0617-0665

Chute Deflector Stop, Black - YARDMAN GREEN (0665)

$68.99

$

In Stock, only 2 left!

0

Cub Cadet 683-0617-0716

Chute Deflector Stop, Black - CUB YELLOW-99 (0716)

$68.99

$

In Stock, only 2 left!

0

$68.99

$

In Stock, only 2 left!

0

32

Cub Cadet 749-0701A

Grassbag Frame
(Superseded to 749-0701A-0637)

Variations

Cub Cadet 749-0701A-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 712-0272

Hex Nut

$4.49

$

In Stock, only 2 left!

0

34

Cub Cadet 710-0604A

Screw

$4.99

$

In Stock, Qty 13

0

35

Cub Cadet 710-0473

Machine Screw

$4.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 16591A

Bag Frame Hangar Bracket
(Superseded to 16591A-0637)

Variations

Cub Cadet 16591A-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0
