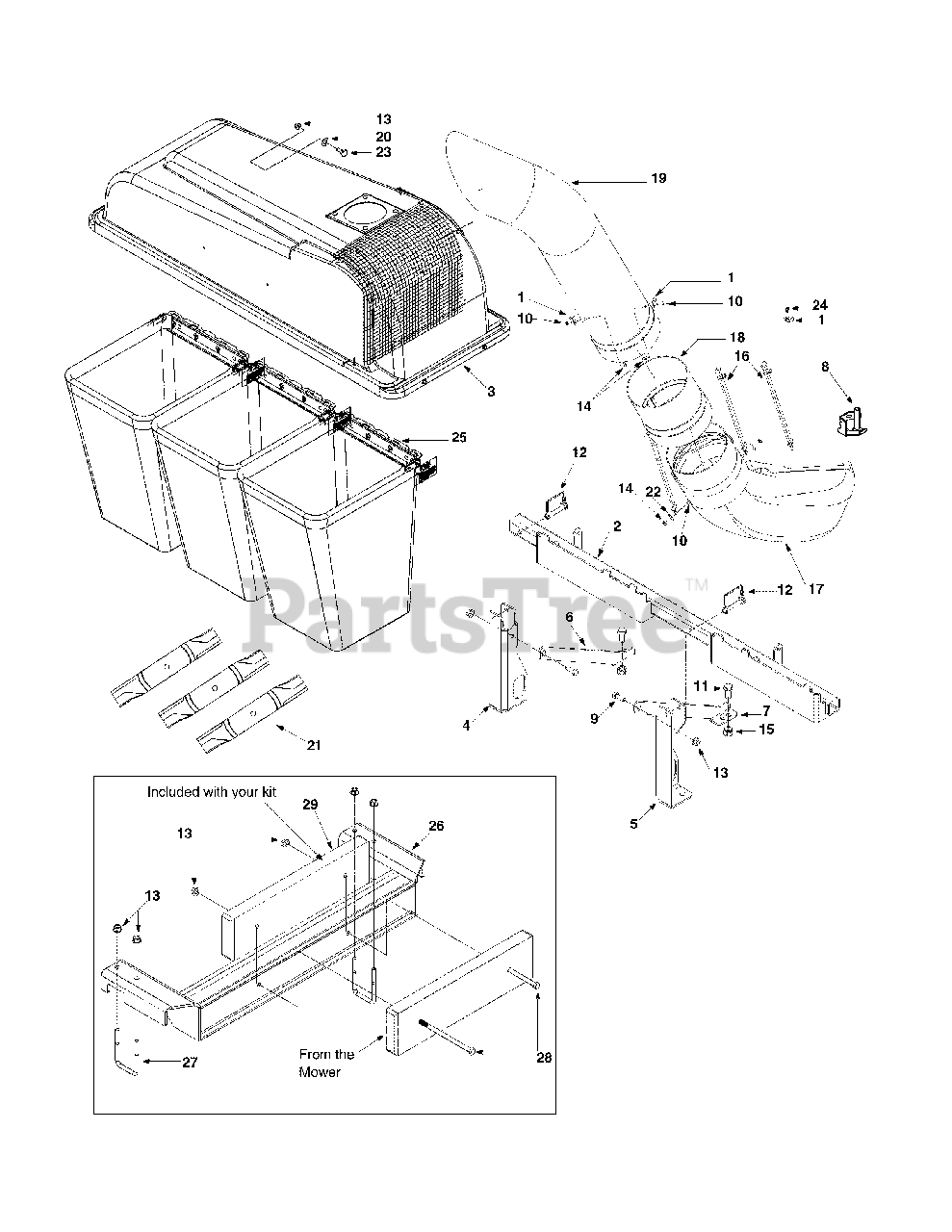

848 (590-848-150) - Cub Cadet Rear Triple Bagger General Assembly Parts Diagram

Rear Triple Bagger

General Assembly Parts Diagram

  • Title

1

Cub Cadet 96606

Retainer Hook

$7.99

$

In Stock, only 2 left!

0

2

Cub Cadet 603-04098-0637

Catcher Support Bracket

$

$

Not available

3

Cub Cadet 664-04018

Catcher Cover (see assembly)

Note: NLA

$

$

Not available

4

Cub Cadet 703-05237-0637

Upright Mounting Bracket LH

$77.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-05239-0637

Upright Mounting Bracket RH

$

$

Not available

6

Cub Cadet 703-05240-0637

Upright Gusset LH

$

$

Not available

7

Cub Cadet 703-05241-0637

Upright Gusset RH

$

$

Not available

8

Cub Cadet 683-0617

Chute Stop Assembly Bracket
(Superseded to 683-0617A-0637)

Variations

Cub Cadet 683-0617-0637

Chute Deflector Stop, Black - POWDER BLACK (0637)

$68.99

$

In Stock, only 2 left!

0

Cub Cadet 683-0617-0638

Chute Deflector Stop, Black - MTD/TROY-BILT RED (0638)

$68.99

$

In Stock, only 2 left!

0

Cub Cadet 683-0617-0650

Chute Deflector Stop, Black - RED METALLIC (0650)

$68.99

$

In Stock, only 2 left!

0

Cub Cadet 683-0617-0665

Chute Deflector Stop, Black - YARDMAN GREEN (0665)

$68.99

$

In Stock, only 2 left!

0

Cub Cadet 683-0617-0716

Chute Deflector Stop, Black - CUB YELLOW-99 (0716)

$68.99

$

In Stock, only 2 left!

0

$68.99

$

In Stock, only 2 left!

0

9

Cub Cadet 710-0514

Hex Bolt 3/8-16 x 1.0"

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0751

Hex Bolt 1/4-20 x 0.620"

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3131

Hex Bolt 1/2-13 x 1.0"

$5.99

$

In Stock, only 1 left!

0

12

Cub Cadet 911-04160

Lock Pin

$25.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 912-0431

Top Lock Flange Nut 3/8-16

$5.49

$

In Stock, Qty 20+

0

14

Cub Cadet 912-3027

Flange Lock Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3083

Lock Nut 1/2-13

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 723-0476

Chute Strap

$35.99

$

In Stock, only 1 left!

0

17

Cub Cadet 631-0221A

Chute Elbow

$276.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 731-04423

Extension Tube

$

$

Not available

19

Cub Cadet 731-0926B

Chute Tube

$150.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 936-0253

Belleville Washer
(Superseded to 736-0253)

$

$

Not available

21

Cub Cadet 02000138

Blades

$28.99

$

In Stock, Qty 13

0

22

Cub Cadet 736-3092

Flat Washer

$4.49

$

In Stock, only 4 left!

0

23

Cub Cadet 938-0380

Shoulder Screw 3/8-16
(Superseded to 738-0380)

$8.49

$

In Stock, Qty 20+

0

24

Cub Cadet 710-0599

Hex Screw 1/4-20

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet N/A

Grass Bag

Note: (Refer to assembly breakdown)

$

$

Currently unavailable

26

Cub Cadet 903-04307-0637

Weight Bar Bracket

$

$

Not available

27

Cub Cadet 710-04170

U Bolt 3/8-16 x 1.5"

$23.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 710-3086

Hex Bolt 3/8-16 x 6.25"

$

$

Not available

29

Cub Cadet 02002426

Weight Bar

Variations

Cub Cadet 02002426-0637

BAR- WEIGHT CAT - POWDER BLACK (0637)

$196.99

$

Usually ships in 3-6 days

0

$178.99

$

Usually ships in 3-6 days

0
