848 E (122-848E100) - Cub Cadet Walk-Behind Mower Engine (1992) B&S 5 HP Carburetor Ass'y Parts Diagram

Walk-Behind Mower Engine

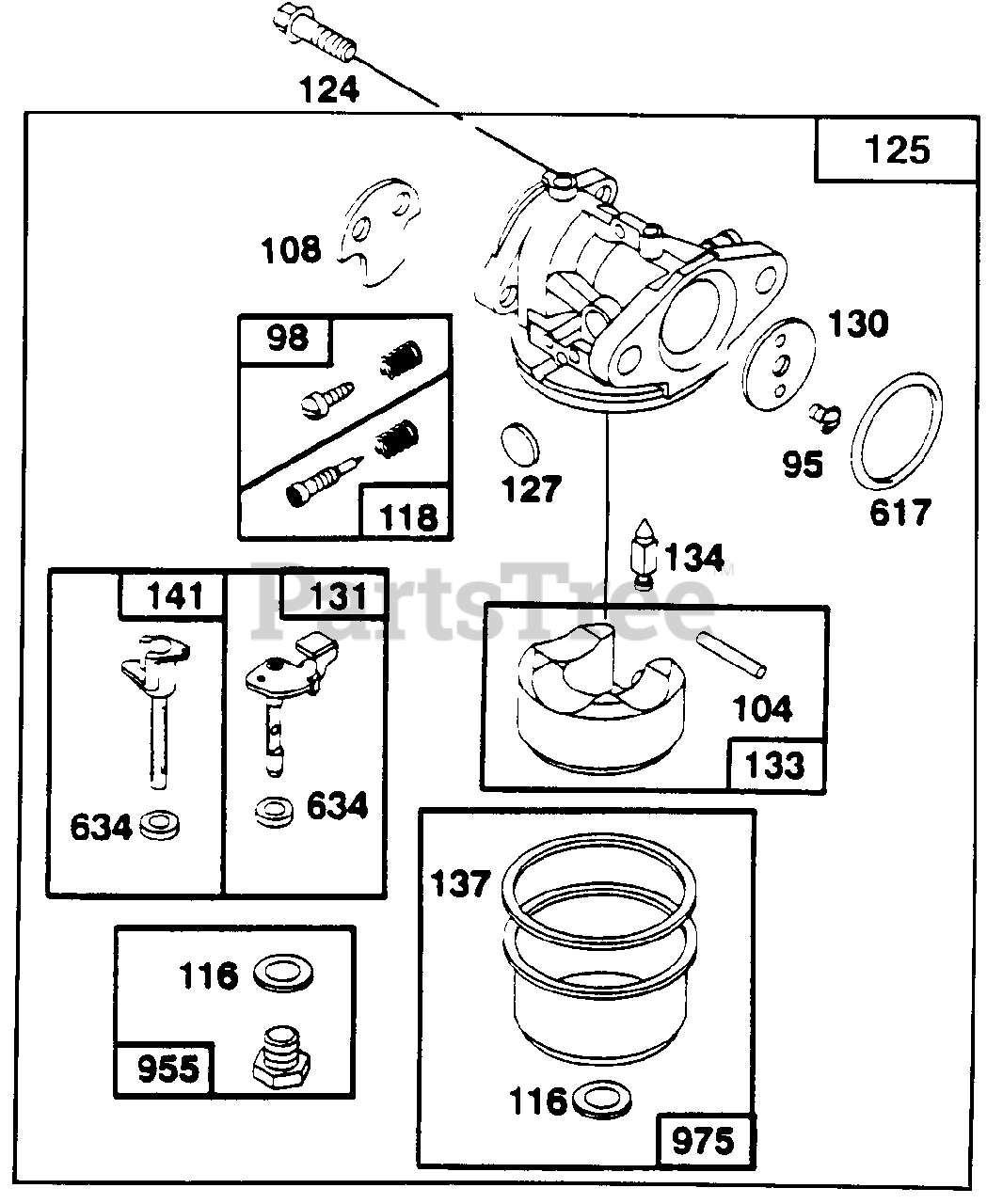

B&S 5 HP Carburetor Ass'y Parts Diagram

  • Title

95

Cub Cadet BS-94098

Screw-Throttle Valve Mounting Sem
(Superseded to BS-691636)

$4.49

$

In Stock, Qty 12

0

98

Cub Cadet BS-398185

Screw-Idle Adjustment

$8.49

$

Usually ships in 2-12 days

0

104

Cub Cadet BS-231371

Pin-Float Hinge
(Superseded to BS-797622)

Note: Included in Carburetor Gasket Set--Part No. BS-493762.

$4.49

$

In Stock, Qty 9

0

108

Cub Cadet BS-223471

Valve-Choke
(Superseded to BS-691182)

$10.99

$

Usually ships in 2-12 days

0

116

Gasket-Sealing

Note: (Sold in Kit Only).

$

$

Not available

118

Cub Cadet BS-493765

Valve and Spring-Needle

Note: Included in Carburetor Gasket Set--Part No. BS-493762.

$15.99

$

Usually ships in 2-12 days

0

124

Cub Cadet BS-94525

Screw-Carburetor Mounting
(Superseded to BS-692524)

$

$

Not available

125

Cub Cadet BS-494217

Carburetor Assembly

$

$

Not available

127

Plug-Welch

Note: (Sold in Kit Only).

$

$

Not available

130

Cub Cadet BS-223470

Valve-Throttle

$

$

Not available

131

Cub Cadet BS-493267

Shaft and Lever- Throttle

$18.99

$

In Stock, only 4 left!

0

133

Cub Cadet BS-398187

Float Assembly-Carburetor

$10.99

$

In Stock, Qty 6

0

134

Cub Cadet BS-398188

Valve-Inlet

Note: (Includes Seat)

$6.99

$

In Stock, Qty 16

0

137

Gasket-Bowl

Note: (Sold in Kit Only).

$

$

Not available

141

Cub Cadet BS-494218

Shaft-Choke

$15.99

$

In Stock, only 2 left!

0

617

Cub Cadet BS-270344

Seal-Fuel Intake Tube
(Superseded to BS-270344S)

Note: Included in Carburetor Overhaul Kit--Part No. BS-490937. Included in Carbur

$3.49

$

In Stock, Qty 20+

0

634

Washer-Shaft (Sold in Kit Only).

Note: Included in Carburetor Overhaul Kit--Part No. BS-490937.

$

$

Not available

955

Cub Cadet BS-493869

Screw-Fuel Bowl (Std.)

Note: Included in Carburetor Gasket Set--Part No. BS-493762.

$21.99

$

In Stock, only 1 left!

0

975

Cub Cadet BS-493640

Bowl Assembly-Carburetor
(Superseded to BS-796611)

$7.49

$

Usually ships in 2-12 days

0
