849 (590-849-150) - Cub Cadet 48" Mulch Kit General Assembly Parts Diagram

48" Mulch Kit

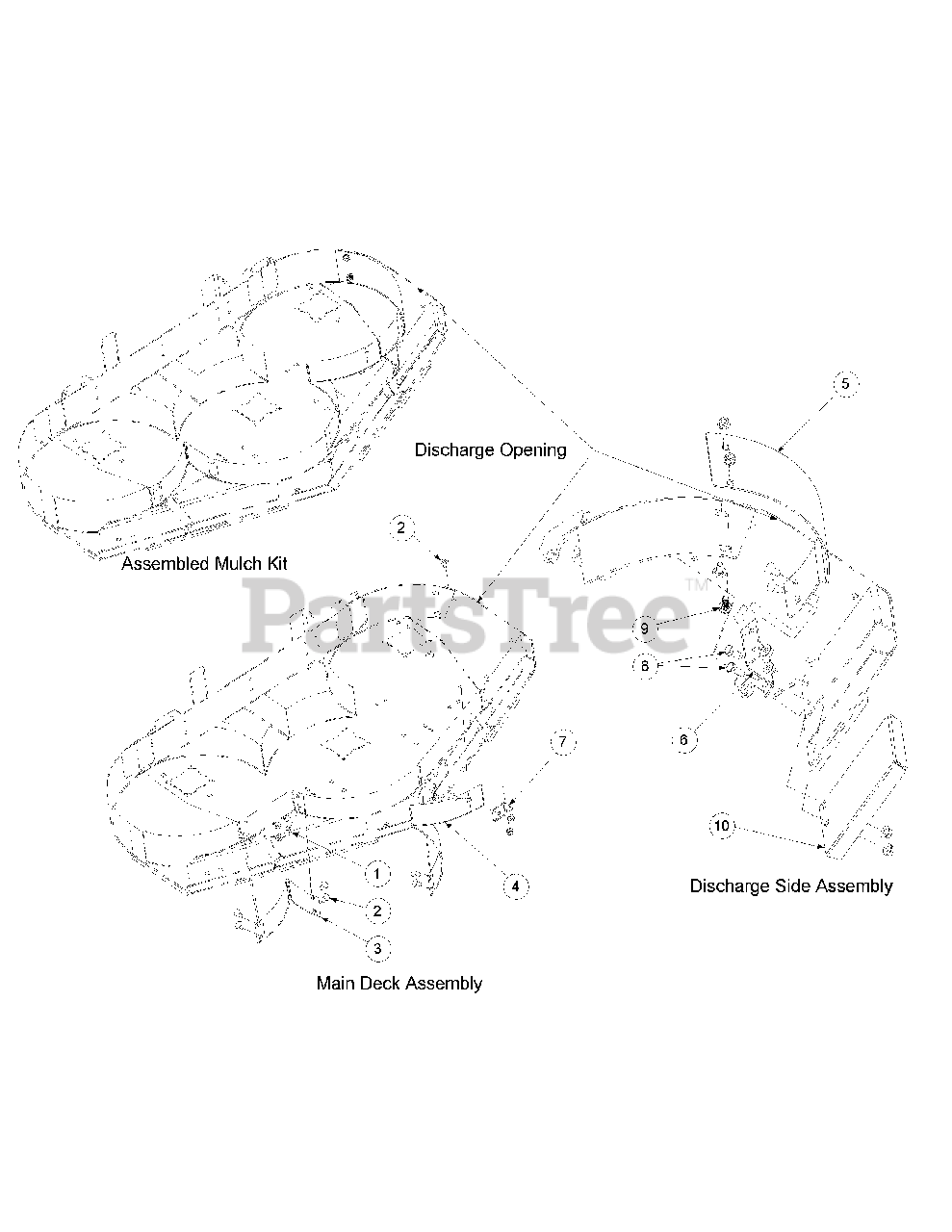

General Assembly Parts Diagram

  • Title
1

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$3.41

$

In Stock, Qty 20+

0

2

Cub Cadet 01000372

Carriage Bolt, 3/8-16 x .75
(Superseded to 710-3178)

$3.59

$

In Stock, Qty 20+

0

3

Cub Cadet 02000882

Mulching Baffle, LH

$

$

Not available

4

Cub Cadet 02000883

Mulching Baffle, Center

$

$

Not available

5

Cub Cadet 02000881

Mulching Baffle, RH

$65.18

$

Usually ships in 5-10 days

0

6

Cub Cadet 02000879

Mulching Bracket, RH

$

$

Not available

7

Cub Cadet 02000880

Mulching Bracket, Center

$31.37

$

Usually ships in 5-10 days

0

8

Cub Cadet 01000368

HHCS, 3/8-16 x .88
(Superseded to 710-3001)

$5.71

$

In Stock, Qty 18

0

9

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1.0

$4.40

$

In Stock, Qty 13

0

10

Cub Cadet 02001480

Mulch Plug Baffle

$31.68

$

Usually ships in 5-10 days

0
