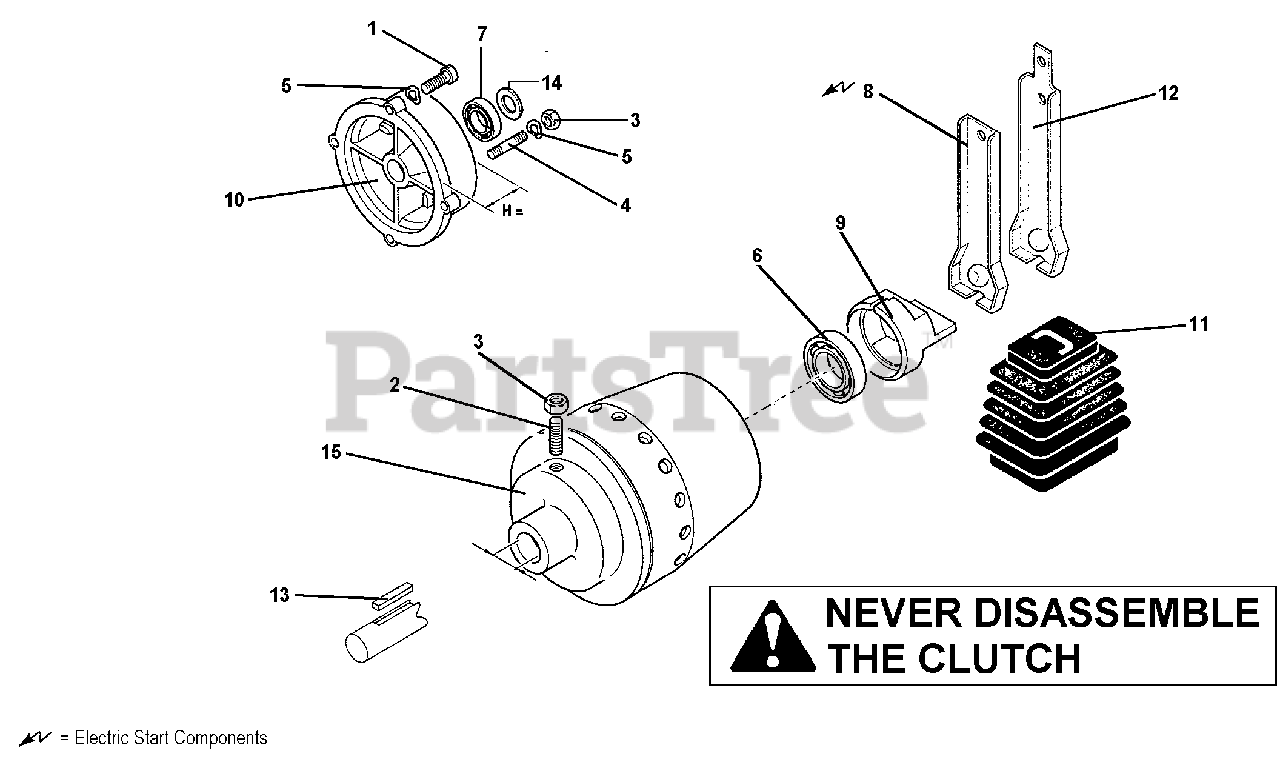

850 - BCS America Two-Wheeled Tractor Clutch (SN: 6664 & Above) Parts Diagram

Two-Wheeled Tractor

Clutch (SN: 6664 & Above) Parts Diagram

  • Title

1

BCS America 311.00015

SCREW 3/8X1"

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 311.00786

SCREW M8X30

$1.49

$

In Stock, Qty 5

0

3

BCS America 312.11080

NUT, M8

$0.99

$

In Stock, Qty 9

0

4

BCS America 313.12088

STUD,M8X40X14X14

$8.49

$

Usually ships in 5-8 days

0

5

BCS America 314.23084

WASHER, WAVE

$0.99

$

In Stock, Qty 15

0

6

BCS America 371.12173

BEARING,M17X40X12

$10.99

$

In Stock, only 1 left!

0

7

BCS America 371.12233

BEARING,M30X55X15

$24.99

$

Usually ships in 5-8 days

0

8

BCS America 509.56262

CLUTCH LEVER, ELECTRIC START

$58.99

$

Usually ships in 5-8 days

0

9

BCS America 524.47896

CONE PUSHER

$

$

Not available

10

BCS America 532.47468

FLANGE

$114.99

$

Usually ships in 5-8 days

0

11

BCS America 551.57609

BOOT, ELECTRIC START

$32.99

$

Usually ships in 5-8 days

0

12

BCS America 561.47845

CLUTCH LEVER, RECOIL START

$31.99

$

In Stock, only 1 left!

0

13

BCS America 563.49782

KEY WOODRUFF

$10.99

$

Usually ships in 5-8 days

0

14

BCS America 563.47484

WASHER

$2.99

$

Usually ships in 5-8 days

0

15

BCS America 592.56257

CLUTCH, 12HP KOHLER CS PRO

$

$

Not available
