850 - BCS America Two-Wheeled Tractor Gear Box (SN: 1000 - 6663) Parts Diagram

Two-Wheeled Tractor

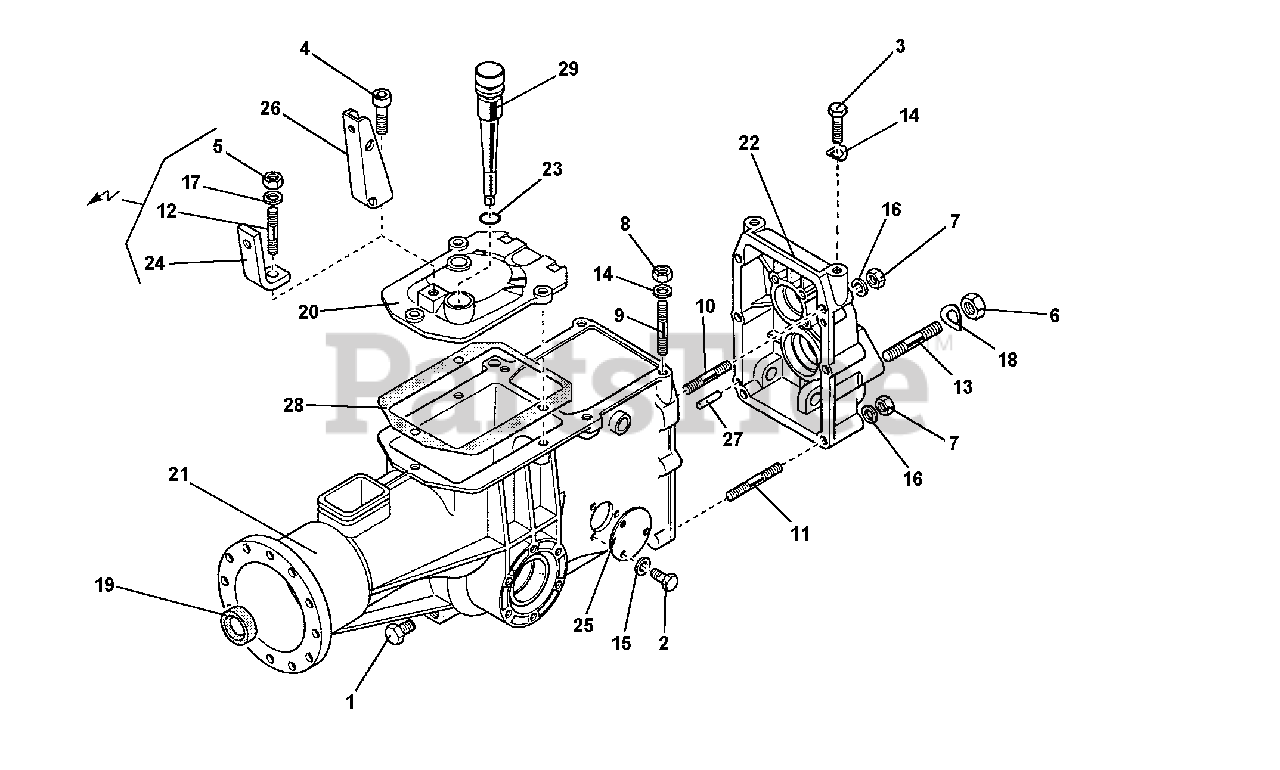

Gear Box (SN: 1000 - 6663) Parts Diagram

  • Title

1

BCS America 300.40001

PLUG

$5.49

$

In Stock, only 4 left!

0

2

BCS America 31111090

SCREW M6X10

$1.49

$

Usually ships in 5-8 days

0

3

BCS America 31112150

SCREW M8X20

$1.49

$

In Stock, only 2 left!

0

4

BCS America 311.52103

SCREW M10X25

$1.99

$

Usually ships in 5-8 days

0

5

BCS America 31211100

NUT, M10

$1.49

$

In Stock, only 2 left!

0

6

BCS America 312.21121

NUT, M12X1.25

$1.99

$

In Stock, only 4 left!

0

7

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 10

0

8

BCS America 312.41085

NUT, M8

$1.99

$

Usually ships in 5-8 days

0

9

BCS America 313.12082

SUTD M8X38X14X20

$1.99

$

In Stock, only 3 left!

0

10

BCS America 313.12084

STUD, M8X58X16X16

$2.49

$

Usually ships in 5-8 days

0

11

BCS America 313.12094

STUD, M8X68X16X16

$2.49

$

Usually ships in 5-8 days

0

12

BCS America 313.12101

STUD, M10X37X19X15

$7.99

$

Usually ships in 5-8 days

0

13

BCS America 313.12125

STUD, M12X1.25X12X52

$4.49

$

In Stock, Qty 11

0

14

BCS America 314.21083

SUPER WASHER

$1.49

$

In Stock, Qty 10

0

15

BCS America 314.22064

WASHER, LOCK 6.4

$0.99

$

Usually ships in 5-8 days

0

16

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 15

0

17

BCS America 314.23105

WASHER, LOCK 10.4

$1.49

$

In Stock, only 3 left!

0

18

BCS America 31423130

WASHER, LOCK 13.4

$1.49

$

In Stock, only 2 left!

0

19

BCS America 38211500

OIL SEAL

$8.49

$

Usually ships in 5-8 days

0

20

BCS America 531.43875

COVER

$85.99

$

In Stock, only 1 left!

0

21

BCS America 531.56326

GEAR BOX

$708.99

$

Usually ships in 5-8 days

0

22

BCS America 531.56332

REAR COVER

$163.99

$

In Stock, only 1 left!

0

23

BCS America 551.02678

"O" RING

$1.49

$

In Stock, only 2 left!

0

24

BCS America 561.43878

CLUTCH BRACKET

$33.99

$

Usually ships in 5-8 days

0

25

BCS America 56147520

SIDE COVER

$11.99

$

Usually ships in 5-8 days

0

26

BCS America 561.47923

CLUTCH BRACKET

$32.99

$

Usually ships in 5-8 days

0

27

BCS America 580.43053

PARALLEL PIN

$1.49

$

Usually ships in 5-8 days

0

28

BCS America 580.43117

GASKET, COVER

$2.99

$

In Stock, only 3 left!

0

29

BCS America 590.15425

DIP STICK

$25.99

$

In Stock, only 1 left!

0
