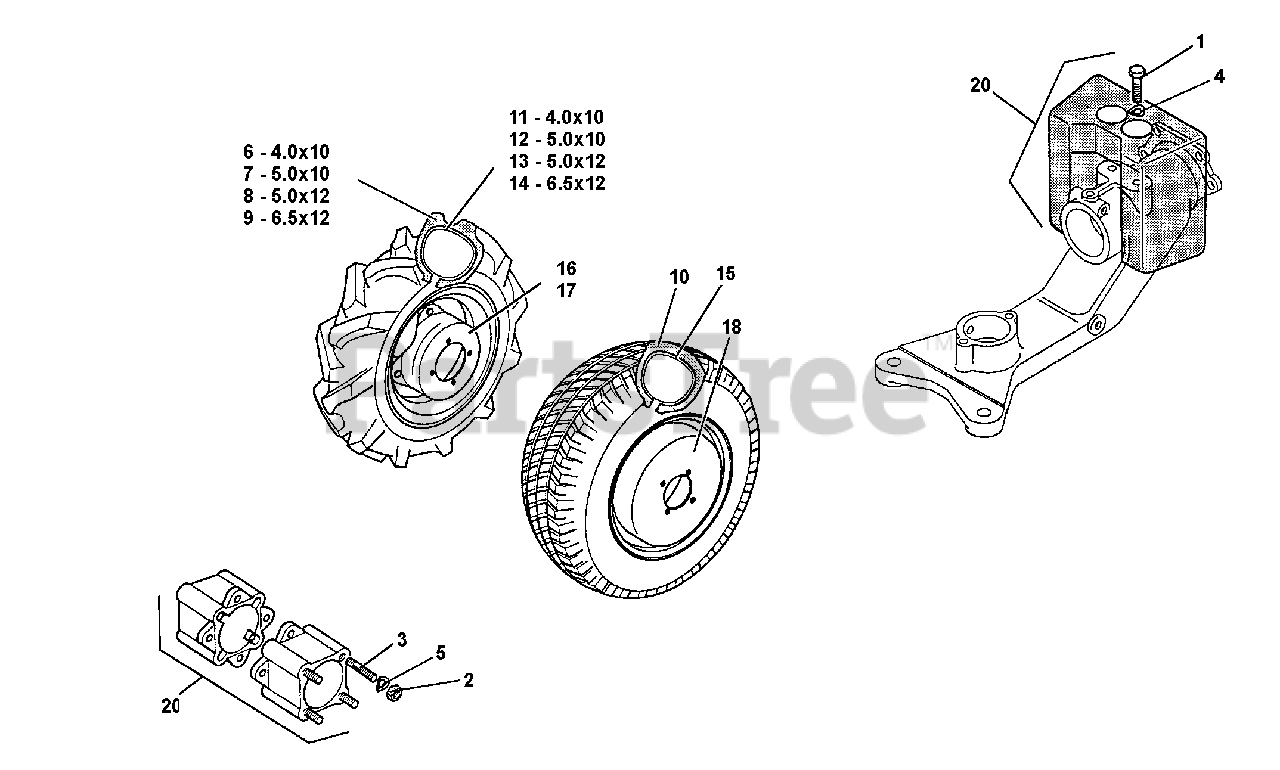

850 - BCS America Two-Wheeled Tractor Wheels (SN: 1000 & Above) Parts Diagram

Two-Wheeled Tractor

Wheels (SN: 1000 & Above) Parts Diagram

  • Title

1

BCS America 311.12151

SCREW, M8X25

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 31211100

NUT, M10

$1.49

$

In Stock, only 2 left!

0

3

BCS America 313.12102

STUD,M10X40X22X14

$2.49

$

In Stock, only 2 left!

0

4

BCS America 314.23084

WASHER, M8.4

$0.99

$

In Stock, Qty 15

0

5

BCS America 314.23105

WASHER, LOCK, M10.5

$1.49

$

In Stock, only 3 left!

0

6

BCS America 39114010

TIRE, TRACTOR, 4.00X10

$162.99

$

In Stock, only 2 left!

0

7

BCS America 39115010

TIRE, TRACTOR, 5.00X10

$208.99

$

Usually ships in 5-8 days

0

8

BCS America 391.15012

TIRE, TRACTOR, 5.00X12

$227.99

$

Usually ships in 5-8 days

0

9

BCS America 391.16018

TIRE, TRACTOR, 6.50X12

$255.99

$

Usually ships in 5-8 days

0

10

BCS America 39118020

TIRE, TURF, 20X8.00-10

$520.99

$

Usually ships in 5-8 days

0

11

BCS America 39414010

TUBE, 4.00X10
(Superseded to 39415010)

$39.99

$

Usually ships in 5-8 days

0

12

BCS America 39415010

TUBE, 5.00X10

$39.99

$

Usually ships in 5-8 days

0

13

BCS America 394.15012

TUBE, 5.00X12

$

$

Currently unavailable

14

BCS America 394.16018

TUBE, 6.50X12

$58.99

$

Usually ships in 5-8 days

0

15

BCS America 39418020

TUBE, 20X8.00-10

$

$

Not available

16

BCS America 58048330

RIM, 4.0X10 & 5.0X10

$219.99

$

Usually ships in 5-8 days

0

17

BCS America 580.44804

RIM, 5.00X12 & 6.5X12

$250.99

$

Usually ships in 5-8 days

0

18

BCS America 580.48331

RIM 6.0X10

$

$

Currently unavailable

19

BCS America 922.43685

WHEEL EXTENSIONS, 5" PAIR

$67.50

$

In Stock, only 1 left!

0

20

BCS America 922.48923

CUTTER BAR WEIGHT, 26#

$

$

Currently unavailable
