850001 - Gravely 4 in 1 Bucket (SN: 000101 & Above) 4 N 1 Bucket Parts Diagram

4 in 1 Bucket

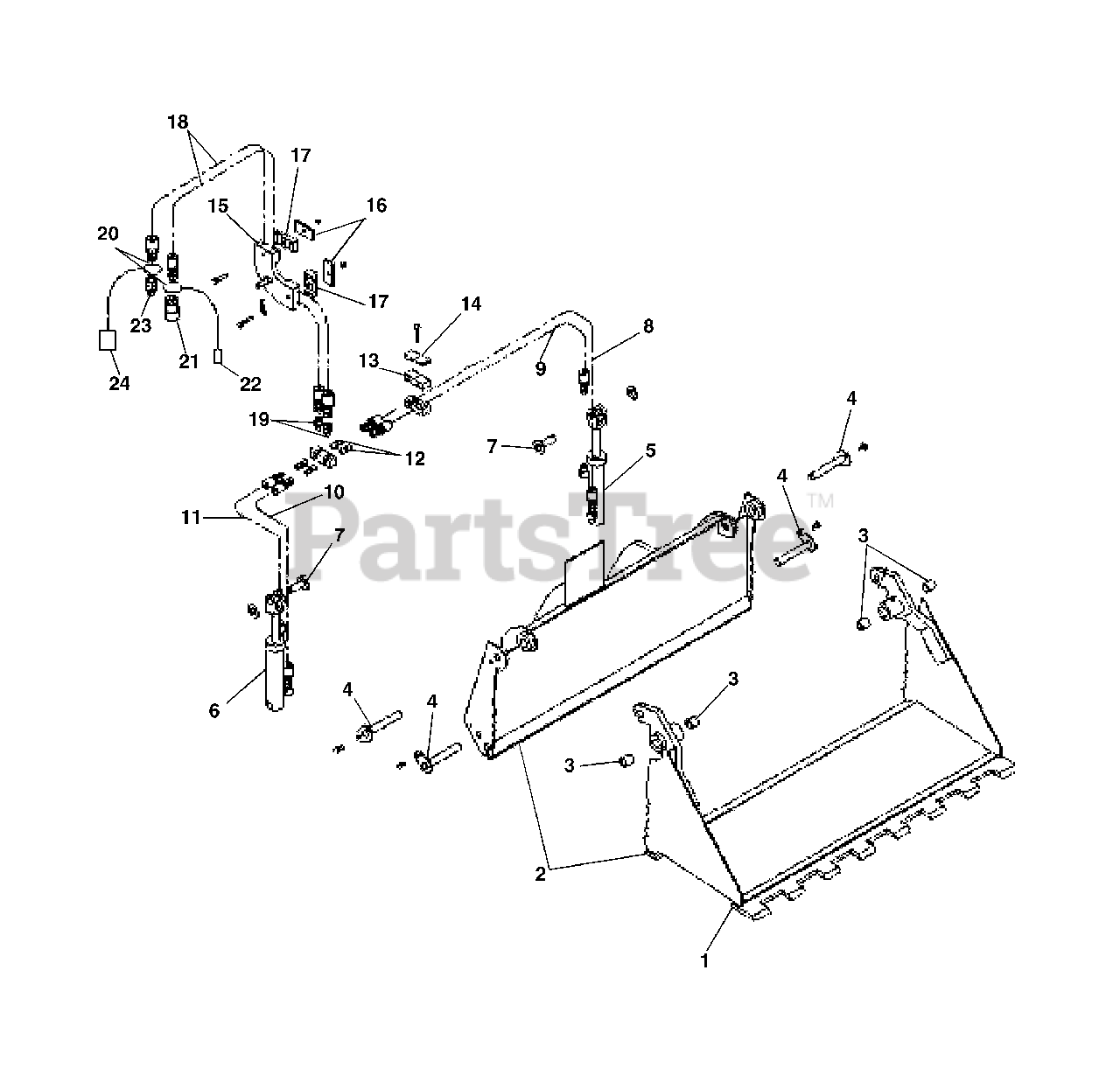

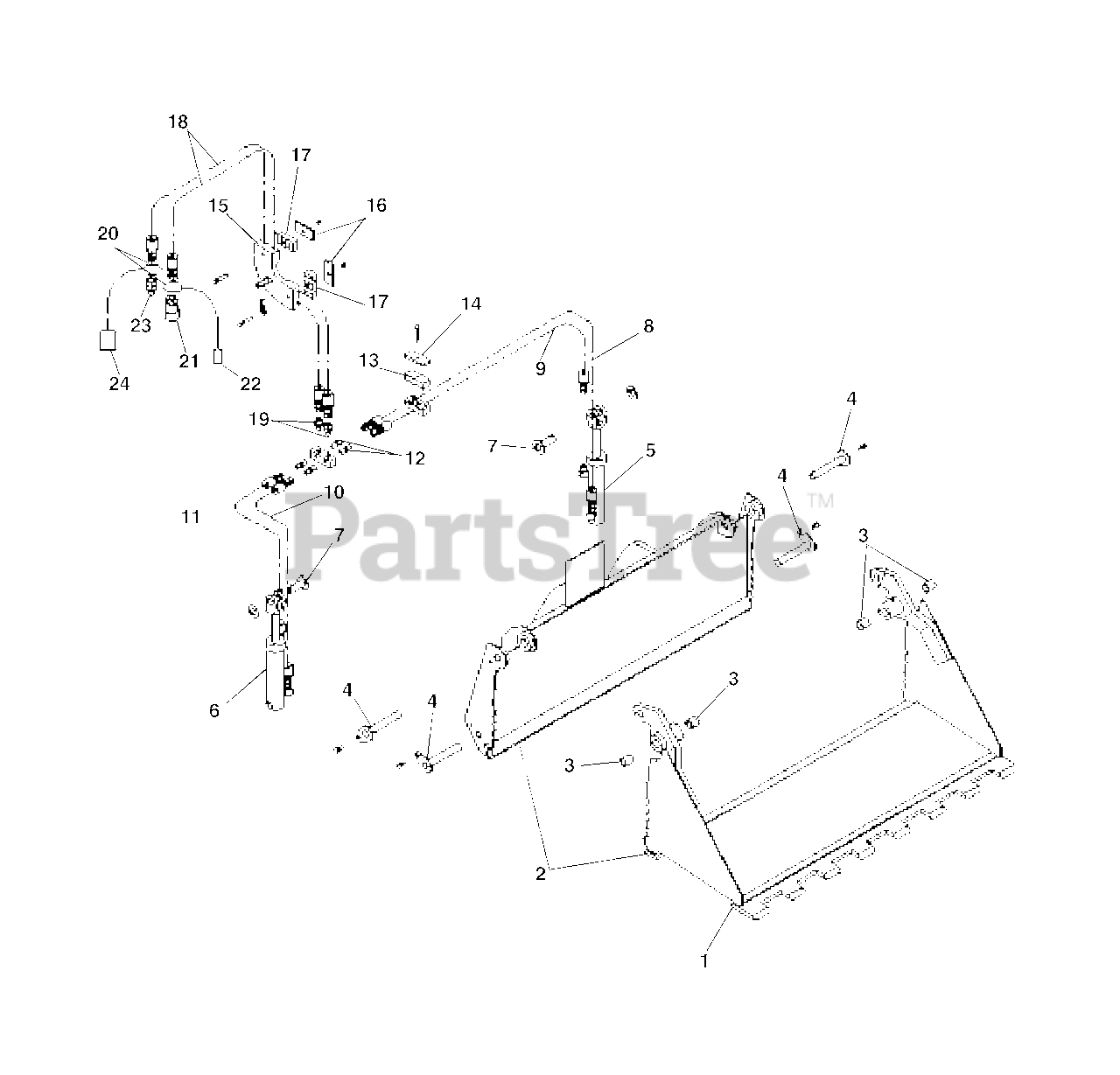

4 N 1 Bucket Parts Diagram

  • Title

1

Gravely 05033303

BAR, TOOTH

$

$

Not available

2

Gravely 05060200

CUTTING EDGE, BOTTOM

$

$

Not available

3

Gravely 05533700

BUSHING

$

$

Not available

4

Gravely 05059651

PIN, BUCKET PIVOT

$

$

Not available

5

Gravely 05063400

CYLINDER, 4N1 BUCKET LH

$

$

Not available

6

Gravely 05063500

CYLINDER, 4N1 BUCKET RH

$

$

Not available

7

Gravely 05059751

PIN, CYLINDER TOP

$

$

Not available

8

Gravely 05059800

HOSE, HYD .38-34-4K F6J0-F6J0

$

$

Not available

9

Gravely 05059900

HOSE, HYD .38-28-4K F6J0-F6J0

$

$

Not available

10

Gravely 05060000

HOSE, HYD .38-19-4K F6J0-F6J0

$

$

Not available

11

Gravely 05060100

HOSE, HYD .38-14-4K F6J0-F6J0

$

$

Not available

12

Gravely 07065600

FTG, HYD STR M6J-M4N

$

$

Not available

13

Gravely 06944900

CLAMP, HOSE

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 07059200

PLATE, COVER (CPT-2)

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 05048700

BRACKET,ATTACHMENT HOSE -ASSY

$

$

Not available

16

Gravely 07059100

PLATE, COVER (CPT-3)

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 06943900

CLAMP, HOSE

$

$

Not available

18

Gravely 05059500

HOSE, HYD .500-60-3K M8B0-F8J0

$

$

Not available

19

Gravely 07065500

FTG, HYD STR M8J-M4N

$

$

Not available

20

Gravely 07060200

SEAL, BONDED

$

$

Not available

21

Gravely 07058700

COUPLING, FML QCK .500-14 BSPP

$

$

Not available

22

Gravely 07058900

PLUG, DUST .500

$

$

Not available

23

Gravely 07058800

COUPLER, MALE QCK .500-14 BSPP

$

$

Not available

24

Gravely 07059000

CAP, DUST .500

$

$

Not available
