850004 - Gravely Trencher (SN: 000101 & Above) Trencher Parts Diagram

Trencher

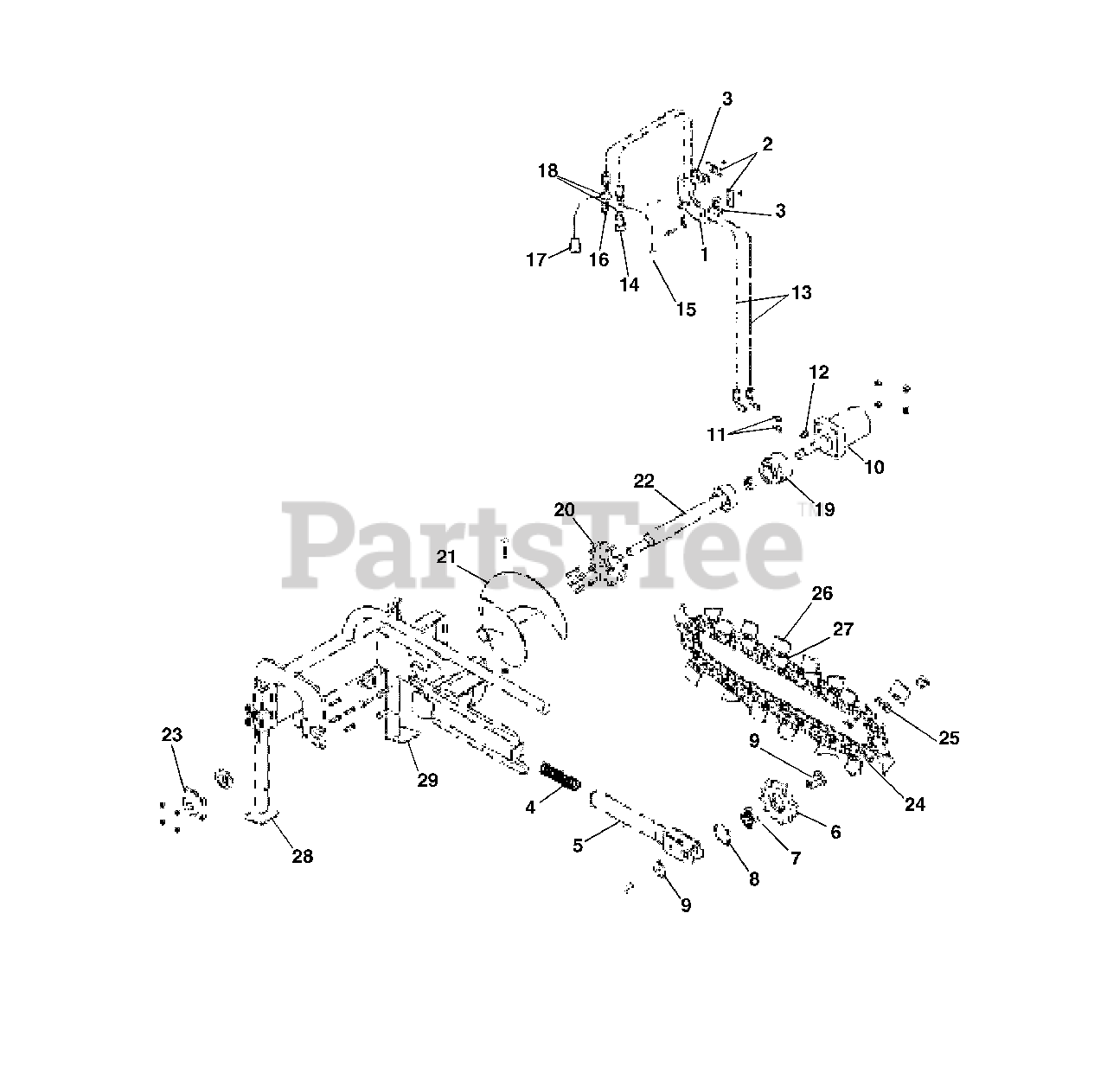

Trencher Parts Diagram

  • Title

1

Gravely 05048700

Bracket, Attachment Hose-Assembly

$

$

Not available

2

Gravely 07059100

Plate, Cover

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 06943900

Clamp, Dual Hose .50 ID

$

$

Not available

4

Gravely 08337500

Spring, Compression

$

$

Not available

5

Gravely 05061600

Boom, Inside

$

$

Not available

6

Gravely 05061700

Sprocket, Idler

$

$

Not available

7

Gravely 05435600

Bearing, Square Bore

$

$

Not available

8

Gravely 05713000

Ring-Retaining-Internal 3.52 x .109

$13.99

$

Usually ships in 4-12 days

0

9

Gravely 05061800

Shaft, Square Idler

$

$

Not available

10

Gravely 05059000

Motor, Hydraulic

$

$

Not available

11

Gravely 07065400

Fitting, Hydraulic Straight

$

$

Not available

12

Gravely 06607800

Key-Woodruff .31 x 1.00

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 05059100

Hose, Hydraulic

$

$

Not available

14

Gravely 07058700

Coupling, Female Quick

$

$

Not available

15

Gravely 07058900

Plug, Dust .50 Quick Coupler

$

$

Not available

16

Gravely 07058800

Coupler, Male Quick

$

$

Not available

17

Gravely 07059000

Cap, Dust .50 Quick Coupler

$

$

Not available

18

Gravely 07060200

Seal, Bonded

$

$

Not available

19

Gravely 05061900

Hub, Drive

$

$

Not available

20

Gravely 05062000

Sprocket, Drive

$

$

Not available

21

Gravely 05062100

Flight, Auger

$

$

Not available

22

Gravely 05062200

Shaft, Auger

$

$

Not available

23

Gravely 05436000

Bearing, Square Flange

$

$

Not available

24

Gravely 05062300

Chain, 13 Station - with Teeth

$

$

Not available

24

Gravely 05062400

Chain, 13 Station (Chain Only) without Teeth

Note: (Chain Only) without Teeth

$

$

Not available

24

Gravely 05062500

Chain, 26 Station - with Teeth

$

$

Not available

24

Gravely 05062600

Chain, 26 Station (Chain Only) without Teeth

Note: (Chain Only) without Teeth

$

$

Not available

25

Gravely 05062800

Spacer, 1.00 Tooth

$

$

Not available

25

Gravely 05062900

Spacer, .50 Tooth

$

$

Not available

26

Gravely 05063000

Tooth, Left Hand

$

$

Not available

27

Gravely 05063100

Tooth, Right Hand

$

$

Not available

28

Gravely 05063700

Leg, Trencher Support - Right Hand

$

$

Not available

29

Gravely 05063800

Leg, Trencher Support - Left Hand

$

$

Not available
