850005 - Gravely Rotary Tiller (SN: 000101 & Above) Rotary Tiller Parts Diagram

Rotary Tiller

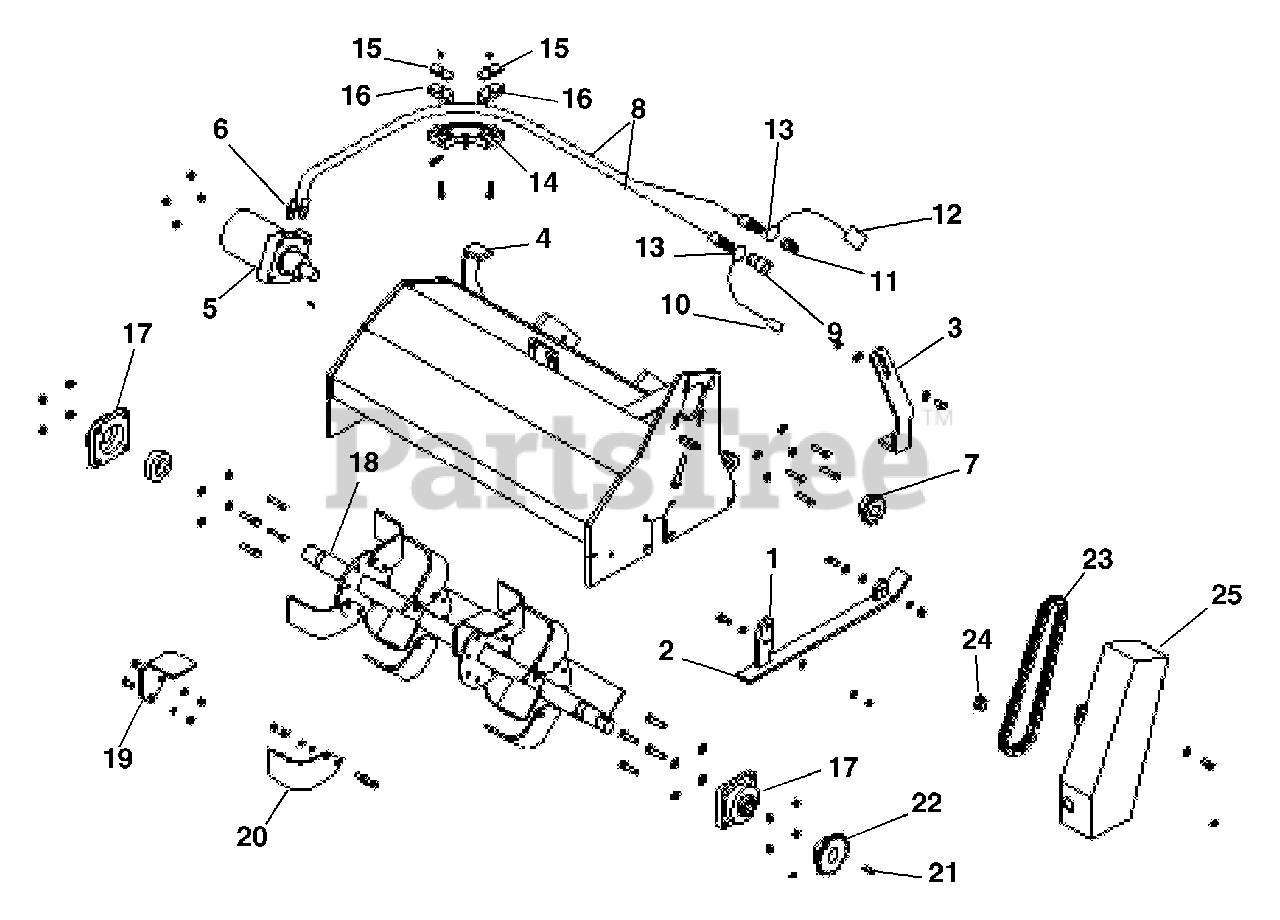

Rotary Tiller Parts Diagram

  • Title

1

Gravely 05060651

ADJUSTER

$

$

Not available

2

Gravely 05060751

SKID, LH

$

$

Not available

Gravely 05060851

SKID, RH

$

$

Not available

3

Gravely 05060951

LEG, LH

$

$

Not available

4

Gravely 05061051

LEG. RH

$

$

Not available

5

Gravely 05059300

MOTOR, HYDRAULIC

$

$

Not available

6

Gravely 07065400

FTG, HYD STR M8J-M10O

$

$

Not available

7

Gravely 05061100

SPROCKET, 13T

$

$

Not available

8

Gravely 05059200

HOSE, HYD .500-66-3K M8B0-F8J0

$

$

Not available

9

Gravely 07058700

COUPLING, FML QCK .500-14 BSPP

$

$

Not available

10

Gravely 07058900

PLUG, DUST .500

$

$

Not available

11

Gravely 07058800

COUPLER, MALE QCK .500-14 BSPP

$

$

Not available

12

Gravely 07059000

CAP, DUST .500

$

$

Not available

13

Gravely 07060200

SEAL, BONDED

$

$

Not available

14

Gravely 05048700

BRACKET,ATTACHMENT HOSE -ASSY

$

$

Not available

15

Gravely 07059100

PLATE, COVER (CPT-3)

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 06943900

CLAMP, HOSE

$

$

Not available

17

Gravely 05436100

BRG, SQ FLNG CARTRIDGE 45MM

$

$

Not available

18

Gravely 05061200

SHAFT, TINE

$

$

Not available

19

Gravely 05061300

TINE, RH

$

$

Not available

20

Gravely 05061400

TINE, LH

$

$

Not available

21

Gravely 06610800

KEY, 12MM X 8MM

$

$

Not available

22

Gravely 05061500

SPROCKET, 19T

$

$

Not available

23

Gravely 05059400

CHAIN, 60 ROLLER

$

$

Not available

24

Gravely 05035500

LINK, MASTER JOIN

$

$

Not available

25

Gravely 05063600

GUARD, CHAIN

$

$

Not available
