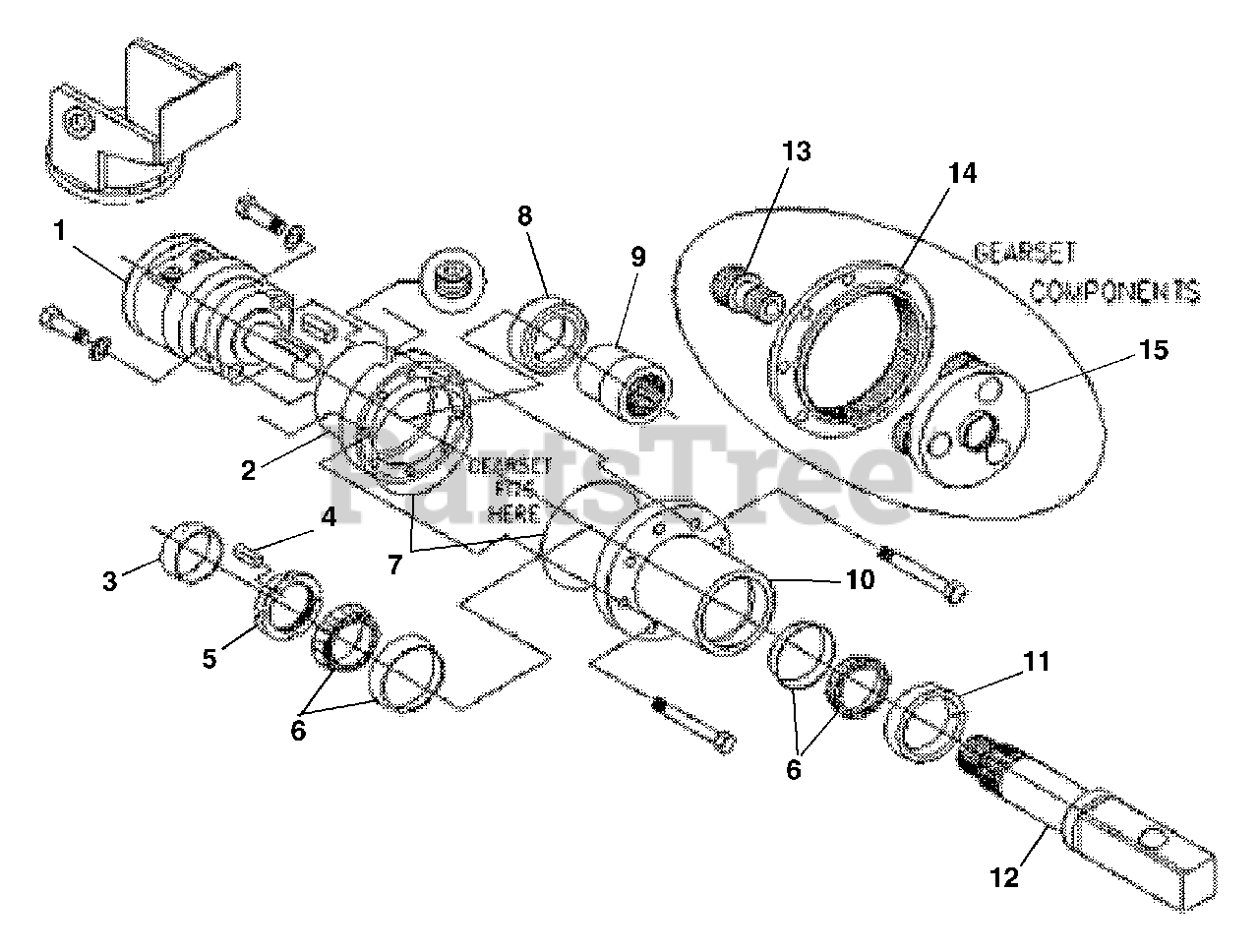

850011 - Gravely Auger Power Head (SN: 000101 & Above) High Torque Gear Box Parts Diagram

Auger Power Head

High Torque Gear Box Parts Diagram

  • Title

1

Gravely 05065100

Motor, Hydraulic

$

$

Not available

2

Gravely 05064200

Housing, Input

$

$

Not available

3

Gravely 05064800

Ring, Spacer

$

$

Not available

4

Gravely 06610900

Key, Locking

$

$

Not available

5

Gravely 07066000

Nut, Locking

$

$

Not available

6

Gravely 05436300

Bearing, Tapered Thrust

$

$

Not available

7

Gravely 05619400

O-Ring

$

$

Not available

8

Gravely 05436200

Bearing, Input

$

$

Not available

9

Gravely 05064400

Adapter, Input

$

$

Not available

10

Gravely 05064300

Housing, Output

$

$

Not available

11

Gravely 05619500

Seal,Oil

$

$

Not available

12

Gravely 05064900

Shaft, Output

$

$

Not available

13

Gravely 05064500

Gear, Input Pinion

$

$

Not available

14

Gravely 05064600

Gear, Ring

$

$

Not available

15

Gravely 05064700

Carrier

$

$

Not available
