850018 - Gravely Hydraulic Backfill Blade (SN: 000101 & Above) Hydraulic Angle Blade Parts Diagram

Hydraulic Backfill Blade

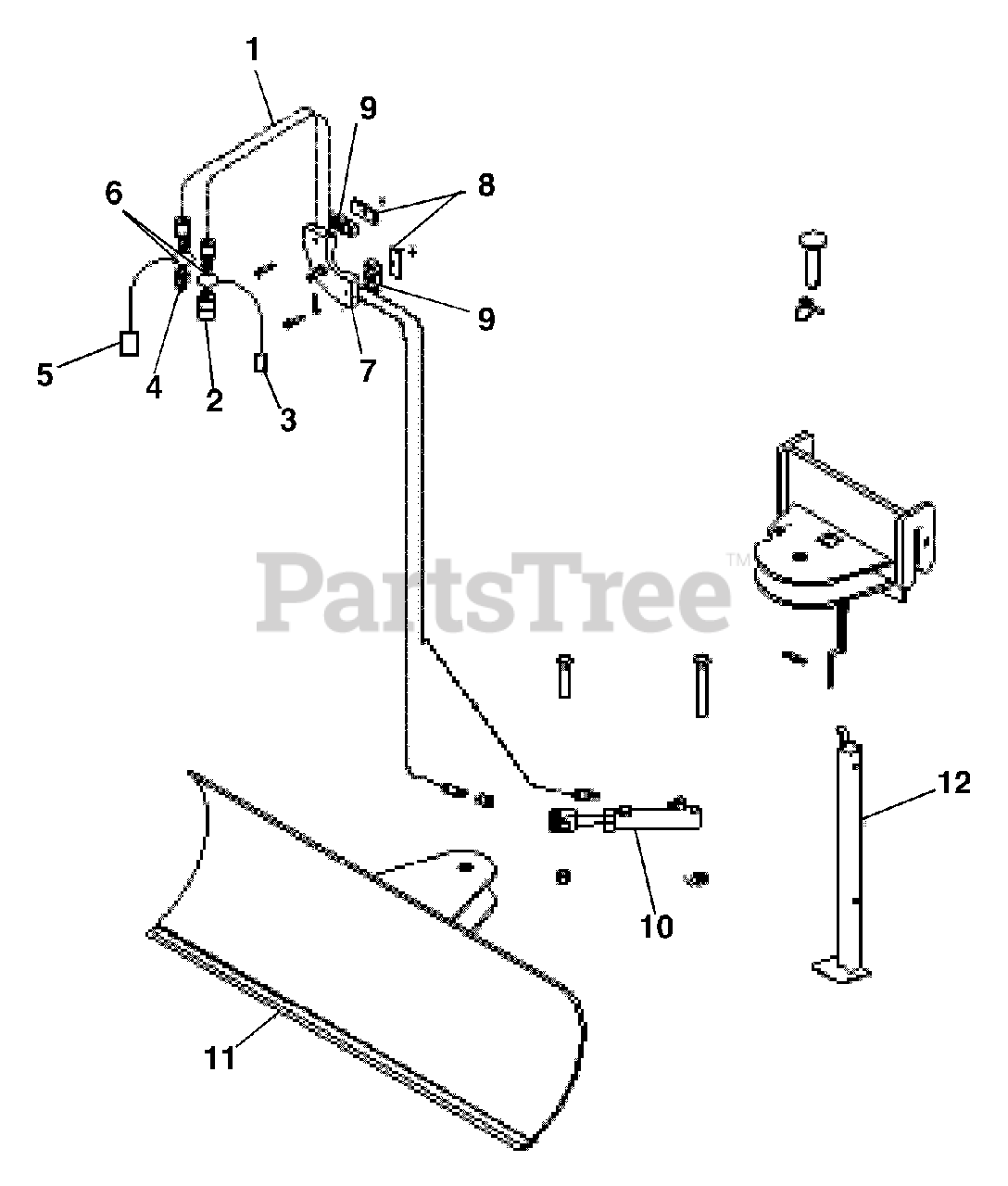

Hydraulic Angle Blade Parts Diagram

  • Title

1

Gravely 05063900

Hose, Hydraulic .50

$

$

Not available

2

Gravely 07058700

Coupling, Female Quick

$

$

Not available

3

Gravely 07058900

Plug, Dust .500 Quick Coupler

$

$

Not available

4

Gravely 07058800

Coupler, Male Quick

$

$

Not available

5

Gravely 07059000

Cap, Dust .500 Quick Coupler

$

$

Not available

6

Gravely 07060200

Seal, Bonded

$

$

Not available

7

Gravely 05048700

Bracket, Attachment Hose-Assembly

$

$

Not available

8

Gravely 07059100

Plate, Cover

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 06943900

Clamp, Dual Hose

$

$

Not available

10

Gravely 05063500

Cylinder, 4N1 Bucket Right Hand

$

$

Not available

10

Gravely 55001100

Seals, 4N1 Bucket Cylinder

$

$

Not available

11

Gravely 05064000

Cutting Edge, Angle Blade

$

$

Not available

12

Gravely 05064100

Stand, Angle Blade Support

$

$

Not available
