851002 - Ariens 36" Snow Blower for Mammoth 850 (SN: 000101 & Above) Chute Parts Diagram

36" Snow Blower for Mammoth 850

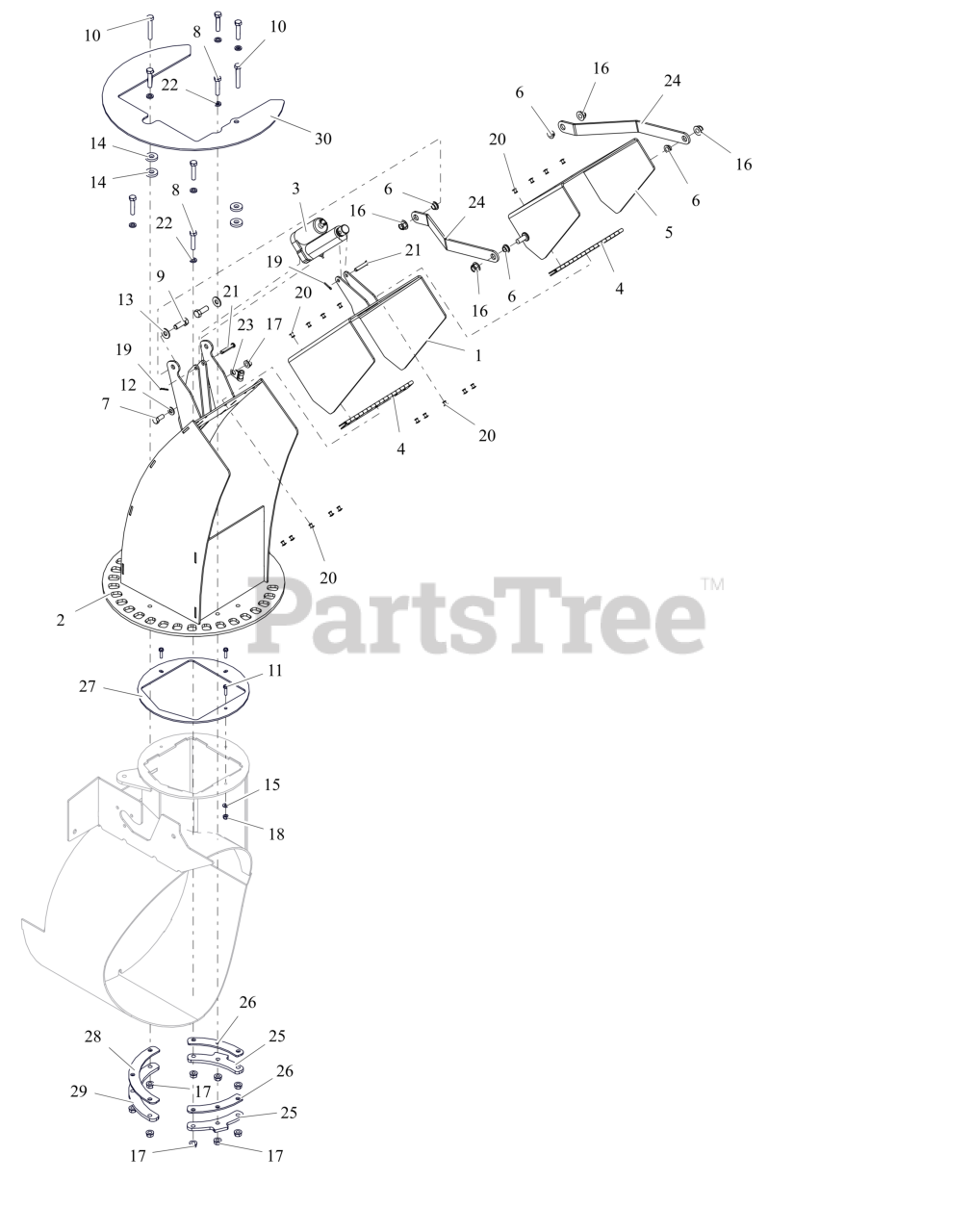

Chute Parts Diagram

  • Title

1

Ariens 09399600

WLDMT, MID CHUTE

$

$

Not available

2

Ariens 09399700

WLDMT, LOWER CHUTE

$

$

Not available

3

Ariens 09450000

ACTUATOR, CHUTE

$646.99

$

Usually ships in 4-12 days

0

4

Ariens 09450500

HINGE, CHUTE

$

$

Currently unavailable

5

Ariens 55101000

WLDMT, CHUTE CAP - W/DECAL

$

$

Currently unavailable

6

Ariens 05400802

BEARING, FLANGE .375

$

$

Currently unavailable

7

Ariens 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 12

0

8

Ariens 05901710

BLT, HEX .31-18X1.50 G5 ZCC

$1.49

$

Usually ships in 4-12 days

0

9

Ariens 05901711

BLT,HEX .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 05901805

BLT, HEX .31-18X2.00 G5 ZCC

$1.49

$

In Stock, Qty 12

0

11

Ariens 05901837

BLT, HWH #10-24X.75 ZCC

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 11

0

13

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, only 3 left!

0

14

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

0

15

Ariens 06401123

WSHR, FLT .219X.500X.049 ZCC

$0.99

$

Usually ships in 4-12 days

0

16

Ariens 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$0.99

$

In Stock, only 4 left!

0

18

Ariens 06500915

NUT-LK-NYL #10-24 G2 ZCC

$0.99

$

In Stock, only 3 left!

0

19

Ariens 06700227

PIN,CTR .09X.75 EXTPRSQCT ZCC

$1.99

$

Usually ships in 4-12 days

0

20

Ariens 06800220

RVT, BLIND #64 .1875 X GRIP .188-.250 GR51

$

$

Currently unavailable

21

Ariens 07002018

PIN, CLEVIS .25"X1.188" EL

$2.49

$

Usually ships in 4-12 days

0

22

Ariens 07002135

WSHR, FLAT-STL .344X.562X.093

$

$

Currently unavailable

23

Ariens 09447900

CLAMP, CABLE .250"

$

$

Currently unavailable

24

Ariens 09450100

BRKT, CHUTE PIVOT

$

$

Currently unavailable

25

Ariens 09452400

CLAMP, CHUTE STOP

$

$

Currently unavailable

26

Ariens 09452500

WEAR, PAD CHUTE

$

$

Currently unavailable

27

Ariens 09452600

BAFFLE, DISCHARGE NECK

$

$

Currently unavailable

28

Ariens 09452700

WEAR, PAD CHUTE

$

$

Currently unavailable

29

Ariens 09452900

CLAMP, CHUTE

$

$

Currently unavailable

30

Ariens 30134100

PLATE, COVER - CHUTE

$

$

Currently unavailable
