851003 - Ariens 48" Snow Blade for Mammoth 850 (SN: 000101 & Above) Blade Parts Diagram

48" Snow Blade for Mammoth 850

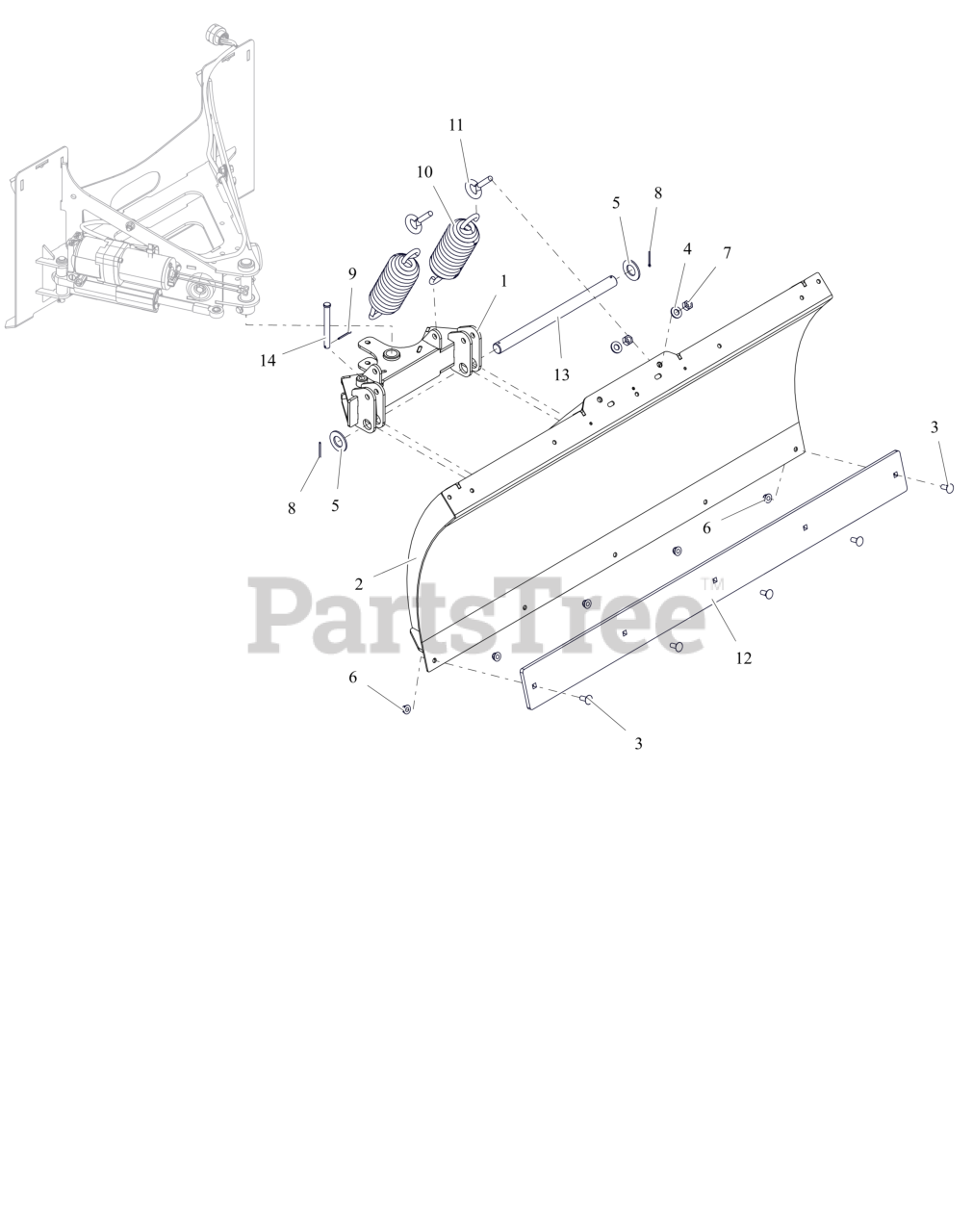

Blade Parts Diagram

  • Title

1

Ariens 55101700

WLDMT, PIVOT SNOW PLOW W/ZERKS

$659.99

$

Usually ships in 4-12 days

0

2

Ariens 09397600

WLDMT, BLADE 48"

$853.99

$

Usually ships in 4-12 days

0

3

Ariens 06200313

BLT, RHSN .38-16X1.00 G5 ZCC

$2.49

$

In Stock, Qty 19

0

4

Ariens 06401015

WSHR,FLT .531X1.062X.095 ZCC

$0.99

$

In Stock, Qty 20+

0

5

Ariens 06401203

WSHR, FLT 1.062X2.000X.134 ZCC

$3.99

$

In Stock, only 3 left!

0

6

Ariens 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06500827

NUT,LK-CTR .50-13 GA ZCC

$3.99

$

In Stock, only 2 left!

0

8

Ariens 06700210

PIN, CTR .12X1.50 EXTPRSQCT ZC120

$3.49

$

Usually ships in 4-12 days

0

9

Ariens 06700212

PIN,CTR.12X1.25EXTPRSQCT ZC120

$0.99

$

In Stock, Qty 7

0

10

Ariens 09447200

SPRG, EXTENSION PLOW TRIP

$79.99

$

Usually ships in 4-12 days

0

11

Ariens 09447300

EYEBOLT, FORMED 1/2"-13, 4"

$22.99

$

Usually ships in 4-12 days

0

12

Ariens 09447400

EDGE, CUTTING, 48" BLADE

$

$

Not available

13

Ariens 09447700

PIN, TILT

$68.99

$

Usually ships in 4-12 days

0

14

Ariens 09447800

PIN, CLEVIS .5 X 4.25

$26.99

$

Usually ships in 4-12 days

0
