851004 - Ariens 44" Brush for Mammoth 850 (SN: 000101 & Above) Brush Mount and Actuator Parts Diagram

44" Brush for Mammoth 850

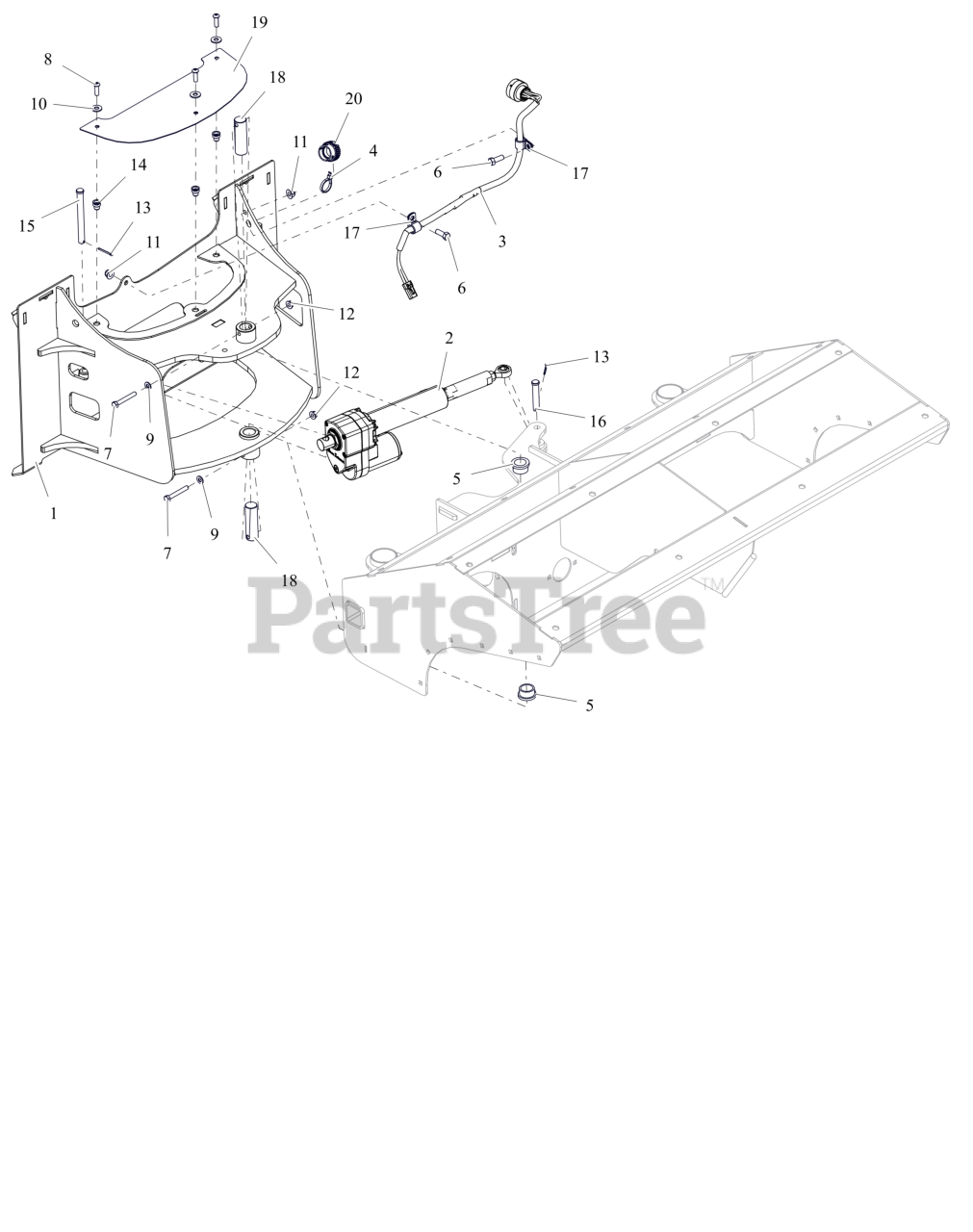

Brush Mount and Actuator Parts Diagram

  • Title

1

Ariens 55101900

WLDMT, BRUSH - W/DECAL

$

$

Currently unavailable

2

Ariens 09454600

ACTUATOR, BRUSH

$1034.99

$

Usually ships in 4-12 days

0

3

Ariens 09444700

HARNESS, BRUSH

$142.99

$

Usually ships in 4-12 days

0

4

Not Available thru Ariens

$

$

Not available

5

Ariens 05400803

FLANGE, SLEEVE BEARING, OIL-EMBEDDED

$34.99

$

Usually ships in 4-12 days

0

6

Ariens 05901711

BLT,HEX .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

7

Ariens 05901806

BLT, HEX .31-18X2.25 G5 ZCC

$1.49

$

In Stock, Qty 5

0

8

Ariens 05901840

BLT,SHCS-BTN .31-18X1.00 ZCC

$2.49

$

In Stock, Qty 14

0

9

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 9

0

10

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 7

0

11

Ariens 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.49

$

In Stock, Qty 15

0

13

Ariens 06700212

PIN,CTR.12X1.25EXTPRSQCT ZC120

$0.99

$

In Stock, Qty 7

0

14

Ariens 06800210

RVT, HEX 5/16-18 SHORT

$

$

Currently unavailable

15

Ariens 06800212

PIN, CLEVIS .50 X 4.75

$11.99

$

Usually ships in 4-12 days

0

16

Ariens 06800213

PIN, CLEVIS .50 X 2.375

$9.49

$

Usually ships in 4-12 days

0

17

Ariens 07002003

CLAMP, HARNESS - "P" (5/8" ID)

$2.99

$

Usually ships in 4-12 days

0

18

Ariens 09452100

SHAFT, PIVOT

$28.99

$

Usually ships in 4-12 days

0

19

Ariens 09454100

PLATE, COVER

$90.99

$

Usually ships in 4-12 days

0

20

Ariens 21583700

CAP, CONNECTOR - AHDC04-18

$28.99

$

Usually ships in 4-12 days

0
