851005 - Ariens Brine Sprayer for Mammoth 850 (SN: 000101 & Above) Spray Nozzles Parts Diagram

Brine Sprayer for Mammoth 850

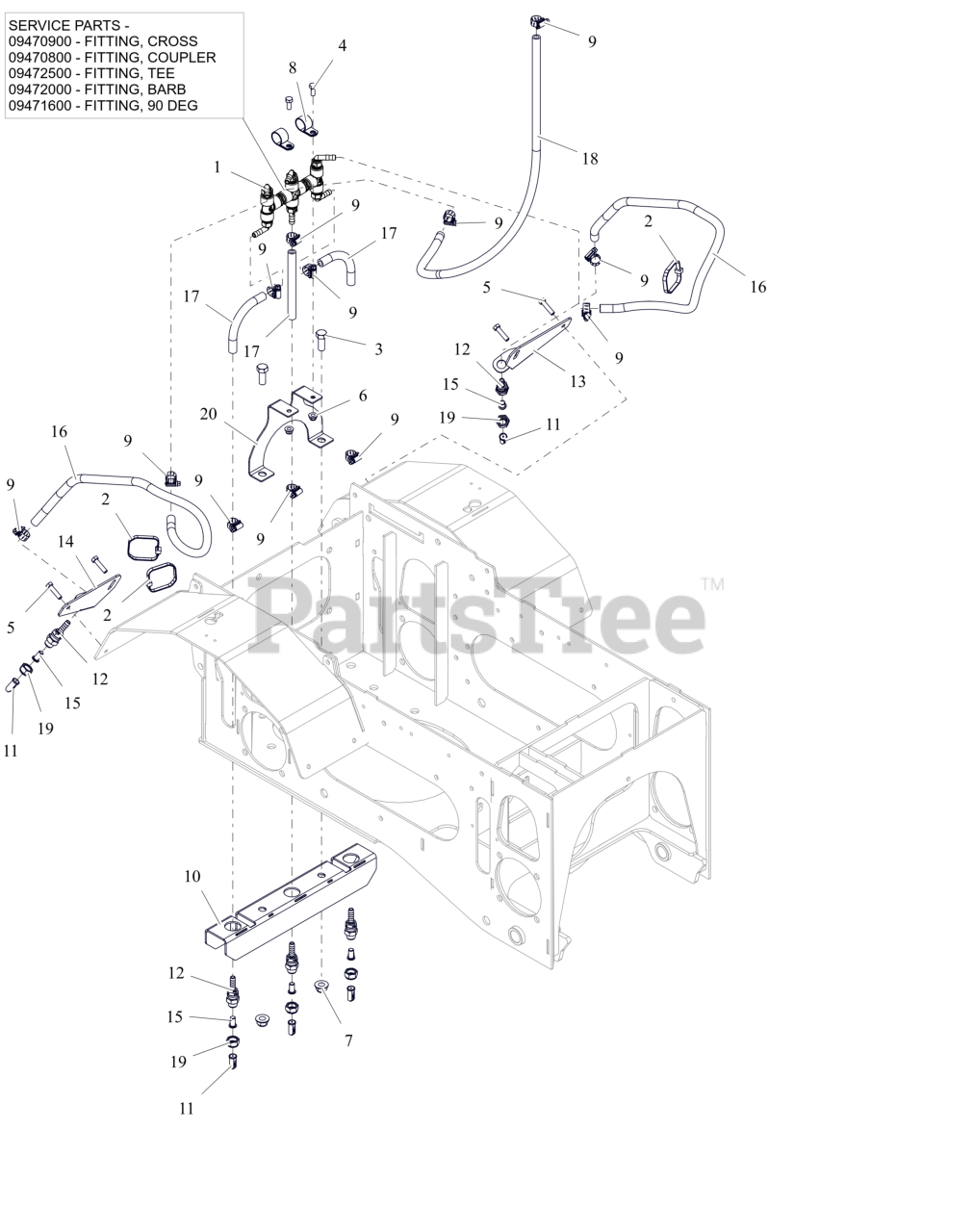

Spray Nozzles Parts Diagram

  • Title

1

Ariens 09657100

ASM- MANIFOLD

$129.99

$

Usually ships in 4-12 days

0

1

Ariens 09470900

FITTING- CROSS 3/8" FNPT

Note: Component Service Part

$45.99

$

Usually ships in 4-12 days

0

1

Ariens 09470800

FITTING-COUPLER-SHORT 3/8 MNPT

Note: Component Service Part

$7.99

$

Usually ships in 4-12 days

0

1

Ariens 09472500

FITTING- TEE 3/8" FNPT

Note: Component Service Part

$18.99

$

Usually ships in 4-12 days

0

1

Ariens 09472000

FITTING-HOSE-3/8 MNPTX3/8 BARB

Note: Component Service Part

$6.99

$

Usually ships in 4-12 days

0

1

Ariens 09471600

FITTING-HOSE-90 3/8MNPT X 3/8B

Note: Component Service Part

$9.49

$

Usually ships in 4-12 days

0

2

Ariens 04003500

TIE WRAP, 15.25" X 120 LBS

$

$

Not available

3

Ariens 05901637

BLT,HEX .50-13X1.25 G5 ZCC

$3.49

$

Usually ships in 4-12 days

0

4

Ariens 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 12

0

5

Ariens 05901803

BLT, HEX .31-18X1.25 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

6

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.49

$

In Stock, Qty 15

0

7

Ariens 06500810

NUT,NYL-FLG .50-13 GF ZCC

$2.49

$

In Stock, Qty 20+

0

8

Ariens 06917900

CLAMP, COUSHIONED STEEL REV

$14.99

$

Usually ships in 4-12 days

0

9

Ariens 06922100

CLAMP-HOSE WRM .44/.78X.53 F06

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 09454000

PLATE- SHIELD BRINE NOZZLE

$182.99

$

Usually ships in 4-12 days

0

11

Ariens 09469500

SPRAY TIP- NOZZLE

$34.99

$

Usually ships in 4-12 days

0

12

Ariens 09469900

BODY- NOZZLE

$28.99

$

Usually ships in 4-12 days

0

13

Ariens 09470059

BRKT- GROUND BRINE SPRAY LH

$19.99

$

Usually ships in 4-12 days

0

14

Ariens 09470159

BRKT- GROUND BRINE SPRAY RH

$19.99

$

Usually ships in 4-12 days

0

15

Ariens 09470700

FILTER- NOZZLE W/ CHECK

$28.99

$

Usually ships in 4-12 days

0

16

Ariens 09474000

HOSE-.375X.625X35.00

$17.99

$

Usually ships in 4-12 days

0

17

Ariens 09474100

HOSE-.375X.625X6.25

$5.99

$

Usually ships in 4-12 days

0

18

Ariens 09474300

HOSE-.375X.625X41.00

$20.99

$

Usually ships in 4-12 days

0

19

Ariens 09474800

RETAINER- NOZZLE

$7.99

$

Usually ships in 4-12 days

0

20

Ariens 09657059

BRKT- MANIFOLD MOUNT

$29.99

$

Usually ships in 4-12 days

0
