851006 - Ariens Salt Spreader for Mammoth 850 (SN: 000101 & Above) Hopper and Frame Assembly Parts Diagram

Salt Spreader for Mammoth 850

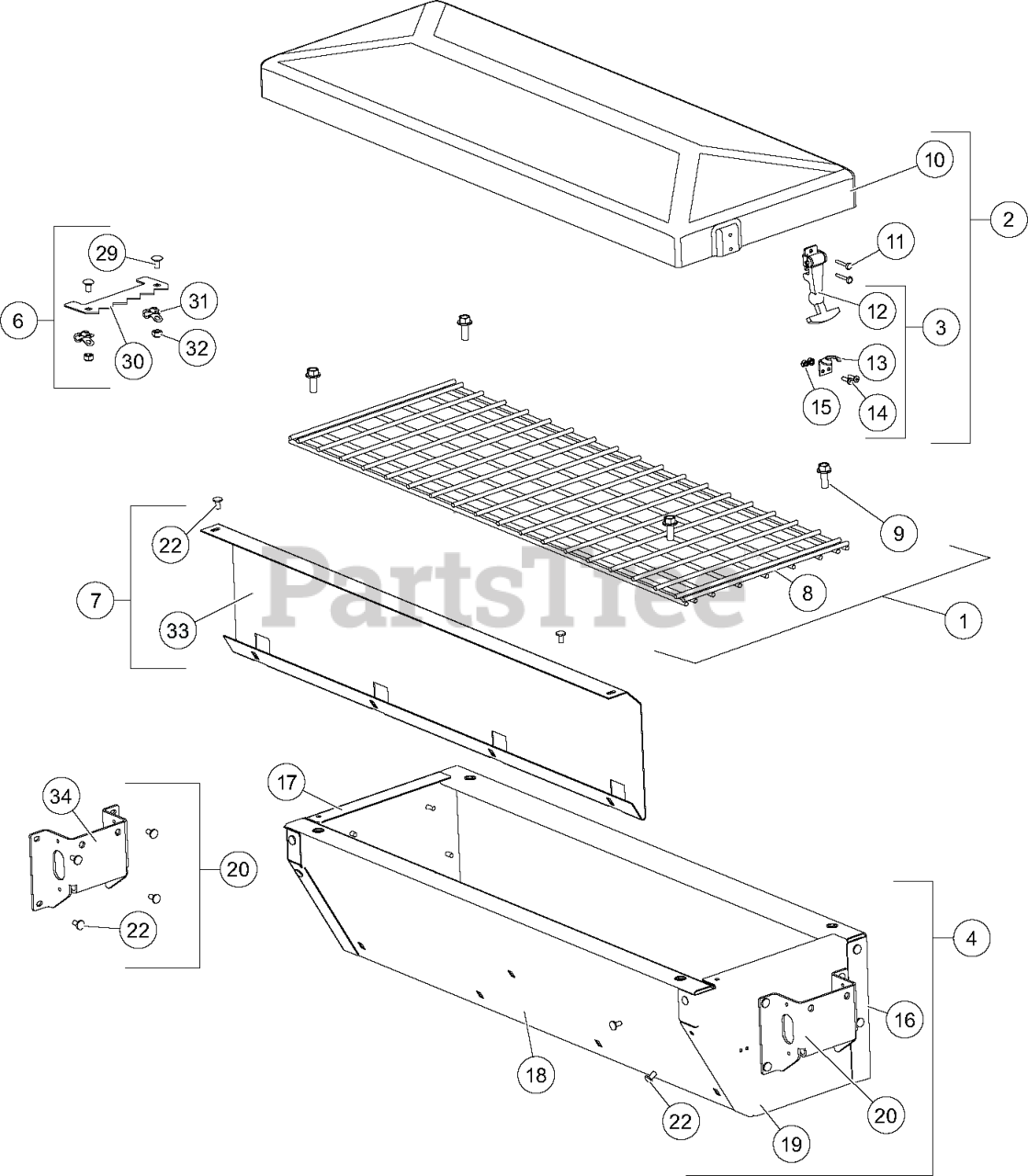

Hopper and Frame Assembly Parts Diagram

  • Title

1

Ariens 20001685

TOP SCREEN KIT, 250

$302.99

$

Usually ships in 4-12 days

0

2

Ariens 20001686

LID KIT, 250

$288.99

$

Usually ships in 4-12 days

0

3

Ariens 20001687

LATCH KIT

$127.99

$

Usually ships in 4-12 days

0

4

Ariens 20001688

HOPPER KIT, 250

$359.99

$

Usually ships in 4-12 days

0

6

Ariens 20001689

BAG SPLITTER KIT

$76.99

$

Usually ships in 4-12 days

0

7

Ariens 20001690

BAFFLE KIT

$108.99

$

Usually ships in 4-12 days

0

8

TOP SCREEN

Note: Not available Separately

$

$

Not available

9

3/8-16 X 1 HEX CAP SCREW SS

Note: Not available Separately

$

$

Not available

10

LID

Note: Not available Separately

$

$

Not available

11

3/16 POP RIVET

Note: Not available Separately

$

$

Not available

12

LATCH

Note: Not available Separately

$

$

Not available

13

KEEPER

Note: Not available Separately

$

$

Not available

14

#10-32 X 5/8 MACHINE SCREW SS

Note: Not available Separately

$

$

Not available

15

#10-32 HEX LOCKNUT SS

Note: Not available Separately

$

$

Not available

16

REAR SIDE, 2.5 CU FEET

Note: Not available Separately

$

$

Not available

17

END CAP, 2.5 CU FT - PS

Note: Not available Separately

$

$

Not available

18

FRONT SIDE, 2.5 CU FEET

Note: Not available Separately

$

$

Not available

19

END CAP, 2.5 CU FEET - DS

Note: Not available Separately

$

$

Not available

20

Ariens 21593300

HANDLE KIT

$

$

Currently unavailable

22

1/4 RIVET SS

Note: Not available Separately

$

$

Not available

29

1/4-20 X 1/2 CARRIAGE BOLT SS

Note: Not available Separately

$

$

Not available

30

BAG SPLITTER

Note: Not available Separately

$

$

Not available

31

CLAMP, 5/16 RUBBER COATED

Note: Not available Separately

$

$

Not available

32

1/4-20 HEX LOCKNUT GB

Note: Not available Separately

$

$

Not available

33

BAFFLE

Note: Not available Separately

$

$

Not available

34

HANDLE

Note: Not available Separately

$

$

Not available
