851007 - Ariens 48" V-Plow for Mammoth 850 (SN: 000101 & Above) Blade Components Parts Diagram

48" V-Plow for Mammoth 850

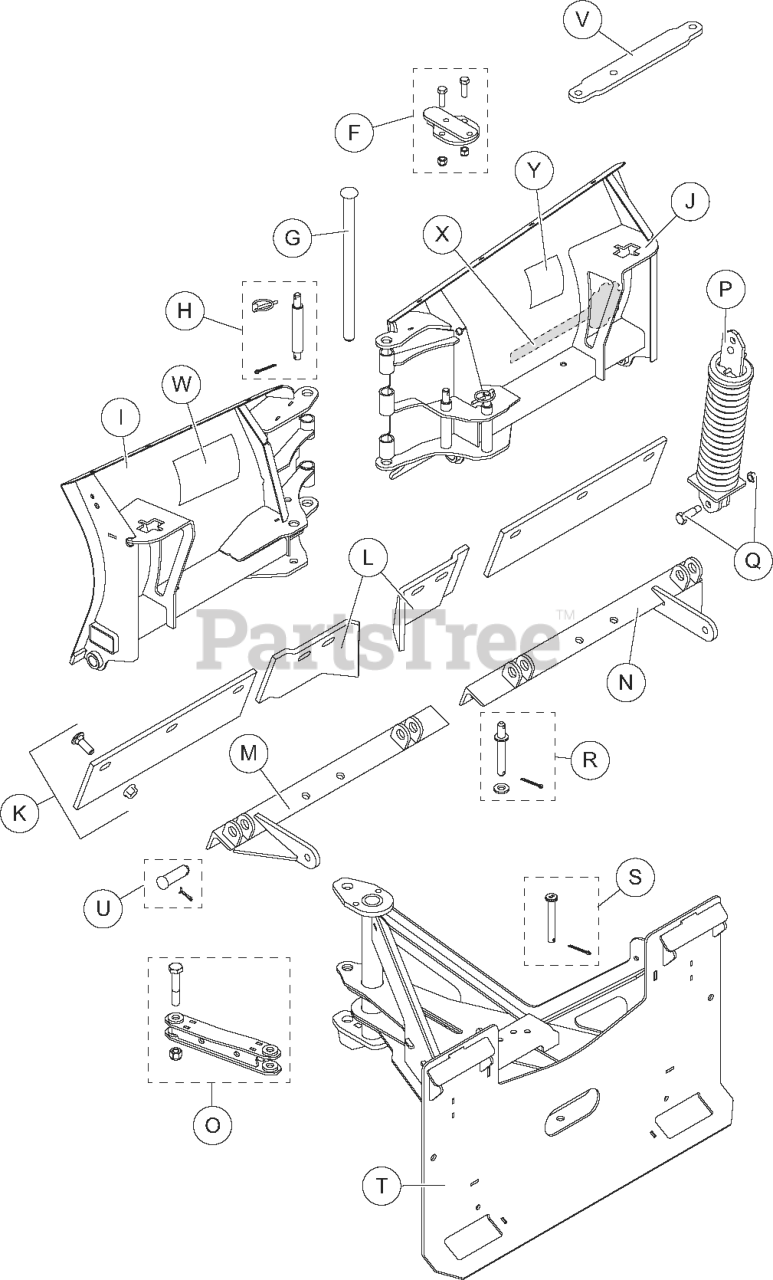

Blade Components Parts Diagram

  • Title

F

Ariens 21589000

PKG, PIN HOLD DOWN

$

$

Currently unavailable

G

Ariens 21589100

.750 X 12-.625 PIN

$29.99

$

Usually ships in 0 days

0

H

Ariens 21589200

PKG, WING PIN

$29.99

$

Usually ships in 4-12 days

0

I

Ariens 21589300

V-PLOW, BLADE LH

$

$

Currently unavailable

J

Ariens 21589400

V-PLOW, BLADE RH

$804.99

$

Usually ships in 0 days

0

K

Ariens 21589500

PKG, CUTTING EDGE W/ FASTENERS

$263.99

$

Usually ships in 4-12 days

0

L

Ariens 21589600

PKG, CTR CUTTING EDGE W/ FASTENERS

$197.99

$

Usually ships in 4-12 days

0

M

Ariens 21589700

BASE ANGLE, LH

$382.99

$

Usually ships in 4-12 days

0

N

Ariens 21589800

BASE ANGLE, RH

$382.99

$

Usually ships in 4-12 days

0

O

Ariens 21589900

PKG, DRIVE LINK

$51.99

$

Usually ships in 4-12 days

0

P

Ariens 21590000

PKG, TRIP SPRINGS

$171.99

$

In Stock, only 1 left!

0

Q

Ariens 21590100

PKG, SHOULDER BLT W/ LOCKNUT

$25.99

$

Usually ships in 4-12 days

0

R

Ariens 21590200

PKG, DRIVE PIN

$46.99

$

Usually ships in 4-12 days

0

S

Ariens 21590300

PKG, PIN

$13.99

$

Usually ships in 4-12 days

0

T

Ariens 21590400

A-FRAME

$699.99

$

Usually ships in 4-12 days

0

U

Ariens 21590500

PKG, .750 X 2-.188 PIN

$6.99

$

Usually ships in 4-12 days

0

V

Ariens 21590600

LINK

$34.99

$

Usually ships in 4-12 days

0

W

Ariens 21590700

DECAL, CONFIGURATION V-PLOW

$17.99

$

Usually ships in 4-12 days

0

X

Ariens 07802016

DECAL, ARIENS LOGO W/ BADGE

$21.99

$

Usually ships in 4-12 days

0

Y

Ariens 21590800

DECAL, WARNING/CAUTION V-PLOW

$17.99

$

Usually ships in 4-12 days

0

NS

Ariens 30146500

HARNESS, WIRE V-PLOW

Note: Not Shown

$327.99

$

Usually ships in 4-12 days

0

NS

Ariens 30154500

TOOL, SPRING REMOVAL

Note: Not Shown

$93.99

$

Usually ships in 4-12 days

0
