851007 - Ariens 48" V-Plow for Mammoth 850 (SN: 000101 & Above) Hydraulic Unit Parts Diagram

48" V-Plow for Mammoth 850

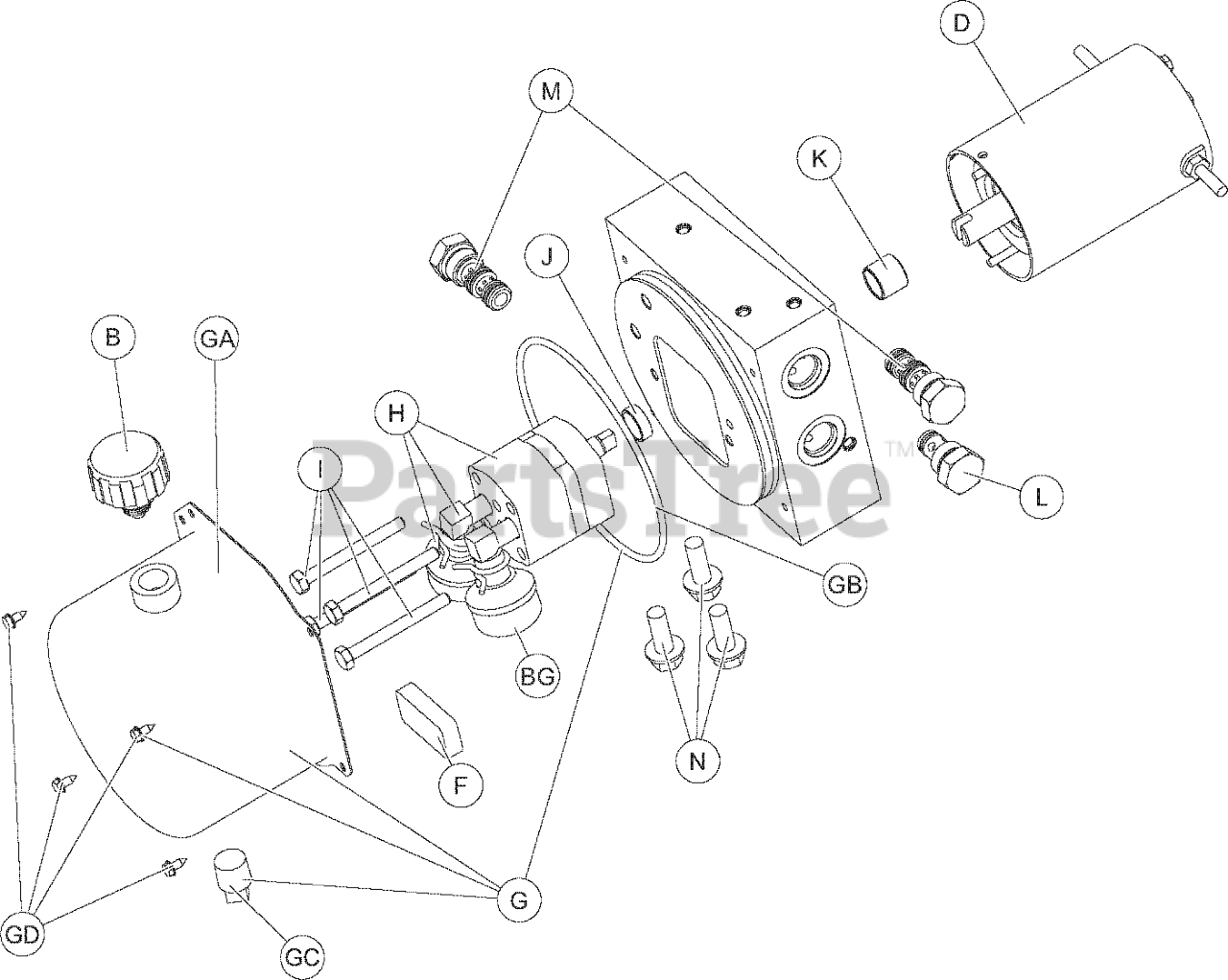

Hydraulic Unit Parts Diagram

  • Title

Ariens 75101300

KIT, HYDRAULIC UNIT

Note: Not Referenced in Image

$1793.99

$

Usually ships in 4-12 days

0

B

Ariens 21592100

BREATHER, PRESSURE CONTROL

$79.99

$

Usually ships in 4-12 days

0

D

Ariens 21592101

ASM, MOTOR 3"

$362.99

$

Usually ships in 0 days

0

F

Ariens 21592102

MAGNET

$9.99

$

Usually ships in 0 days

0

G

Ariens 75101500

KIT, RESERVOIR

$

$

Not available

H

Ariens 75101600

KIT, BIDIRECTIONAL PUMP

$

$

Not available

I

Ariens 21592103

HHCS 1/4-20 X 2-1/2 G5

$2.49

$

Usually ships in 0 days

0

J

Ariens 21592104

PUMP, SHAFT SEAL

$14.99

$

Usually ships in 0 days

0

K

Ariens 21592105

BRG, SLV

$11.99

$

Usually ships in 0 days

0

L

Ariens 21592106

CHECK VALVE, CV08-20

$52.99

$

Usually ships in 0 days

0

M

Ariens 21592107

VALVE, PC08-30 W/NUT

$118.99

$

Usually ships in 0 days

0

N

Ariens 21592108

HHCS, FLG 3/8 X 1 SERRATED (QTY 3)

$15.99

$

Usually ships in 0 days

0

GB

Ariens 21592201

O-RING, 2-251

$16.99

$

Usually ships in 0 days

0

GC

Ariens 21592202

PLUG, SQUARE 3/8 NPTF

$5.99

$

Usually ships in 4-12 days

0

GD

Ariens 21592203

HARDWARE, RESERVOIR

$2.99

$

Usually ships in 0 days

0

GA

RESERVOIR

Note: Not Available Separately

$

$

Not available

BG

Ariens 21592300

SCREEN, BI-DIRECTIONAL PUMP (QTY 2)

$26.99

$

Usually ships in 0 days

0

Ariens 21592400

TOOL, PUMP SHAFT SEAL

Note: Includes 1 Seal

$26.99

$

Usually ships in 0 days

0

Ariens 21592500

TOOL, BRG SLV

Note: Includes 1 Bearing

$109.99

$

Usually ships in 0 days

0
