851301 - Ariens 48" Snow Blower for Mammoth 850 (SN: 000101 & Above) Auger Assembly - 48" Parts Diagram

48" Snow Blower for Mammoth 850

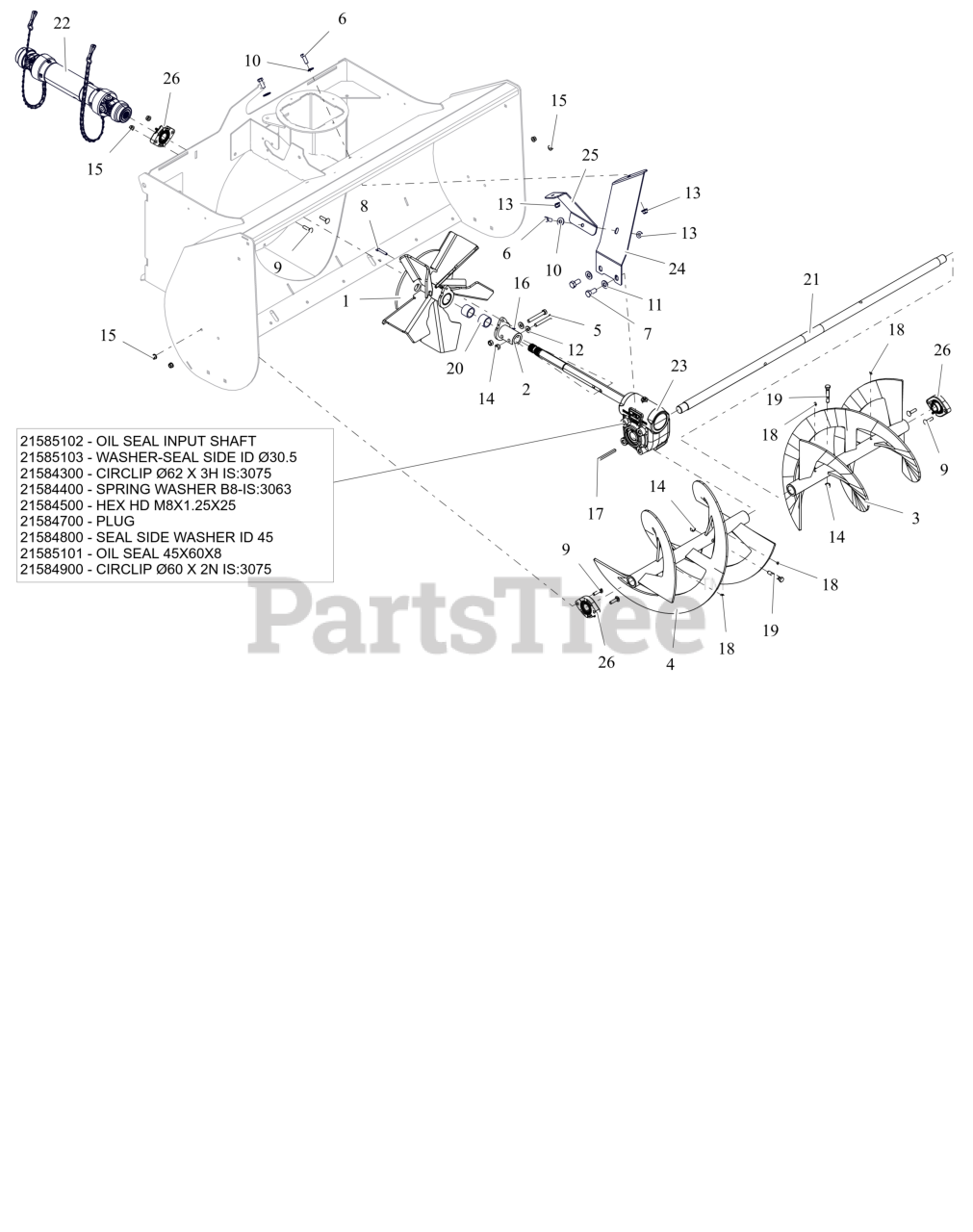

Auger Assembly - 48" Parts Diagram

  • Title

1

Ariens 09399800

WLDMT, IMPELLER

$1075.99

$

Usually ships in 4-12 days

0

2

Ariens 09451700

WLDMT, SHEAR COUPLER

$131.99

$

Usually ships in 0 days

0

3

Ariens 09458300

WLDMT, AUGER LH - 48" (14" OD)

$

$

Currently unavailable

4

Ariens 09458400

WLDMT, AUGER RH - 48" (14" OD)

$

$

Currently unavailable

5

Ariens 05901611

BLT, HEX .38-16X2.75 G5 ZCC

$4.99

$

In Stock, Qty 20+

0

6

Ariens 05901711

BLT,HEX .38-16X1.00 G5 ZCC

$1.99

$

In Stock, Qty 20+

0

7

Ariens 05901715

BLT, HEX .50-13X1.00 G5 ZCC

$2.99

$

In Stock, Qty 7

0

8

Ariens 05902250

BLT, HEX 0.25-28X1.5 G5 ZCC

$1.99

$

Usually ships in 4-12 days

0

9

Ariens 06200407

BLT, RHSN .31-18X1.25 G5 ZCC

$4.99

$

Usually ships in 4-12 days

0

10

Ariens 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.99

$

In Stock, Qty 20+

0

11

Ariens 06401015

WSHR,FLT .531X1.062X.095 ZCC

$1.49

$

In Stock, only 4 left!

0

12

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.99

$

In Stock, Qty 20+

0

13

Ariens 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.99

$

In Stock, Qty 20+

0

14

Ariens 06500825

NUT-LK-CTR .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06501021

NUT, NYL .25-28 ZCC

$1.99

$

Usually ships in 4-12 days

0

17

Ariens 06600121

KEY .25 X .25 X 3IN

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 07001738

FTG-LUBE .25-28X.256 SST

$3.99

$

Usually ships in 4-12 days

0

19

Ariens 07002026

BOLT, SHEAR - .375-16 X 2.220

$20.99

$

Usually ships in 4-12 days

0

20

Ariens 07002213

BSHG, 1.125 X 1.377 X 1.000

$14.99

$

Usually ships in 0 days

0

21

Ariens 09450800

SHAFT, AUGER 48"

$

$

Currently unavailable

22

Ariens 30154700

SHAFT, PTO BLOWER (CE)

$395.99

$

Usually ships in 4-12 days

0

23

Ariens 30124800

GEARBOX, WORM - SNOWBLOWER

$753.99

$

Usually ships in 4-12 days

0

23

Ariens 21585102

OIL SEAL INPUT SHAFT

Note: Component Service Part

$137.99

$

Usually ships in 4-12 days

0

23

Ariens 21585103

WASHER - SEAL SIDE ID 30.5

Note: Component Service Part

$10.99

$

Usually ships in 4-12 days

0

23

Ariens 21584300

CIRCLIP DIA62 X 3H

Note: Component Service Part

$14.99

$

Usually ships in 0 days

0

23

Ariens 21584400

SPRING WASHER B8-IS:3063

Note: Component Service Part

$1.99

$

Usually ships in 4-12 days

0

23

Ariens 21584500

HEX HD M8X1.25X25

Note: Component Service Part

$6.49

$

Usually ships in 4-12 days

0

23

Ariens 21584700

PLUG

Note: Component Service Part

$12.99

$

Usually ships in 4-12 days

0

23

Ariens 21584800

SEAL SIDE WASHER ID 45

Note: Component Service Part

$12.99

$

Usually ships in 0 days

0

23

Ariens 21585101

OIL SEAL 45X60X8

Note: Component Service Part

$72.99

$

Usually ships in 4-12 days

0

23

Ariens 21584900

CIRCLIP DIA 60 X 2N IS:3075

Note: Component Service Part

$9.99

$

Usually ships in 0 days

0

24

Ariens 30125100

BRKT, GEARBOX SUPPORT - LHS

$35.99

$

Usually ships in 0 days

0

25

Ariens 30125300

BRKT, GEARBOX SUPPORT - RHS

$24.99

$

Usually ships in 0 days

0

26

Ariens 55102400

KIT, FLANGE BEARING W/HARDWARE

$94.99

$

Usually ships in 4-12 days

0
