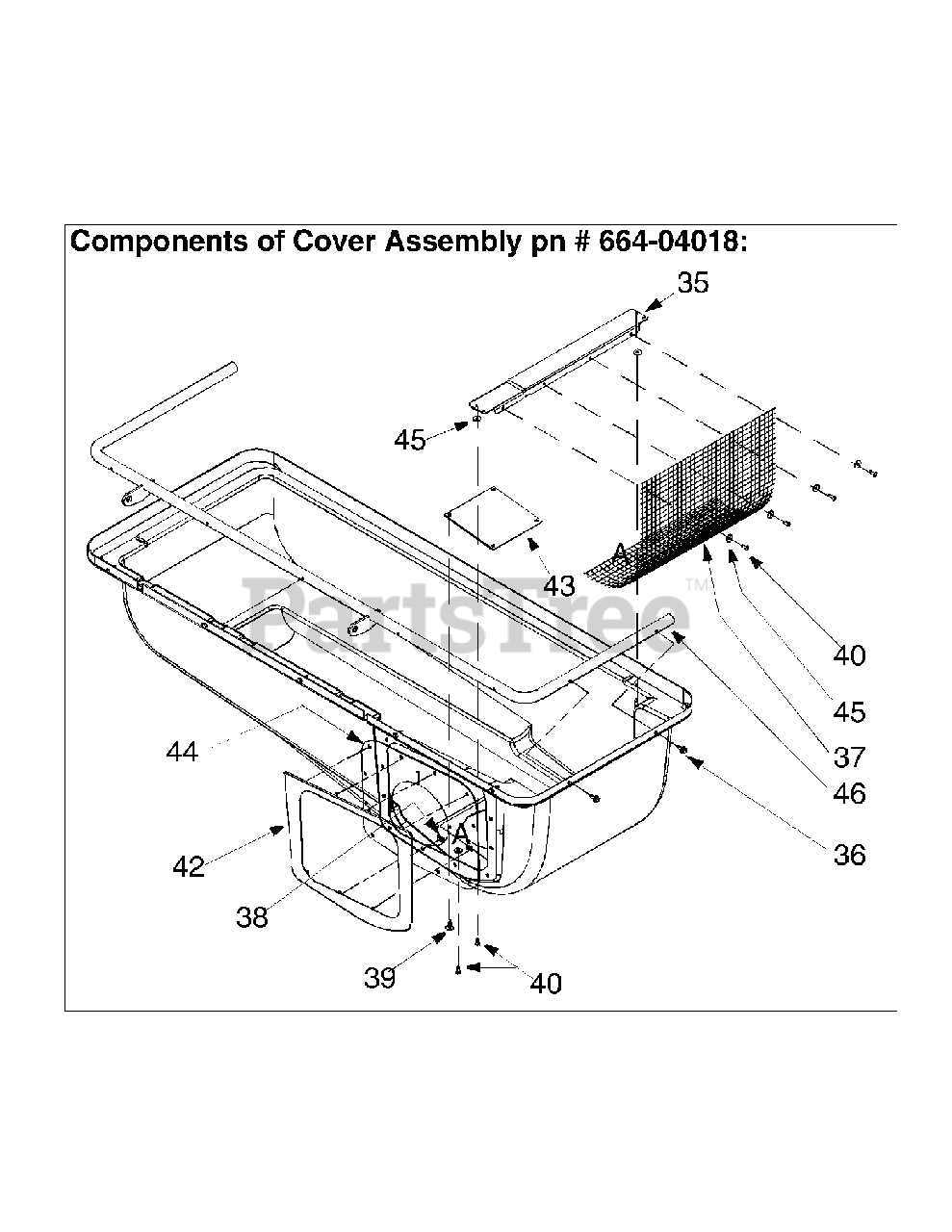

852 (590-852-150) - Cub Cadet Triple Rear Bagger Kit Assembly Parts Diagram

Triple Rear Bagger Kit

Assembly Parts Diagram

  • Title

35

Cub Cadet 17202A

Screen Mounting Bracket

Note: NLA

Variations

Cub Cadet 17202A-0637

SCREEN MTG BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

36

Cub Cadet 710-1652

TT Screw 1/4-20 x 0.625

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 920-04018

Screen

$

$

Not available

38

Cub Cadet 926-04027

Push Nut

$

$

Not available

39

Cub Cadet 726-0479

Ratchet Clip

$4.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 928-0123

Pop Rivet

$5.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 931-04189

Retainer Seal

$

$

Not available

43

Cub Cadet 731-0824A

Plastic Plate

Note: NLA

$

$

Not available

44

Cub Cadet 935-04020

Grass Bag Seal

$

$

Not available

45

Cub Cadet 936-0400

Flat Washer
(Superseded to 736-0400)

$

$

Not available

46

Cub Cadet 749-0747-0637

Hinge Bracket

$

$

Not available
