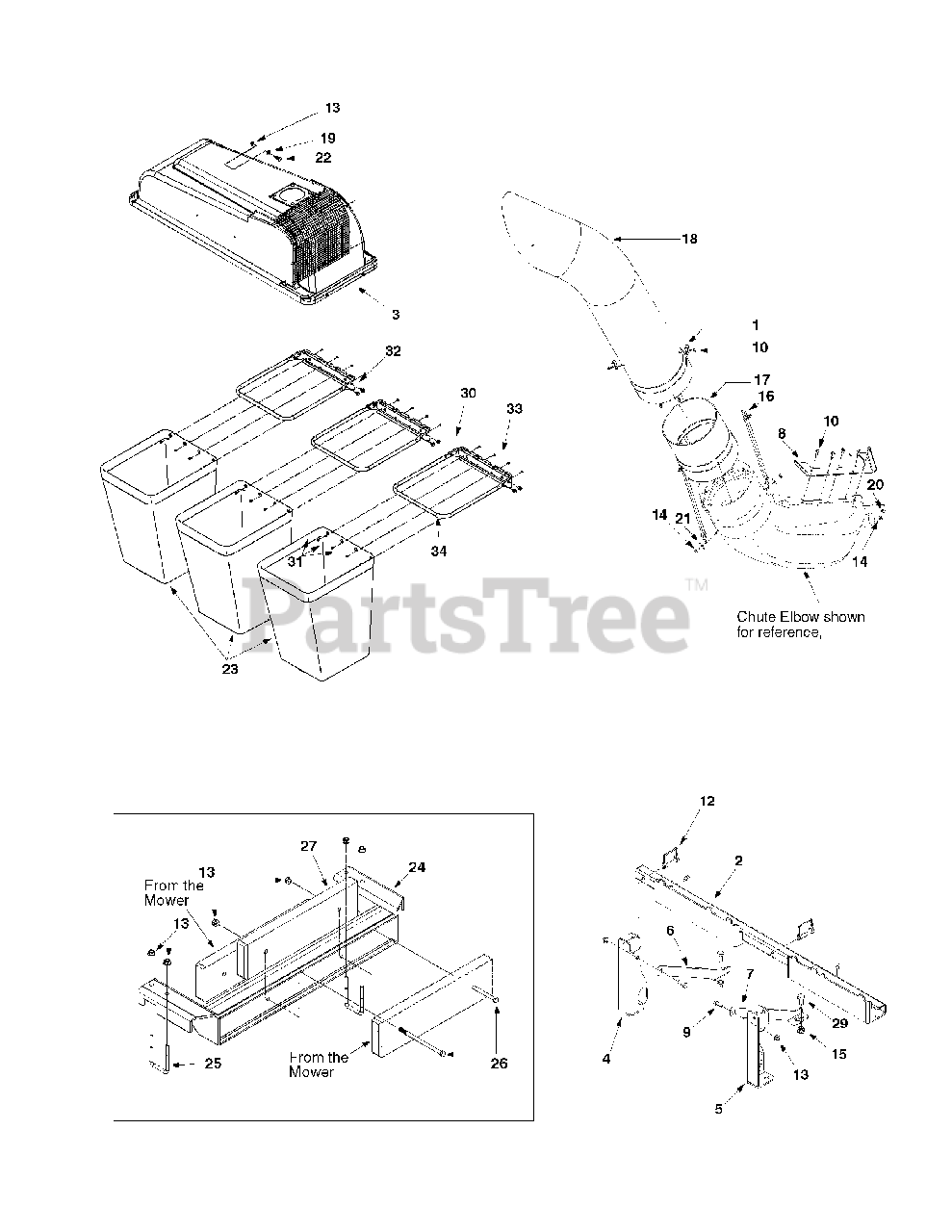

852 (590-852-150) - Cub Cadet Triple Rear Bagger Kit General Assembly Parts Diagram

Triple Rear Bagger Kit

General Assembly Parts Diagram

  • Title

1

Cub Cadet 96606

Retainer Hook

$7.99

$

In Stock, only 2 left!

0

2

Cub Cadet 603-04098-0637

Catcher Support Bracket

$

$

Not available

3

Cub Cadet 664-04018

Catcher Cover

Note: NLA

$

$

Not available

4

Cub Cadet 703-05237-0637

Upright Mounting Bracket LH

$77.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-05239-0637

Upright Mounting Bracket RH

$

$

Not available

6

Cub Cadet 703-05240-0637

Upright Gusset LH

$

$

Not available

7

Cub Cadet 703-05241-0637

Upright Gusset RH

$

$

Not available

8

Cub Cadet 703-05245A-0637

Boot Mount

$68.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0514

Hex Bolt 3/8-16 x 1.0"

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0751

Hex Bolt 1/4-20 x 0.620"

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3034

Carriage Bolt 3/8-16 x 1.25"

$4.49

$

In Stock, only 3 left!

0

12

Cub Cadet 911-04160

Lock Pin

$25.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 912-0431

Top Lock Flange Nut 3/8-16

$5.49

$

In Stock, Qty 20+

0

14

Cub Cadet 912-3027

Flange Lock Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3083

Lock Nut 1/2-13

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 723-0476

Chute Strap

$35.99

$

In Stock, only 2 left!

0

17

Cub Cadet 731-04423

Extension Tube

$

$

Not available

18

Cub Cadet 731-0926B

Chute Tube

$150.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 936-0253

Belleville Washer
(Superseded to 736-0253)

$

$

Not available

20

Cub Cadet 736-0270

Bell Washer

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-3092

Flat Washer

$4.49

$

In Stock, only 4 left!

0

22

Cub Cadet 938-0380

Shoulder Screw 3/8-16
(Superseded to 738-0380)

$8.49

$

In Stock, Qty 20+

0

23

Cub Cadet 964-0251

Triple Grasscatcher bag

$92.99

$

In Stock, Qty 6

0

24

Cub Cadet 903-04307-0637

Weight Bar Bracket

$

$

Not available

25

Cub Cadet 710-04170

U Bolt 3/8-16 x 1.5"

$23.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 710-3086

Hex Bolt 3/8-16 x 6.25"

$

$

Not available

27

Cub Cadet 02002426

Weight Bar

Variations

02002426-0637

Cub Cadet 02002426-0637

BAR- WEIGHT CAT - POWDER BLACK (0637)

$196.99

$

Usually ships in 3-6 days

0

$178.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 710-3097

Carriage Bolt 3/8-16

$6.99

$

In Stock, Qty 5

0

29

Cub Cadet 710-3131

Hex Screw 1/2-13

$5.99

$

In Stock, only 1 left!

0

30

Cub Cadet 17201A-0637

Bag Frame Hangar Bracket

$76.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 710-0473

Machine Screw #10-24 x .50

$4.49

$

In Stock, only 1 left!

0

32

Cub Cadet 710-0604A

Screw 5/16-18 x .625

$4.99

$

In Stock, only 4 left!

0

33

Cub Cadet 712-0272

Hex Nut 10-24

$4.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 749-0745A-0637

Grass Bag Frame

$

$

Not available
