8526 (31AE6S73063) - Troy-Bilt Storm 26" Snow Thrower (2003) Auger Gearbox Assembly Parts Diagram

Storm 26" Snow Thrower

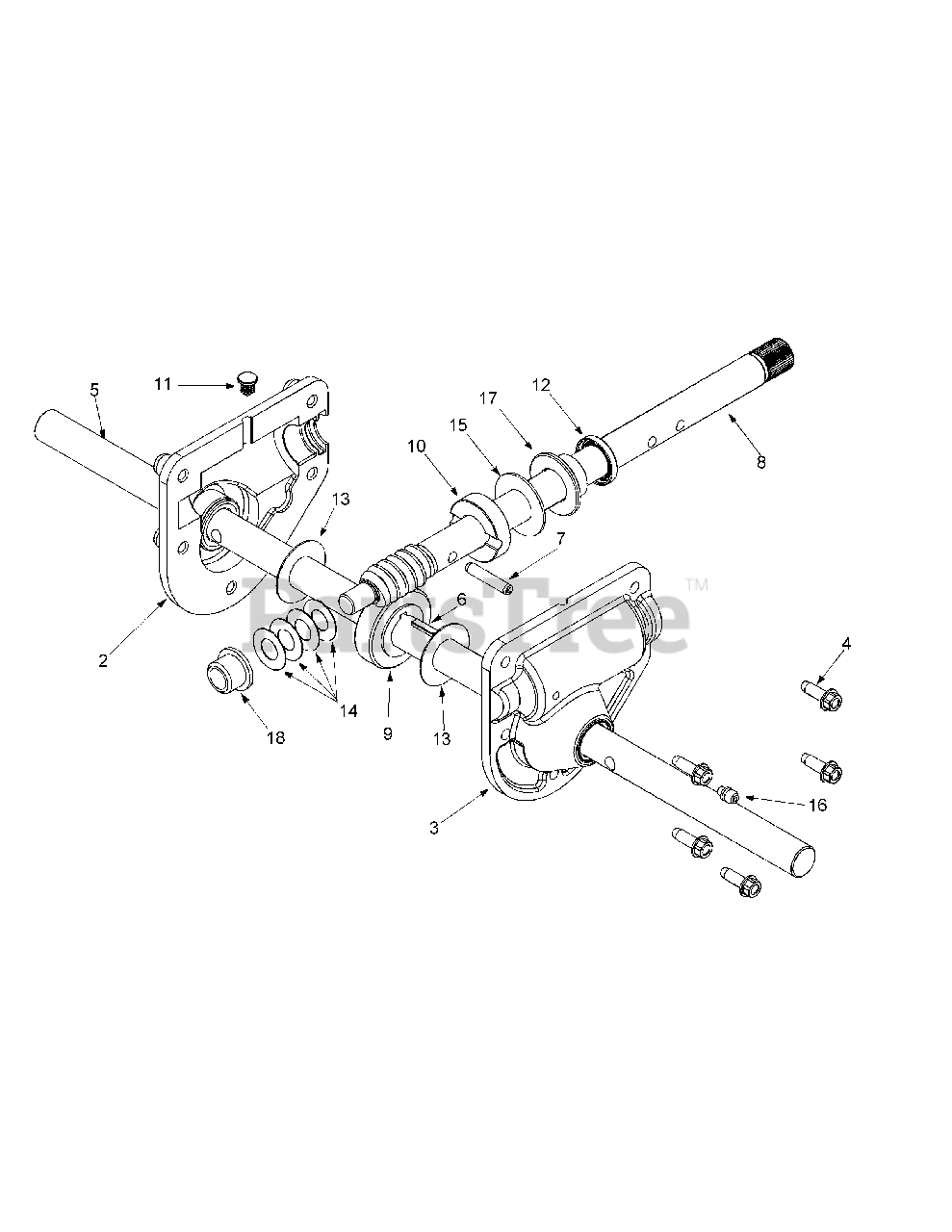

Auger Gearbox Assembly Parts Diagram

  • Title

1

Troy-Bilt 918-0415B

Auger Gearbox Ass’y Comp.

$411.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 918-0123A

Housing Assembly, RH

$48.99

$

In Stock, Qty 14

0

3

Troy-Bilt 918-0418A

Housing Assembly, LH

$57.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-0642

Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 711-0909A

26" Auger Axle

$

$

Not available

6

Troy-Bilt 914-0161

Hi-Pro Key

$4.49

$

In Stock, Qty 12

0

7

Troy-Bilt 915-0143

Spirol Pin
(Superseded to 715-0143)

$

$

Not available

8

Troy-Bilt 717-0526

Worm Shaft .75
(Superseded to 717P0526)

$101.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 917-0528A

Worm Gear 20T
(Superseded to 917-04861)

$40.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 718-0186

Thrust .75 x .415

$7.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 721-0325

Plug 1/4 x .437

$4.49

$

In Stock, only 1 left!

0

12

Troy-Bilt 721-0327

Oil Seal .75 x 1.73

$6.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 936-0351

Fl-Wash. .760 x 1.5
(Superseded to 736-0351)

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 936-0369

Fl-Wash. .508 x 1.0
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 6

0

15

Troy-Bilt 936-0445

Fl-Wash. .76 x 1.50
(Superseded to 736-0445)

$

$

Not available

16

Troy-Bilt 937-3000

Lube Fitting 3/16 Drive

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 741-0662

Flange Bearing

$9.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 741-0663

Flange Bearing

$8.99

$

In Stock, Qty 20+

0
