854 (590-854-150) - Cub Cadet 54" Induction Air MCS Kit General Assembly Parts Diagram

54" Induction Air MCS Kit

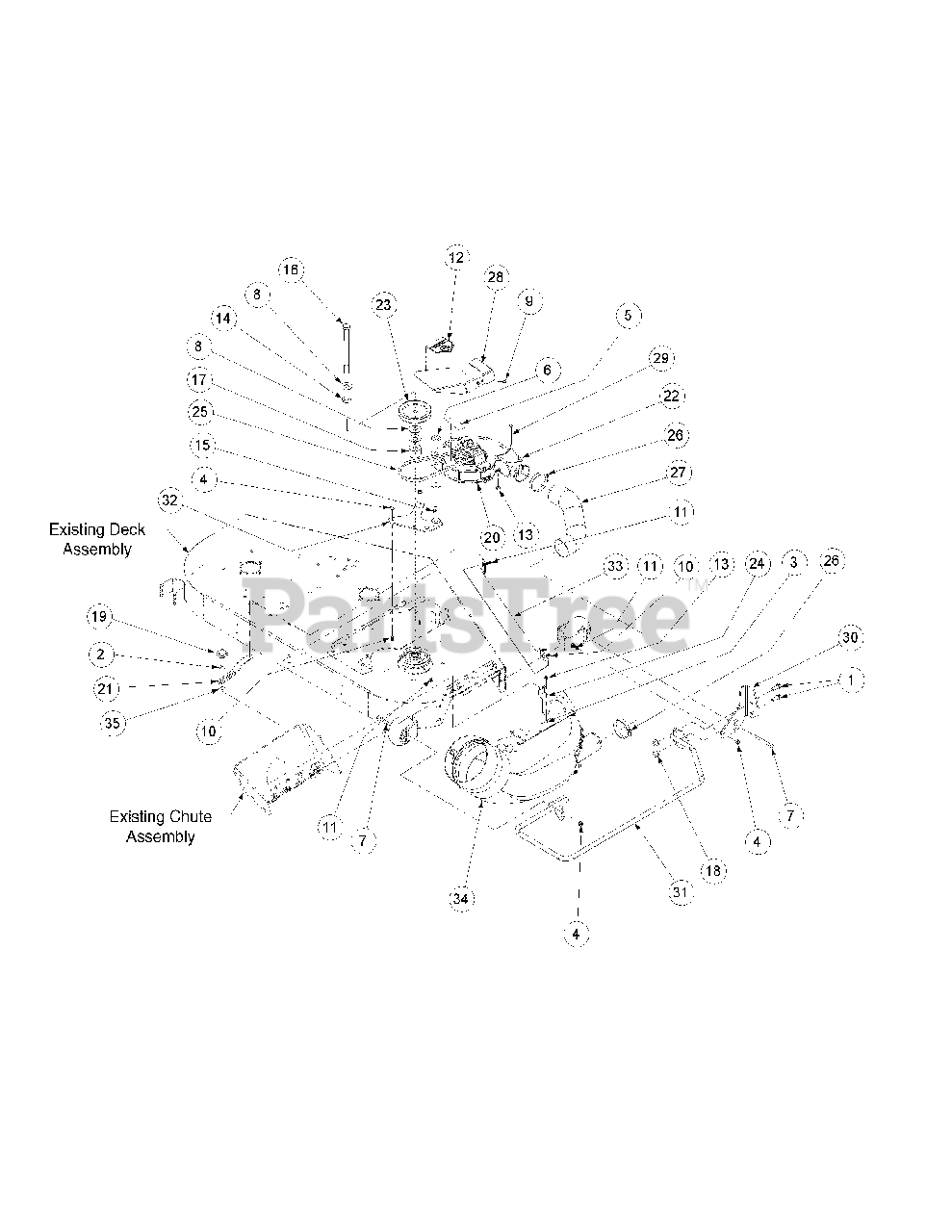

General Assembly Parts Diagram

  • Title

1

Cub Cadet 00002924

HHCS, 1/2-13 x 1.25

Note: NLA

$

$

Not available

2

Cub Cadet 00012158

Flat Washer, 3/8

$3.63

$

In Stock, Qty 20+

0

3

Cub Cadet 00013131

Hex Cap Screw, 1/4-20, .75

$5.48

$

In Stock, only 3 left!

0

4

Cub Cadet 00022560

Hex Nut Flange Lock, 3/8-16
(Superseded to 712-05007)

$3.41

$

In Stock, Qty 20+

0

5

Cub Cadet 777S32328

Decal, Warning Shield Missing

$4.74

$

In Stock, Qty 5

0

6

Cub Cadet 736-0188

Flat Washer, .76 x 1.49 x .06

$3.45

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0944

HHCS, 3/8-16 x 4.50

$9.25

$

In Stock, Qty 8

0

8

Cub Cadet 736-3014

Flat Washer, .781 ID x 2.00 OD x .105

$3.58

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0599

Screw, TT, 1/4-20, 0.5, Hex Index Washer

$3.52

$

In Stock, Qty 20+

0

10

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$4.40

$

In Stock, Qty 13

0

11

Cub Cadet 710-3034

Carriage Screw, 3/8-16 x 1.25

$3.32

$

In Stock, Qty 20+

0

12

Cub Cadet 01002166

Decal, Danger Hands & Feet

$9.89

$

Usually ships in 5-10 days

0

13

Cub Cadet 912-3027

Lock Nut, 1/4-20

$3.51

$

In Stock, Qty 20+

0

14

Cub Cadet 01003123

Spacer, .812 ID x .268 Lg.
(Superseded to 750-05553)

$8.02

$

In Stock, Qty 20+

0

15

Cub Cadet 01003537

Cotter Pin, .148 x 3.00

$

$

Not available

16

Cub Cadet 01005388

Hex Cap Screw, 3/4-16, 9.00
(Superseded to 710-05388)

$26.00

$

In Stock, Qty 5

0

17

Cub Cadet 01008018

Spacer, .76 OD x 2.00 OD x 1.39

$41.39

$

Usually ships in 5-10 days

0

18

Cub Cadet 01010119

Nut, 1/2-13, Flange Lock

$6.04

$

In Stock, only 3 left!

0

19

Cub Cadet 02000040

Plastic Knob

$16.98

$

In Stock, Qty 20+

0

20

Cub Cadet N/A

Blower Assembly

$

$

Currently unavailable

21

Cub Cadet 02000315

Tension Assembly

$

$

Not available

22

Cub Cadet 02000316

Adaptor Tube

$

$

Not available

23

Cub Cadet 02000412

Pulley, V-Type 5.5 Dia.

$40.90

$

Usually ships in 5-10 days

0

24

Cub Cadet 02000712

Chute Stop Deflector Bracket

$

$

Not available

25

Cub Cadet 02000723

V-Belt
(Superseded to 02000723P)

$83.16

$

Usually ships in 5-10 days

0

26

Cub Cadet 02000717

Hose Clamp, 3.00 Dia.

$

$

Not available

27

Cub Cadet 02001313

Hose Duct

$106.60

$

Usually ships in 5-10 days

0

28

Cub Cadet 02000729

Deck Blower Deflector Cover

$77.02

$

Usually ships in 5-10 days

0

29

Cub Cadet 02000730

HHCS, 1/4-20 x 3.50

$4.19

$

Usually ships in 5-10 days

0

30

Cub Cadet 02000745

MCS Guard Plate

$

$

Not available

31

Cub Cadet 02000743

MCS Guard Weldment

$

$

Not available

32

Cub Cadet 02000742

Pivot Weldment

$

$

Not available

33

Cub Cadet 02000751

Baffle Bracket

$

$

Not available

34

Cub Cadet 02000835

Chute Elbow Assembly

$270.74

$

Usually ships in 5-10 days

0

35

Cub Cadet 01008225

Push Retainer
(Superseded to 712-0229)

$2.89

$

In Stock, Qty 20+

0
