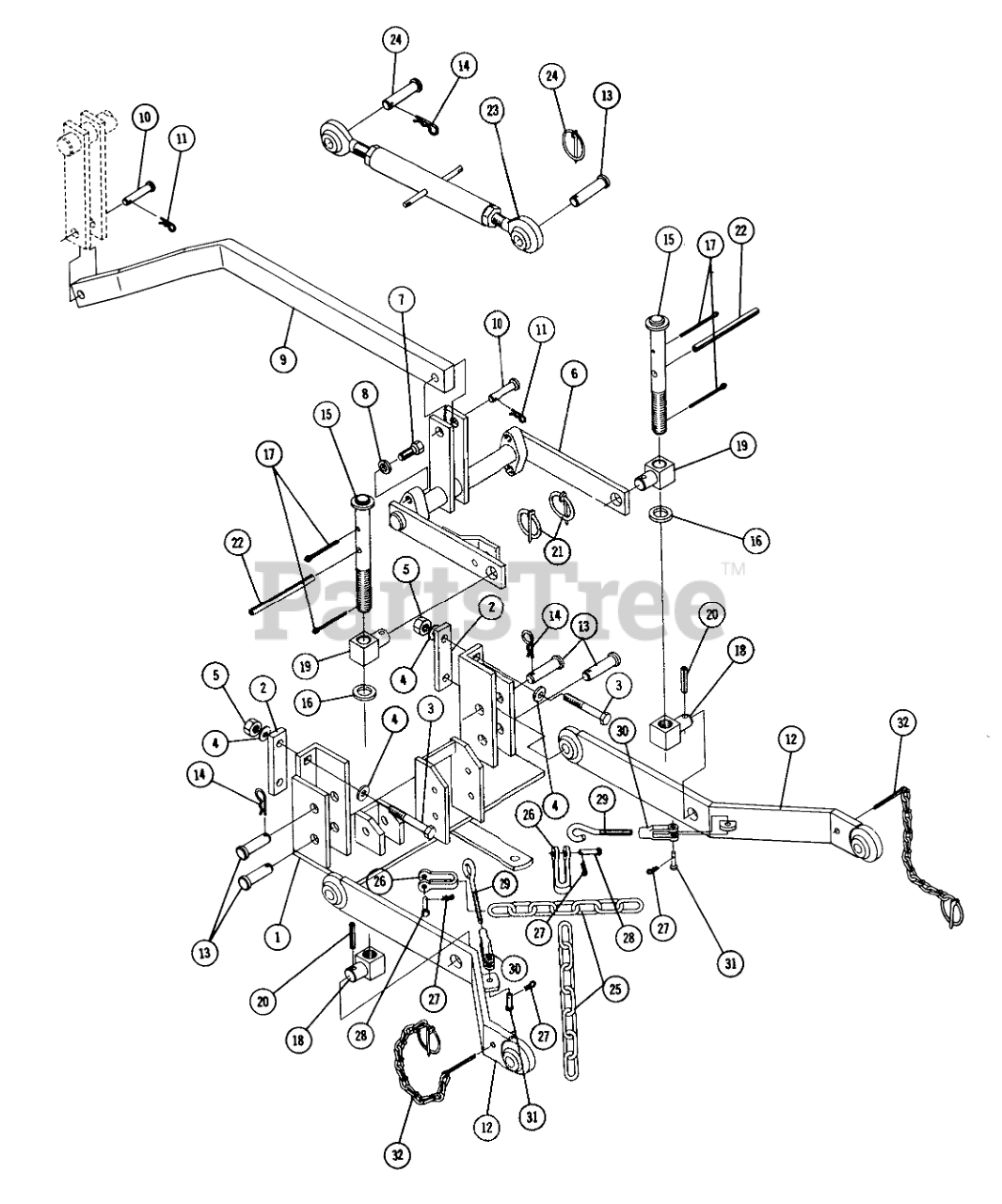

85412 - Toro 3-Point Hitch (1970) PARTS LIST FOR 3-POINT HITCH MODEL 8-5412 Parts Diagram

3-Point Hitch

PARTS LIST FOR 3-POINT HITCH MODEL 8-5412 Parts Diagram

  • Title

1

Toro 9841

Mounting Frame

$

$

Currently unavailable

2

Toro 3697

BRACKET-REAR LINK MOUNTING

$37.99

$

Usually ships in 3-6 days

0

3

Toro 908043-4

Bolt Hex 3/8-16 x 1

$

$

Currently unavailable

4

Toro 920009-4

Washer

$

$

Currently unavailable

5

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

6

Toro 9847

Hitch Lift

$

$

Currently unavailable

7

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

8

Toro 920083-4

Lockwasher

$

$

Currently unavailable

9

Toro 8783

Bar-Hitch Connecting

$

$

Currently unavailable

10

Toro 6854

Pin 1/2 Dia.

$

$

Not available

11

Toro 933512-4

Hairpin

$

$

Currently unavailable

12

Toro 8751

Lower Hitch Link
(Superseded to 104673)

$

$

Not available

13

Toro 8784

PIN 5/8 DIA LINK ATT

$

$

Not available

14

Toro 933506-4

Hairpen

$

$

Currently unavailable

15

Toro 8769

Lift Rod

$

$

Not available

16

Toro 920232

WASHER
(Superseded to 9202324)

$1.99

$

In Stock, only 3 left!

0

17

Toro 932026-4

Cotter Pin 5/32 x 1 1/4

$

$

Currently unavailable

18

Toro 8522

Pivot-Tapped

$

$

Not available

19

Toro 8521

Pivot-Plain

$

$

Currently unavailable

20

Toro 933215

ROLL PIN 1/4 X 1-1/4

$2.49

$

Usually ships in 3-6 days

0

21

Toro 8796

HITCH PIN ASSY

$

$

Not available

22

Toro 933240

PIN

$

$

Not available

23

Toro 8752

Link-Upper

$

$

Not available

24

Toro 8820

PIN HITCH UPPER LINK

$

$

Not available

25

Toro 8780

Chain

$

$

Not available

26

Toro 8781

Clevis

$

$

Not available

27

Toro 933505-4

Hairpin

$

$

Currently unavailable

28

Toro 932958-4

Clevis Pin

$

$

Currently unavailable

29

Toro 8779

Hook-Chain

$

$

Not available

30

Toro 8812

CLEVIS

$51.99

$

Usually ships in 3-6 days

0

31

Toro 932121-4

Pin

$

$

Currently unavailable

32

Toro 8795

Klik Pin
(Superseded to 283-76)

$

$

Not available
