85422 - Toro 3-Point Hitch (1978)

3-Point Hitch

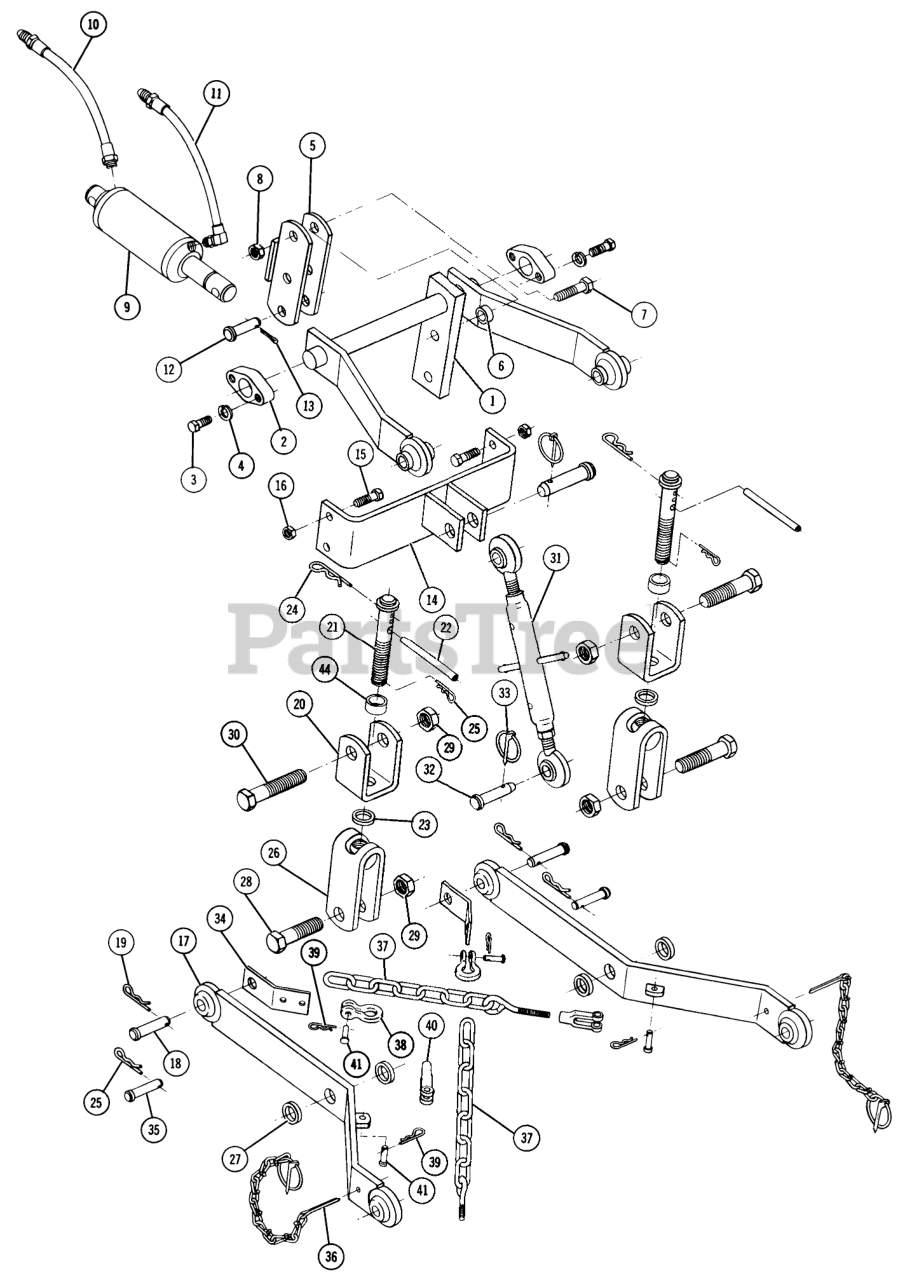

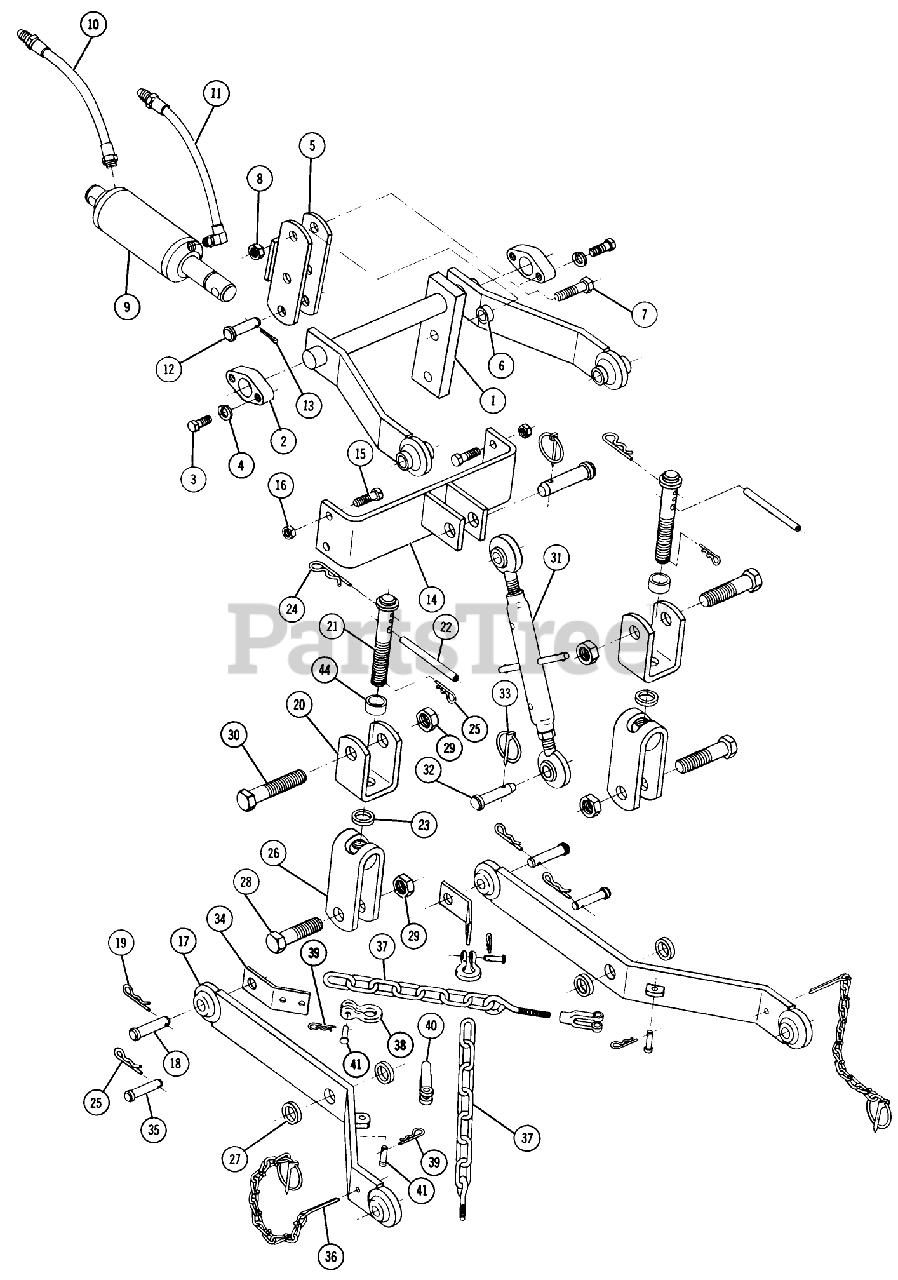

85422 - Toro 3-Point Hitch (1978) > Parts Diagrams (1) > 3-POINT HITCH (FACTORY ORDER NO. 8-5422) (FOR 1973 18HP AUTOMATIC-1974 &1975 D SERIES TRACTORS)

  • Title
102100

1

Lift Assembly

Part# 102100

OEM Warranty Repair Part for Toro

Not available

8340

2

BLOCK R

Part# 8340

OEM Warranty Repair Part for Toro

Not available

908034

3

BOLT

Part# 908034 (Superseded to 323-6)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.90

920083

4

LOCKWASHER

Part# 920083 (Superseded to 3253-21)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.18

102104

5

Pivot Assembly

Part# 102104

OEM Warranty Repair Part for Toro

Not available

9118

6

SPACER

Part# 9118

OEM Warranty Repair Part for Toro

Not available

908062

7

HEX HD CAP SCREW

Part# 908062

OEM Warranty Repair Part for Toro

Not available

915665

8

Nut

Part# 915665 (Superseded to 3296-23)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.77

8365

9

Cylinder

Part# 8365

OEM Warranty Repair Part for Toro

Not available

102174

10

Hose-Hydraulic

Part# 102174

OEM Warranty Repair Part for Toro

Not available

102287

11

Hose-Hydraulic

Part# 102287

OEM Warranty Repair Part for Toro

Not available

8715

12

PIN CLEVIS .50 DIA

Part# 8715

OEM Warranty Repair Part for Toro

Not available

932017

13

See Supercession: 9320174

Part# 932017 (Superseded to 9320174)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.35

102096

14

Upper Link Assembly

Part# 102096

OEM Warranty Repair Part for Toro

Not available

908035

15

Bolt

Part# 908035 (Superseded to 323-7)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.23

915663

16

NUT

Part# 915663 (Superseded to 3296-39)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.05

104673

17

ASSY LOWER HITCH LNK B

Part# 104673

OEM Warranty Repair Part for Toro

Not available

8784

18

PIN 5/8 DIA LINK ATT

Part# 8784

OEM Warranty Repair Part for Toro

Not available

933506

19

Hairpin

Part# 933506 (Superseded to 9335064)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.49

102091

20

LIFT BAR

Part# 102091

OEM Warranty Repair Part for Toro

Not available

104669

21

Adjusting Rod

Part# 104669

OEM Warranty Repair Part for Toro

Not available

933240

22

PIN

Part# 933240

OEM Warranty Repair Part for Toro

Not available

920232

23

WASHER

Part# 920232 (Superseded to 9202324)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.95

933506

24

Hairpin

Part# 933506 (Superseded to 9335064)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.49

933505

25

Hairpin Cotter

Part# 933505 (Superseded to 9335054)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.07

102109

26

Adjuster

Part# 102109

OEM Warranty Repair Part for Toro

Not available

8244

27

SPACER

Part# 8244

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.17

908105

28

Bolt 3/-10 x 3

Part# 908105

OEM Warranty Repair Part for Toro

Not available

915610

29

E.S. Nut 3/4-10

Part# 915610

OEM Warranty Repair Part for Toro

Not available

908106

30

Bolt 3/-10 X 3 1/2

Part# 908106

OEM Warranty Repair Part for Toro

Not available

8752

31

Link-Upper

Part# 8752

OEM Warranty Repair Part for Toro

Not available

8820

32

PIN HITCH UPPER LINK

Part# 8820

OEM Warranty Repair Part for Toro

Not available

8796

33

HITCH PIN ASSY

Part# 8796

OEM Warranty Repair Part for Toro

Not available

8774

34

BRKT CHAIN ATTACHING

Part# 8774

OEM Warranty Repair Part for Toro

Not available

8715

35

PIN CLEVIS .50 DIA

Part# 8715

OEM Warranty Repair Part for Toro

Not available

8795

36

Klik Pin

Part# 8795 (Superseded to 283-76)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.64

102112

37

Sway Chain

Part# 102112

OEM Warranty Repair Part for Toro

Not available

105820

38

Clevis

Part# 105820 (Superseded to 79-2280)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.58

933503

39

USE 933503P PIN

Part# 933503

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.79

8812

40

CLEVIS

Part# 8812

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $29.59

932121

41

PIN

Part# 932121

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.32

101847

42

Dipstick

Part# 101847 (Superseded to 101847-03)

OEM Warranty Repair Part for Toro

Not available

102273

43

Nipple

Part# 102273

OEM Warranty Repair Part for Toro

Not available

100676

44

Spacer

Part# 100676

OEM Warranty Repair Part for Toro

Not available

105821

45

Clevis Pin

Part# 105821 (Superseded to 9329584)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.60
