85518 - Toro Clevis Hitch CLEVIS HITCH ASSEMBLY Parts Diagram

Clevis Hitch

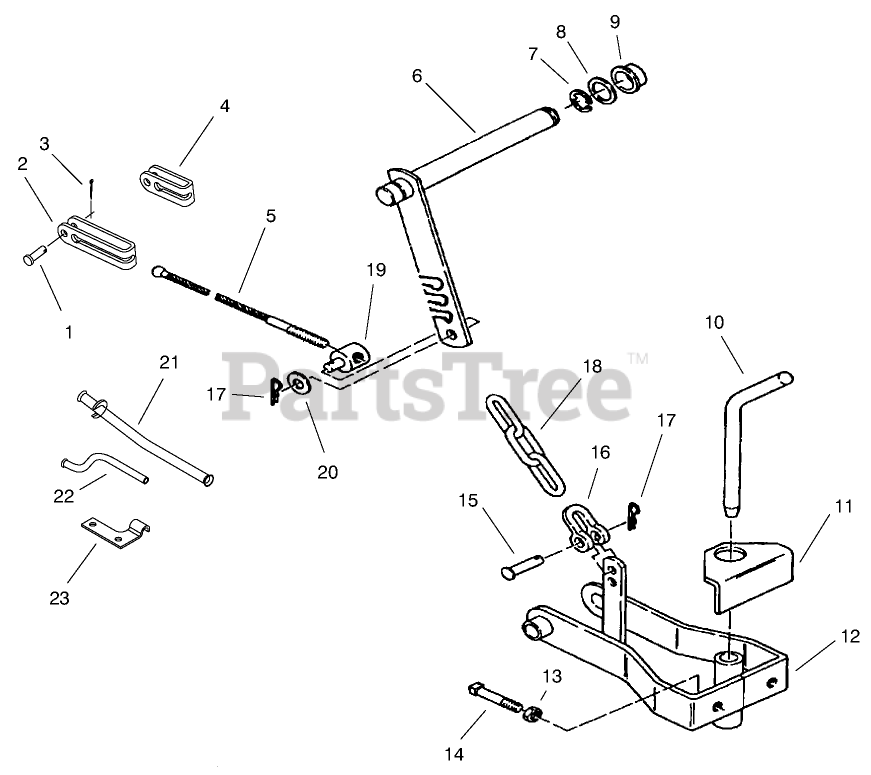

CLEVIS HITCH ASSEMBLY Parts Diagram

  • Title

1

Toro 9321204

PIN-CLEVIS

$4.99

$

Usually ships in 3-6 days

0

2

Toro 108143

CLEVIS-LONG

$53.99

$

Usually ships in 3-6 days

0

3

Toro 9320004

Pin-Cotter
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 10

0

4

Toro 108145

CLEVIS-SHORT

$38.99

$

Usually ships in 3-6 days

0

5

Toro 108144

CABLE

$88.99

$

Usually ships in 3-6 days

0

6

Toro 110044

ASSY LEVER R
(Superseded to 110044-01)

$

$

Not available

7

Toro 5618

E-RING

$0.99

$

In Stock, Qty 15

0

8

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

9

Toro 108519

BUSHING-BRONZE

$15.99

$

In Stock, Qty 8

0

10

Toro 106942

PIN-HITCH

$

$

Not available

11

Toro 8089

PLATE ADJ HITCH R
(Superseded to 8089-03)

$43.99

$

In Stock, only 1 left!

0

12

Toro 108506

ASSY-HITCH R (NS)
(Superseded to 108506-01)

$

$

Not available

13

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 10

0

14

Toro 9095744

Screw-Sq Hd

$

$

Currently unavailable

15

Toro 105821

Clevis Pin
(Superseded to 9329584)

$

$

Not available

16

Toro 105820

Clevis
(Superseded to 79-2280)

$19.99

$

Usually ships in 3-6 days

0

17

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 14

0

18

Toro 110046

CHAIN LIFT
(Superseded to 92-7074)

$

$

Not available

19

Toro 104524

TRUNNION-CLUTCH ROD

$43.99

$

Usually ships in 3-6 days

0

20

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 105845

TUBE ASSY COMPLET R
(Superseded to 105845-01)

$130.99

$

Usually ships in 3-6 days

0

22

Toro 108315

TUBE-CONDUIT R
(Superseded to 108315-01)

$57.99

$

Usually ships in 3-6 days

0

23

Toro 108903

CLAMP-CONDUIT R
(Superseded to 108903-01)

$14.99

$

Usually ships in 3-6 days

0
