86 (0340029U) - International Harvester 32" Riding Mower (1975 & After) Mower Housing, Drive & Knife Unit (Side Discharge) Parts Diagram

32" Riding Mower

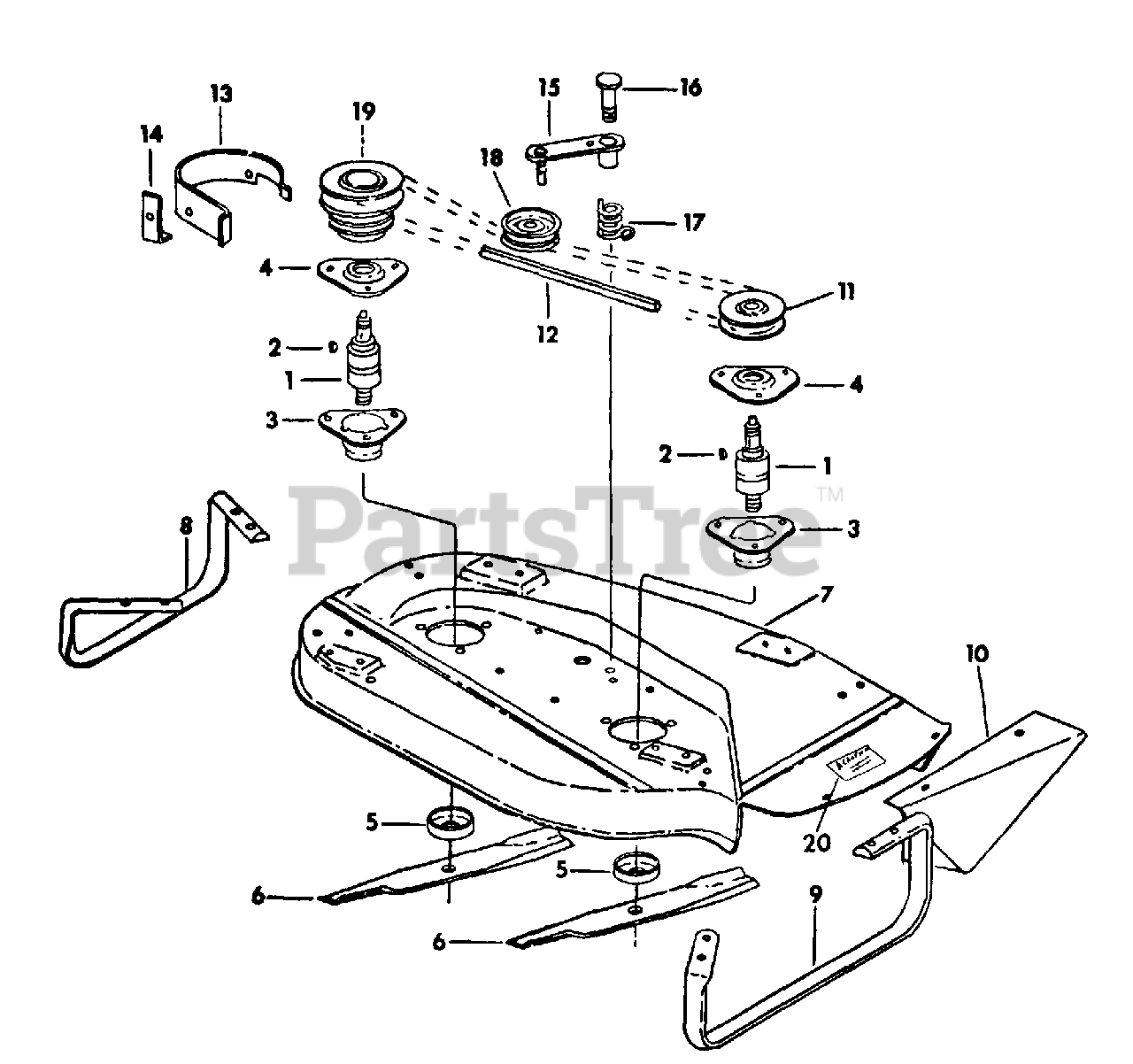

Mower Housing, Drive & Knife Unit (Side Discharge) Parts Diagram

  • Title

1

Cub Cadet IH-ST744

BEARING, BALL AND FAN TYPE

$

$

Not available

2

Cub Cadet IH-218211

KEY, 1/4 X 3/4 WOODRUFF
(Superseded to 914-0135)

$

$

Not available

3

Cub Cadet IH-492106-R1

HOUSING, SPINDLE
(Superseded to 903-0117)

$

$

Not available

4

Cub Cadet IH-492105-R1

CAP, SPINDLE HOUSING
(Superseded to 703-0115-0499)

$35.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-477796-R1

BOLT, 3/8 X 1 ZND SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-180124

BOLT, 3/8 X 1-1/4 TYPE 5
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120382

WASHER, 3/8 ZND REG LOCK
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 ZND HEX.
(Superseded to 712-0798)

$3.99

$

In Stock, only 2 left!

0

5

Cub Cadet IH-492108-R1

CUP, SPINDLE
(Superseded to 903-1387)

$23.99

$

In Stock, Qty 16

0

6

Cub Cadet IH-62453-C1

BLADE, 32 IN -COATED EDGE-

$

$

Not available

6

Cub Cadet IH-549130-R1

BLADE 32 IN
(Superseded to 742-3006)

$

$

Not available

Cub Cadet IH-615168-R1

WASHER, 25/32 X 1-1/2 X 11 GA

$

$

Not available

Cub Cadet IH-219753

NUT, 3/4-16 HEX. JAW
(Superseded to 912-3026)

$4.99

$

In Stock, Qty 10

0

7

Cub Cadet IH-549125-R4

HOUSING W/PRODUCT GRAPHIC, IH-57801-C2, 32 IN. MOWER

$

$

Currently unavailable

8

Cub Cadet IH-549127-R1

RUNNER, LH MOWER

$

$

Currently unavailable

9

Cub Cadet IH-549128-R1

RUNNER, RH MOWER

$

$

Not available

Cub Cadet IH-180077

BOLT, 5/16 X 3/4 TYPE 5
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16 TYPE 5
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet IH-57378-C1

SHIELD, DEFLECTOR 32 IN

$

$

Not available

Cub Cadet IH-180075

BOLT, 5/16 X 5/8 TYPE 5

$

$

Not available

Cub Cadet IH-120214

WASHER, 5/16 LOCK
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16 TYPE 5
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet IH-481095-R92

PULLEY, BLADE
(Superseded to 756-3026)

$58.99

$

Usually ships in 3-6 days

0

12

Cub Cadet IH-106990-C1

BELT, BLADE DRIVE
(Superseded to 954-3020)

$30.99

$

Usually ships in 3-6 days

0

13

Cub Cadet IH-106605-C1

SHIELD, BELT GUIDE

$

$

Not available

14

Cub Cadet IH-106603-C1

BRACKET, BELT GUIDE

$

$

Currently unavailable

Cub Cadet IH-552897-R1

SCREW, 1/4-20 X 1/2 HEX. WASHER-HD
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet IH-548457-R1

ARM ASSY, IDLER
(Superseded to 759-04324B)

$175.99

$

In Stock, Qty 19

0

Cub Cadet IH-385525-R1

NUT, 3/8-16 CAP HEX LOCK
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet IH-486360-R1

BOLT, IDLER ARM PIVOT
(Superseded to 638-04012A)

$20.99

$

In Stock, Qty 20+

0

17

Cub Cadet IH-548458-R1

SPRING, TORSION
(Superseded to 932-3009)

$22.99

$

In Stock, Qty 20+

0

Cub Cadet IH-188755-R1

WASHER, 15/32 X 1-1/2 X 11 GA ZND
(Superseded to 736-3030)

$

$

Not available

Cub Cadet IH-120383

WASHER, 7/16 ZND REG LOCK
(Superseded to 936-0171)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-271501

NUT, 7/16-14 ZND HEX.
(Superseded to 912-3019)

$6.49

$

In Stock, only 4 left!

0

Cub Cadet IH-180122

SCREW, 3/8-16 X 1 ZND HEX-HD CAP
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-142619H

WASHER, 13/32 X 3/4 X 11 GA ZND
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-21403-R1

WASHER, .406 X 1.000 X .120

$

$

Not available

Cub Cadet IH-120377

NUT, 3/8-16 ZND HEX.
(Superseded to 712-0798)

$3.99

$

In Stock, only 2 left!

0

18

Cub Cadet IH-58391-C1

PULLEY, IDLER
(Superseded to 956-3024)

$

$

Not available

19

Cub Cadet IH-107160-C1

PULLEY, LH SPINDLE

$

$

Not available

20

Cub Cadet IH-57801-C2

PRODUCT GRAPHIC, CAUTION

$

$

Not available
