860 (590-860-150) - Cub Cadet 72" Snow Blade att2 General Assembly Parts Diagram

72" Snow Blade

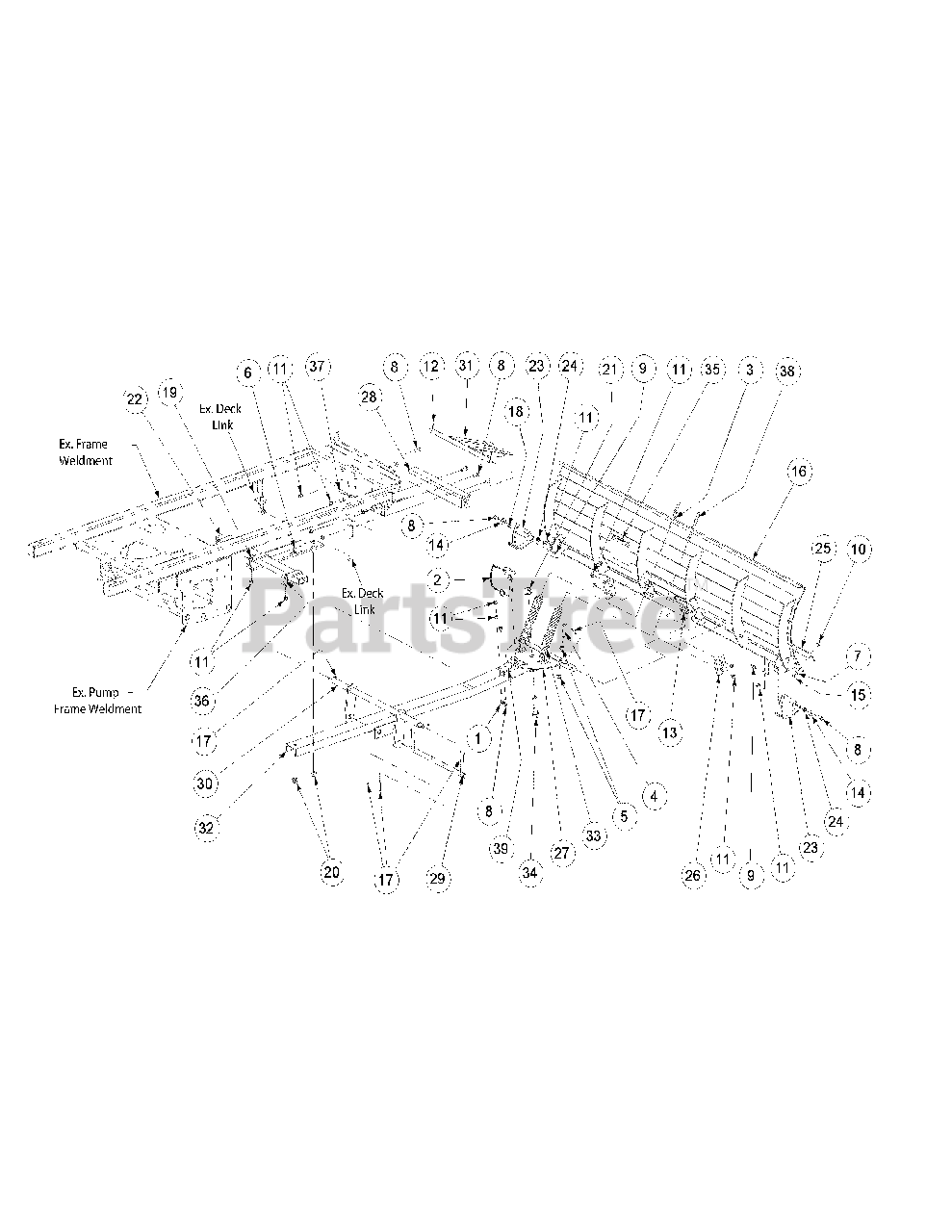

General Assembly Parts Diagram

  • Title

1

Cub Cadet 00008495

Hex Cap Screw:3/8-16 x 1.75

$7.49

$

In Stock, only 3 left!

0

2

Cub Cadet 01004659

Sulky Pin
(Superseded to 711-05731)

$

$

Not available

3

Cub Cadet 912-3017

Hex Nut 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, only 2 left!

0

4

Cub Cadet 00010956

Hex Cap Screw:1/2-13 x 2.0

$

$

Not available

5

Cub Cadet 00010957

Hex Nut:1/2-13

Note: NLA

$

$

Not available

6

Cub Cadet 00011951

Hex Cap Screw:1/2-13 x 1.50

$

$

Not available

7

Cub Cadet 00012168

Washer:5/16

$

$

Not available

8

Cub Cadet 00012171

Hex Cap Screw:3/8-16 x 1.0

$3.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 00012191

Clevis Pin:5/16 x 1.0

$

$

Not available

10

Cub Cadet 00020508

Carriage Bolt:5/16-18 x .75

$6.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 00061052

Cotter Pin:1/8 x 1.0:SS

$4.99

$

In Stock, only 1 left!

0

13

Cub Cadet 710-3005

Hex Cap Screw, 3/8 -16 x 1.25

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0258

Washer, .385 x 1.0 OD x .135

$4.99

$

In Stock, Qty 10

0

15

Cub Cadet 712-3004A

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 02002076

Snow Blade Weldment

$

$

Not available

17

Cub Cadet 714-0162

Cotter Pin, 5/32, 1.25

$5.49

$

In Stock, Qty 20+

0

18

Cub Cadet 914-0104

Cotter Pin, .072 x 1.12 Lg
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 10

0

19

Cub Cadet 01005810

Hex Cap Screw:3/8-16 x 2.0

$3.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01010119

Flange Lock Nut, 1/2-13

$7.99

$

In Stock, only 1 left!

0

21

Cub Cadet 02000402

Nut, 3/4-16, Hex Flange

$13.99

$

In Stock, only 2 left!

0

22

Cub Cadet 02001478

Rear Support Weldment

$

$

Not available

23

Cub Cadet 02001642

Skid Plate Weldment

$

$

Not available

24

Cub Cadet 02001617

Skid Plate Spacer

$

$

Not available

25

Cub Cadet 02001641

Snow Blade

$

$

Not available

26

Cub Cadet 02001635

Rod Bearing Pivot Plate

$

$

Not available

27

Cub Cadet 02001644

Pivot Blade Weldment

$

$

Not available

28

Cub Cadet 02001651

Front Stabilizer Bracket Weldment

$

$

Not available

29

Cub Cadet 02001652

Lift Bar

$

$

Not available

30

Cub Cadet 02001661

Lift Rod Weldment

$

$

Not available

31

Cub Cadet 02001668

Bracket Guide Weldment

$

$

Not available

32

Cub Cadet 02001696

Channel Support Weldment

$

$

Not available

33

Cub Cadet 02001843

Spring, Blade Adjust

$

$

Not available

34

Cub Cadet 02001895

Hex Cap Screw, 3/8-16 x 3.00

$

$

Not available

35

Cub Cadet 02001912

Label, Warning

$

$

Not available

36

Cub Cadet 02001979

Rear Support Spacer

$

$

Not available

37

Cub Cadet 02002001

Front Stabilizer Plate

$

$

Not available

38

Cub Cadet 02002007

Bolt:3/8-16 x 4.50
(Superseded to 710-05456)

$3.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 02002023

Retainer Pin Bracket

$

$

Not available
