860 M (1693650) - Simplicity 24" Snow Thrower, 8hp Engine & Frame Group - 8HP, Manual Start Parts Diagram

24" Snow Thrower, 8hp

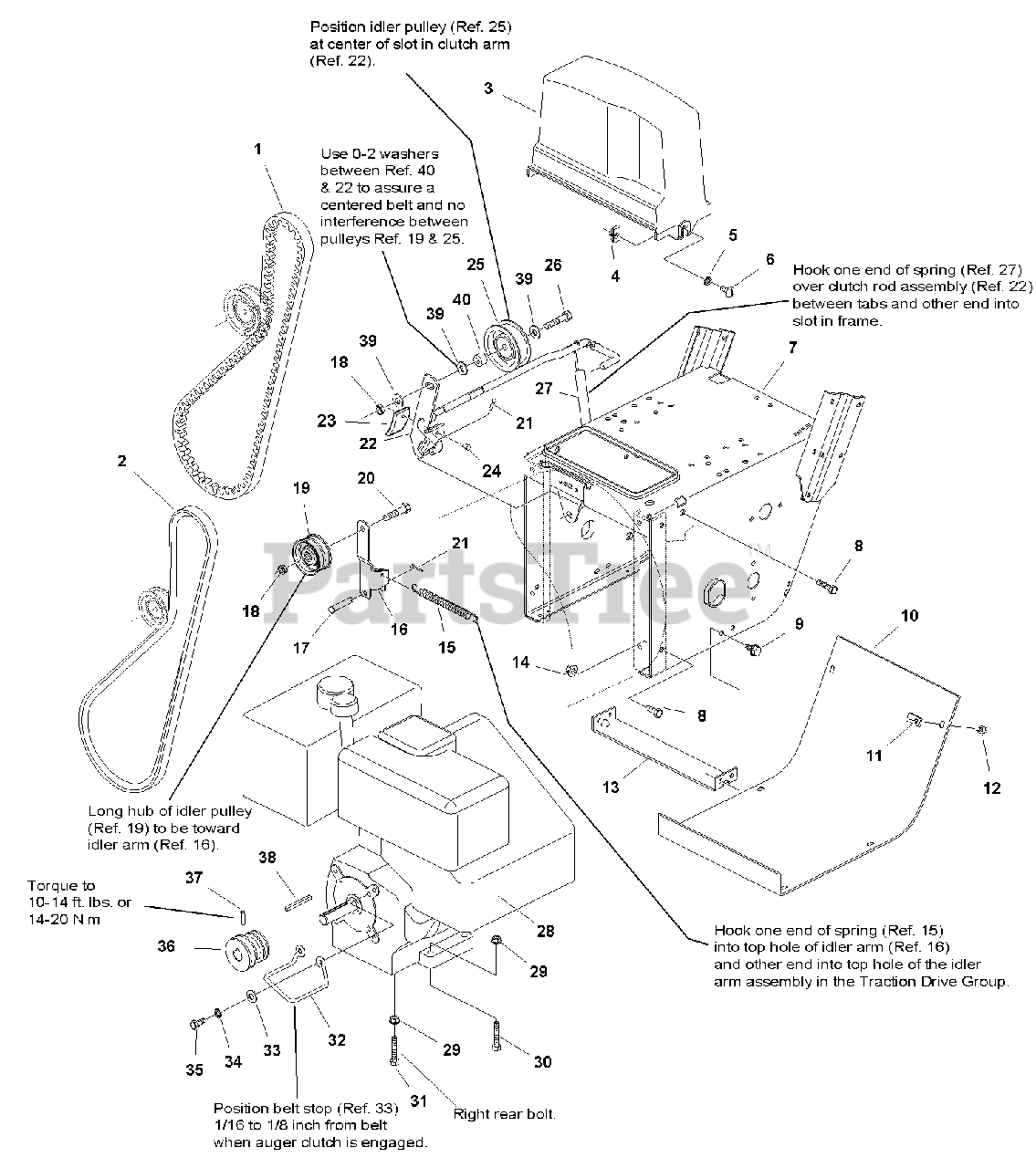

Engine & Frame Group - 8HP, Manual Start Parts Diagram

  • Title

1

Simplicity 1672732SM

BELT, Traction

$20.99

$

In Stock, Qty 20+

0

2

Simplicity 1666655SM

BELT, Drive Auger

$30.99

$

In Stock, Qty 7

0

3

Simplicity 1725287SM

GUARD, Belt
(Superseded to 706414)

$

$

Not available

4

Simplicity 1935255SM

NUT, Speed, 5/16-18

$3.49

$

In Stock, only 2 left!

0

5

Simplicity 2820426SM

LOCKWASHER, Ext. Tooth, 5/16

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 1918249SM

SCREW, Truss Head, 5/16-18 x 3/4

$4.99

$

In Stock, only 1 left!

0

7

Simplicity 1720408SM

FRAME, Main

$

$

Not available

8

Simplicity 1930591SM

CAPSCREW, Whizlock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 20+

0

9

Simplicity 1664847SM

CAPSCREW, Taptite, 5/16-18 x 3/8
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 1666374SM

COVER, Bottom

$

$

Not available

11

Simplicity 1926018SM

NUT, Speed, 1/4-20

$4.49

$

In Stock, Qty 12

0

12

Simplicity 1925003SM

CAPSCREW, Taptite,1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 1669198ASM

SUPPORT, Tie Bar
(Superseded to 1727004BMYP)

$15.99

$

In Stock, only 2 left!

0

14

Simplicity 1927557SM

NUT, Hex, Whizlock, 5/16-18
(Superseded to 703330)

$4.99

$

In Stock, only 4 left!

0

15

Simplicity 1727149SM

SPRING, Idler
(Superseded to 1687980)

$

$

Not available

16

Simplicity 1703046ASM

ARM, Idler, Traction

$10.99

$

Usually ships in 2-12 days

0

17

Simplicity 1665994SM

PIN
(Superseded to 703145)

$4.49

$

In Stock, only 3 left!

0

18

Simplicity 1928731SM

LOCKNUT, Jam, 3/8-16

$5.49

$

In Stock, only 2 left!

0

19

Simplicity 1668477SM

PULLEY, Idler

$25.99

$

In Stock, Qty 20+

0

20

Simplicity 1960647SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/2

$7.99

$

Usually ships in 2-12 days

0

21

Simplicity 1918451SM

PlN, Cotter, 1/8 x 3/4

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 1727058ASM

CLUTCH ROD & BRAKE ASSEMBLY
(Superseded to 1729646BMYP)

$124.99

$

In Stock, only 1 left!

0

23

Simplicity 1669313SM

PAD, Brake

$15.99

$

Usually ships in 2-12 days

0

24

Simplicity 2825160SM

RIVET, Pop

$4.49

$

In Stock, Qty 8

0

25

Simplicity 2154534SM

PULLEY

$34.99

$

In Stock, Qty 6

0

26

Simplicity 1921971SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4
(Superseded to 5025013X14SM)

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 1724503SM

SPRING, Extension

$21.99

$

In Stock, Qty 5

0

28

ENGINE, Tecumseh, 8 H.P. Manual Start - Engine Model # HMSK110, Engine Type # 155670V

$

$

Not available

29

Simplicity 1931277SM

NUT, Hex, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

30

Simplicity 1922127SM

CAPSCREW, Hex Head, 5/16-18 x 1 3/4
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 11

0

31

Simplicity 2821978

CAPSCREW, Hex Head, 5/16-18 x 2

$

$

Not available

32

Simplicity 1668174SM

GUIDE, Belt
(Superseded to 703356)

$25.99

$

Usually ships in 2-12 days

0

33

Simplicity 1919326SM

WASHER,11/32 x 3/4

$4.49

$

Usually ships in 2-12 days

0

34

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, Qty 8

0

35

Simplicity 1921515SM

CAPSCREW, Hex Head, 5/16-24 x 3/4
(Superseded to 703336)

$4.99

$

In Stock, Qty 11

0

36

Simplicity 1687071SM

PULLEY, Traction

$

$

Not available

37

Simplicity 1930540SM

SETSCREW, .625 LG

$4.99

$

In Stock, Qty 5

0

38

Simplicity 1729279SM

KEY, Parallel, 3/16 x 13/16 x 7/8
(Superseded to 703889)

$4.49

$

In Stock, Qty 11

0

39

Simplicity 1924940SM

WASHER, Flat,13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

40

Simplicity 2157081SM

SPACER

$9.49

$

In Stock, Qty 6

0
