860 M (1693763) - Simplicity 24" Snow Thrower, 8hp Handles and Controls Group Parts Diagram

24" Snow Thrower, 8hp

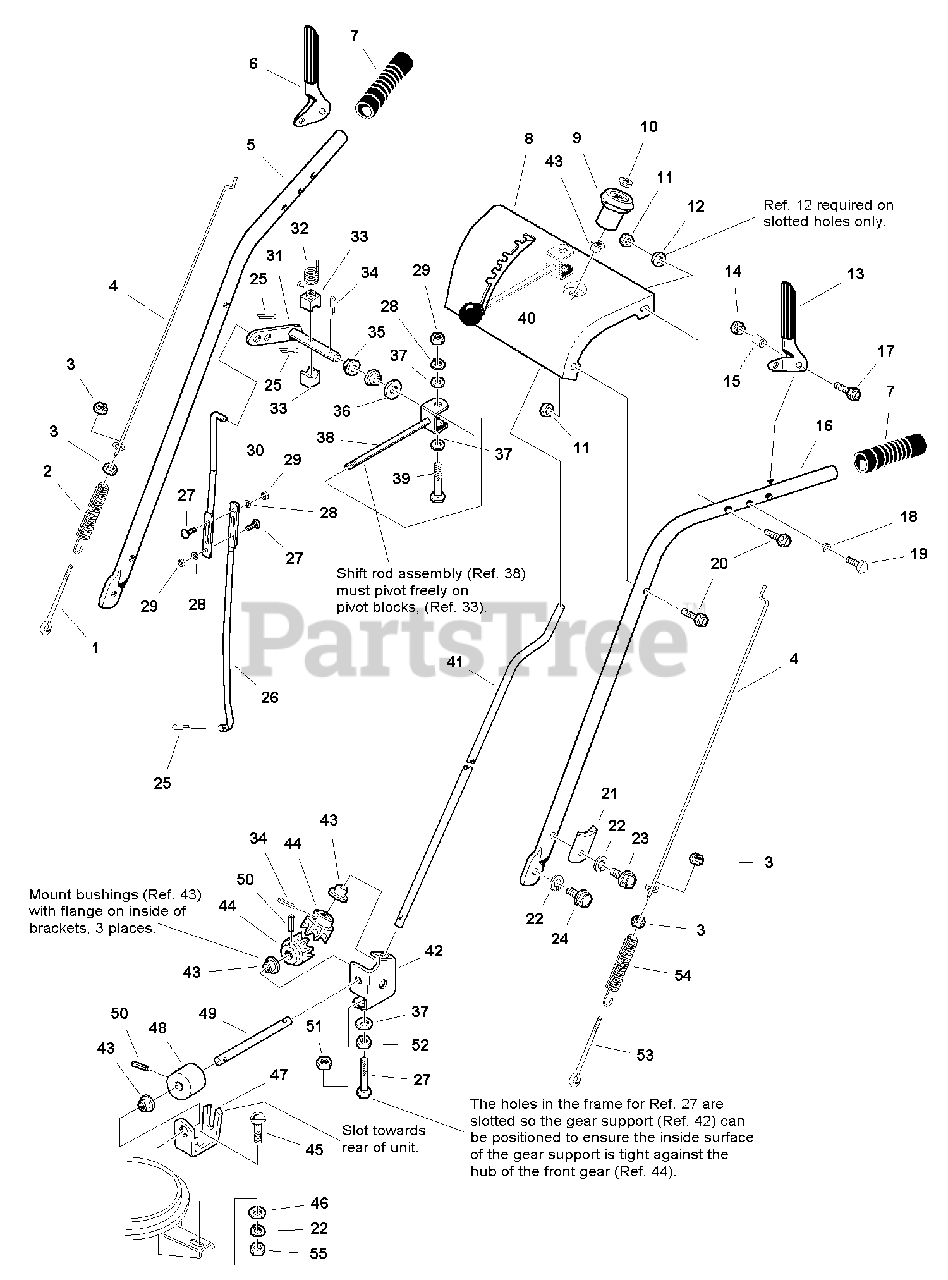

Handles and Controls Group Parts Diagram

  • Title

1

Simplicity 1668525SM

CLUTCH ROD, Lower, RH

$6.99

$

Usually ships in 2-12 days

0

2

Simplicity 1669323SM

SPRING, Extension

$36.99

$

In Stock, only 1 left!

0

3

Simplicity 1916621SM

NUT, Hex, #10-24 RH

$3.49

$

In Stock, only 2 left!

0

4

Simplicity 1715659SM

CLUTCH ROD, Traction & Auger Drive

$

$

Not available

5

Simplicity 1725434SM

HANDLE, RH
(Superseded to 1725434ASM)

$41.99

$

Usually ships in 2-12 days

0

6

Simplicity 1722638SM

LEVER, Auger Clutch, RH
(Superseded to 1739783AYP)

$28.99

$

In Stock, only 1 left!

0

7

Simplicity 1726317SM

GRIP, Black Vinyl, for 1" Tube

$8.49

$

In Stock, only 3 left!

0

8

Simplicity 1722627A

DASHBOARD & SUPPORT ASSEMBLY

$

$

Not available

9

Simplicity 1714084SM

KNOB, Chute Control Spinner

$12.99

$

In Stock, Qty 5

0

10

Simplicity 1960093SM

PUSH NUT, 3/8
(Superseded to 703948)

$4.49

$

In Stock, Qty 11

0

11

Simplicity 1919438SM

NUT, Hex Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 12

0

12

Simplicity 1919326SM

WASHER, Flat 5/16

$4.49

$

In Stock, Qty 14

0

13

Simplicity 1722667SM

LEVER, Traction Drive Clutch, LH

$37.99

$

In Stock, only 1 left!

0

14

Simplicity 1923358SM

NUT, Hex, Centerlock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

15

Simplicity 1715655SM

SPACER, Large

$7.99

$

Usually ships in 2-12 days

0

16

Simplicity 1721563SM

HANDLE, LH
(Superseded to 1725433SM)

$137.99

$

In Stock, only 1 left!

0

17

Simplicity 1922837SM

CAPSCREW, Hex Head, 1/4-20 x 1-1/2
(Superseded to 703234)

$4.49

$

In Stock, only 3 left!

0

18

Simplicity 1715654SM

SPACER, Small

$3.99

$

Usually ships in 2-12 days

0

19

Simplicity 1960556SM

SCREW, Taptite, Pan Head, Torx, 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

20

Simplicity 1921221SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, Qty 7

0

21

Simplicity 1720452SM

CLAMP, Tube, Saddle

$12.99

$

In Stock, only 1 left!

0

22

Simplicity 1917356SM

LOCKWASHER
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 1922127SM

CAPSCREW, Hex Head, 5/16-18 x 1 3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

24

Simplicity 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

25

Simplicity 1918447SM

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

26

Simplicity 1666255SM

ROD, Shift-Lower

$51.99

$

In Stock, only 1 left!

0

27

Simplicity 1960252SM

CARRIAGE BOLT, 1/4-20 X 5/8

$3.99

$

In Stock, only 1 left!

0

28

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

29

Simplicity 1916622SM

NUT, Hex Head, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

30

Simplicity 1720238SM

ROD, Shift-Upper

$

$

Not available

31

Simplicity 1720240SM

ROD & ARM ASSEMBLY, Pivot

$49.99

$

Usually ships in 2-12 days

0

32

Simplicity 1715123SM

SPRING, Torsion

$5.49

$

Usually ships in 2-12 days

0

33

Simplicity 1668524SM

BLOCK, Pivot
(Superseded to 703050)

$13.99

$

Usually ships in 2-12 days

0

34

Simplicity 1918452SM

PIN, Cotter
(Superseded to 703795)

$5.99

$

Usually ships in 2-12 days

0

35

Simplicity 1668185SM

BUSHING

$5.49

$

In Stock, only 2 left!

0

36

Simplicity 1924361SM

WASHER
(Superseded to 703451)

$4.49

$

In Stock, Qty 11

0

37

Simplicity 1921319SM

WASHER, Flat 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

38

Simplicity 1668523SM

ROD & CLEVIS ASSEMBLY
(Superseded to 703053)

$38.99

$

Usually ships in 2-12 days

0

39

Simplicity 1921159SM

CAPSCREW, Hex Head, 1/4-20 x 2-1/4
(Superseded to 704291)

$5.49

$

Usually ships in 2-12 days

0

40

Simplicity 1729255SM

KNOB, Internal Thread, 3/8-16

$12.99

$

In Stock, only 1 left!

0

41

Simplicity 1715658SM

ROD, Chute Control

$28.99

$

Usually ships in 2-12 days

0

42

Simplicity 1718793SM

SUPPORT, Gear

$19.99

$

Usually ships in 2-12 days

0

43

Simplicity 1667588SM

BUSHING, Nylon

$5.99

$

In Stock, Qty 15

0

44

Simplicity 1718593SM

GEAR, Steel, Universal (Supersedes Plastic Gear)

$14.99

$

In Stock, Qty 20+

0

45

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

46

Simplicity 1919326SM

WASHER, Flat 5/16

$4.49

$

In Stock, Qty 14

0

47

Simplicity 1611911SM

BRACKET, Worm Support

$9.99

$

Usually ships in 2-12 days

0

48

Simplicity 1668186SM

WORM, Chute

$41.99

$

In Stock, only 3 left!

0

49

Simplicity 1668187SM

ROD, Chute, Worm
(Superseded to 1725283SM)

$14.99

$

Usually ships in 2-12 days

0

50

Simplicity 2816168SM

PIN, Spring

$4.49

$

In Stock, Qty 20+

0

51

Simplicity 1960294SM

NUT, Hex Flange, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 1 left!

0

52

Simplicity 1960518SM

PUSH NUT, Bolt Retainer 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 14

0

53

Simplicity 1668526SM

CLUTCH ROD, Lower, LH

$

$

Not available

54

Simplicity 1707452SM

SPRING, Clutch Rod

$14.99

$

In Stock, only 1 left!

0

55

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
