860 S (1691778) - Simplicity 24" Snow Thrower, 8hp Engine & Frame Group Parts Diagram

24" Snow Thrower, 8hp

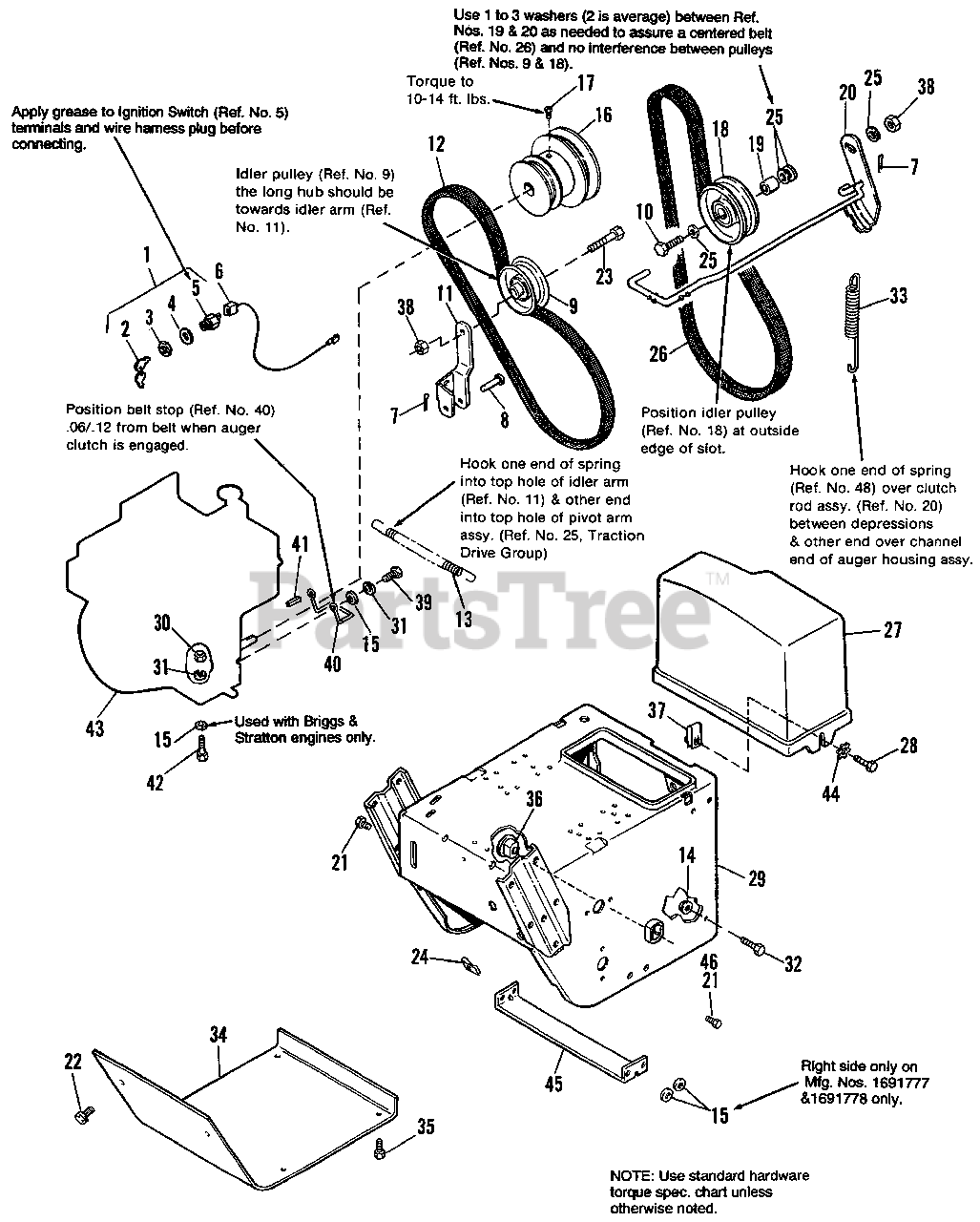

Engine & Frame Group Parts Diagram

  • Title

1

Simplicity 2177163SM

SWITCH, Key (Inc. Ref. Nos. 2, 3, 4 & 5) (Electric Start only)

$50.99

$

In Stock, only 1 left!

0

2

Simplicity 1717163SM

KEYS (Electric Start only)

$9.49

$

In Stock, Qty 7

0

3

Simplicity 2122234SM

NUT, Hex, 5/8-32 (Electric Start only)
(Superseded to 704229)

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 2818906

LOCKWASHER Int. 5/8 (Electric Start only)

$

$

Not available

5

SWITCH (See Ref No.1) (Electric Start only)

$

$

Not available

6

Simplicity 1667700

WIRE, Ground (Electric Start only)

$

$

Not available

7

Simplicity 1918451SM

PIN, Cotter, 1/8 x 3/4

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 1665994SM

PIN
(Superseded to 703145)

$4.49

$

In Stock, only 3 left!

0

9

Simplicity 1668477SM

PULLEY, Idler

$25.99

$

In Stock, Qty 11

0

10

Simplicity 1921971SM

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4
(Superseded to 5025013X14SM)

$4.49

$

In Stock, Qty 18

0

11

Simplicity 1703046ASM

ARM, Idler, Traction

$10.99

$

Usually ships in 2-12 days

0

12

Simplicity 1672732SM

BELT, Traction (Electric Start only)

$20.99

$

In Stock, Qty 9

0

12

Simplicity 1676461SM

BELT, Traction (Manual Start only)

$24.99

$

In Stock, only 2 left!

0

13

Simplicity 1727149SM

SPRING, Idler
(Superseded to 1687980)

$

$

Not available

14

Simplicity 1927557SM

NUT, Hex, Whizlock
(Superseded to 703330)

$4.99

$

In Stock, Qty 8

0

15

Simplicity 1919326SM

WASHER, Flat, 11/32 (Qty. 6 On Electric Start)

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 1687071SM

PULLEY, Engine (Electric Start only)

$

$

Not available

16

Simplicity 1676493SM

PULLEY, Engine (Manual Start only)

$95.99

$

Usually ships in 2-12 days

0

17

Simplicity 1930540SM

SETSCREW, Socket Hd., 5/16-18 x 5/8

$4.99

$

In Stock, Qty 7

0

18

Simplicity 1726348SM

PULLEY ASSY.

$26.99

$

In Stock, only 2 left!

0

19

Simplicity 2157081SM

SPACER

$9.49

$

In Stock, Qty 9

0

20

Simplicity 1727058ASM

CLUTCH ROD & BRAKE ASSY.
(Superseded to 1729646BMYP)

$124.99

$

In Stock, only 1 left!

0

21

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/8
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 1927429SM

SCREW, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 14

0

23

Simplicity 1921968SM

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4 (1691900 & 1691946)

$4.49

$

In Stock, only 2 left!

0

24

Simplicity 1926018SM

NUT, Speed, 1/4-20

$4.49

$

In Stock, Qty 12

0

25

Simplicity 1924940SM

WASHER, Flat, 13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

26

Simplicity 1666655SM

BELT, Auger Drive (Electric Start only)

$30.99

$

In Stock, only 2 left!

0

26

Simplicity 1676460SM

BELT, Auger Drive (Manual Start only)

$30.99

$

In Stock, only 2 left!

0

27

Simplicity 1725287SM

GUARD, Belt
(Superseded to 706414)

$41.99

$

Usually ships in 2-12 days

0

28

Simplicity 1918249SM

SCREW, Truss Hd., 5/16-18 x 3/4

$4.99

$

In Stock, only 1 left!

0

29

Simplicity 1612458

FRAME, Main

$

$

Not available

30

Simplicity 1931277SM

NUT, Hex, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

31

Simplicity 1917356SM

LOCKWASHER
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

32

Simplicity 1930591SM

CAPSCREW, Whizlock 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 9

0

33

Simplicity 1724503SM

SPRING, Brake

$21.99

$

In Stock, Qty 5

0

34

Simplicity 1666374SM

COVER, Bottom

$

$

Not available

35

Simplicity 1929000SM

SCREW, Tapttite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

36

Simplicity 1666001SM

BUSHING, Axle

$6.99

$

In Stock, Qty 16

0

37

Simplicity 2835255

NUT, Pal, 5/16-18

$

$

Not available

38

Simplicity 1928731SM

LOCKNUT, Jam, 3/8-16

$5.49

$

In Stock, only 2 left!

0

39

Simplicity 1921515SM

CAPSCREW, Hex. Hd., 5/16-24 x 3/4
(Superseded to 703336)

$4.99

$

In Stock, Qty 14

0

40

Simplicity 1668174SM

BELT STOP (Electric Start only)
(Superseded to 703356)

$25.99

$

Usually ships in 2-12 days

0

40

Simplicity 1676494

BELT STOP (Manual Start only)

$

$

Not available

41

Simplicity 1729279SM

KEY, 3/16 x 3/16 x 1-1/2 (Electric Start only)
(Superseded to 703889)

$4.49

$

In Stock, Qty 12

0

41

Simplicity 2805856SM

KEY, 1/4 x 1/4 x 1-1/2 (Manual Start only)

$3.49

$

In Stock, only 2 left!

0

42

Simplicity 1922127SM

CAPSCREW, Hex Hd., 5/16-18 x 1-3/4 (Electric Start only)
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 17

0

42

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

Note: (Manual Start only)

$4.99

$

In Stock, only 3 left!

0

43

ENGINE, Tecumseh, 8 H.P. Electric Start

$

$

Not available

43

ENGINE, Briggs & Stratton, 8 H.P. Manual Start

$

$

Not available

44

Simplicity 2820426SM

LOCKWASHER, Ext. Tooth, 5/16

$4.49

$

Usually ships in 2-12 days

0

45

Simplicity 1669198ASM

SUPPORT, Tie Bar
(Superseded to 1727004BMYP)

$15.99

$

In Stock, only 2 left!

0

46

Simplicity 1928729SM

SCREW, Taptite, 5/16-18 x 3/8 (1691777 & 1691778)

$5.49

$

In Stock, only 2 left!

0
