86032 - Toro 38" Side-Discharge Recycler Kit BAFFLE & BLADE ASSEMBLY Parts Diagram

38" Side-Discharge Recycler Kit

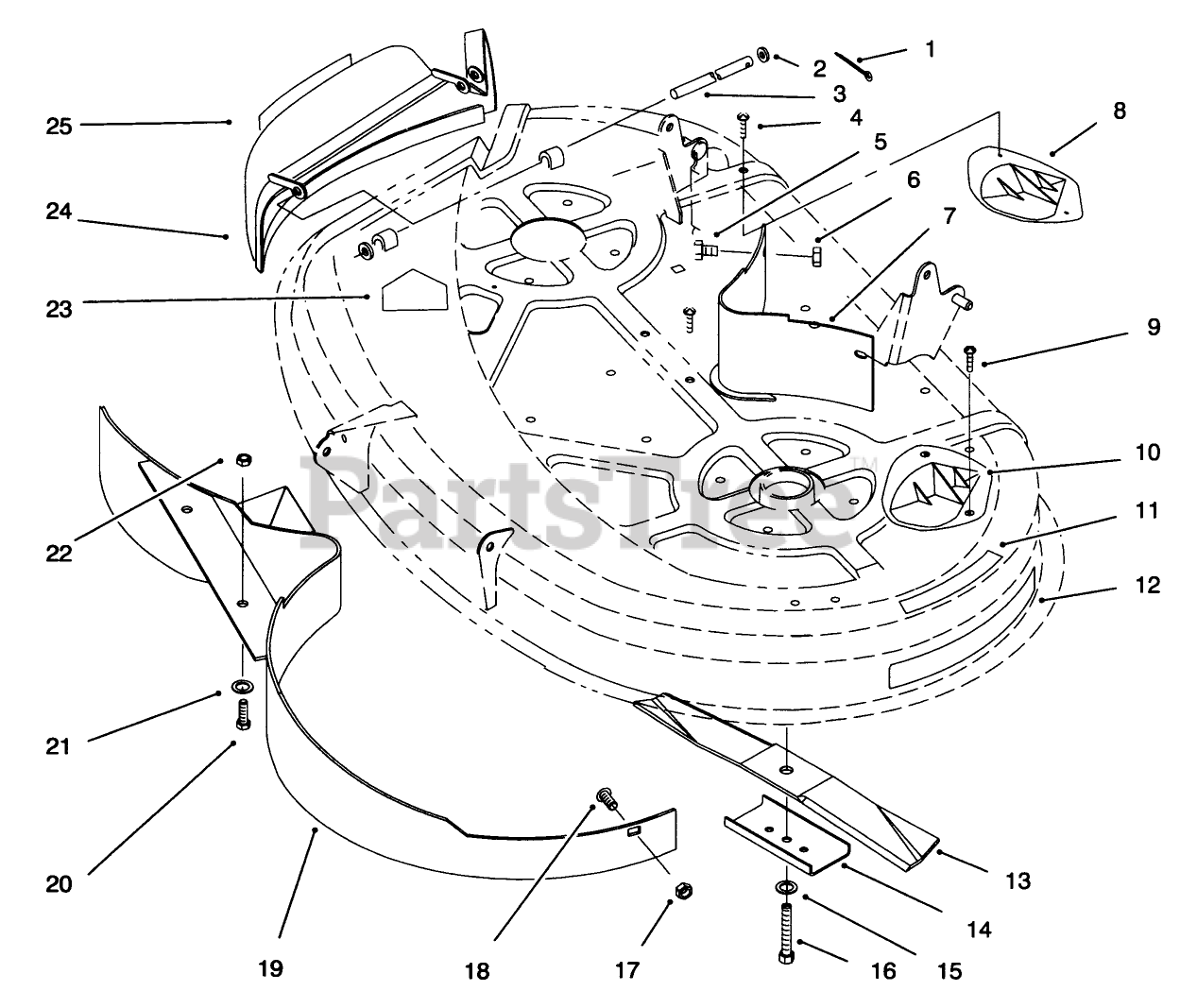

BAFFLE & BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 78-0820

ROD

$

$

Not available

4

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, only 3 left!

0

5

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

7

Toro 79-1640

Baffle-Rear
(Superseded to 79-1640-03)

$73.99

$

Usually ships in 3-6 days

0

8

Toro 80-4510

KICKER

$20.99

$

Usually ships in 3-6 days

0

9

Toro 32104-130

#8 X .625" PHILPS PAN H

$2.49

$

Usually ships in 3-6 days

0

10

Toro 76-2160

PLATE-KICKER

$17.99

$

In Stock, Qty 5

0

11

Toro 79-3140

DECAL-DANGER

$20.99

$

Usually ships in 3-6 days

0

12

Toro 92-7988

DECAL-RECYCLER
(Superseded to 106-0689)

$8.99

$

In Stock, Qty 20+

0

13

Toro 14-7799

BLADE KIT

$66.99

$

In Stock, only 2 left!

0

14

Toro 80-0510

Stiffener
(Superseded to 80-0510-03)

$18.99

$

In Stock, Qty 7

0

15

Washer (Ref.)

$

$

Not available

16

Bolt (Ref.)

$

$

Not available

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

19

Toro 79-1600

Baffle-38"
(Superseded to 79-1600-03)

$116.99

$

Usually ships in 3-6 days

0

20

Toro 323-5

SCREW-HH

$1.49

$

In Stock, Qty 10

0

21

Toro 2844

WASHER

$3.49

$

In Stock, Qty 20+

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 10

0

24

Toro 79-1680

Chute-Recycler
(Superseded to 92-5787)

$

$

Not available

25

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$11.99

$

In Stock, only 4 left!

0

Toro 79-3890

DECK-TEMPLATE FRONT

Note: Not illustrated

$

$

Not available

Toro 79-3900

DECK-TEMPLATE LEFT

Note: Not illustrated

$

$

Not available

Toro 79-3910

DECK-TEMPLATE RIGHT

Note: Not illustrated

$

$

Not available
