861 (590-861-100) - Cub Cadet Twin Rear Bagger for Enforcer 44", 48", 54" Mower att3 General Assembly Parts Diagram

Twin Rear Bagger for Enforcer 44", 48", 54" Mower

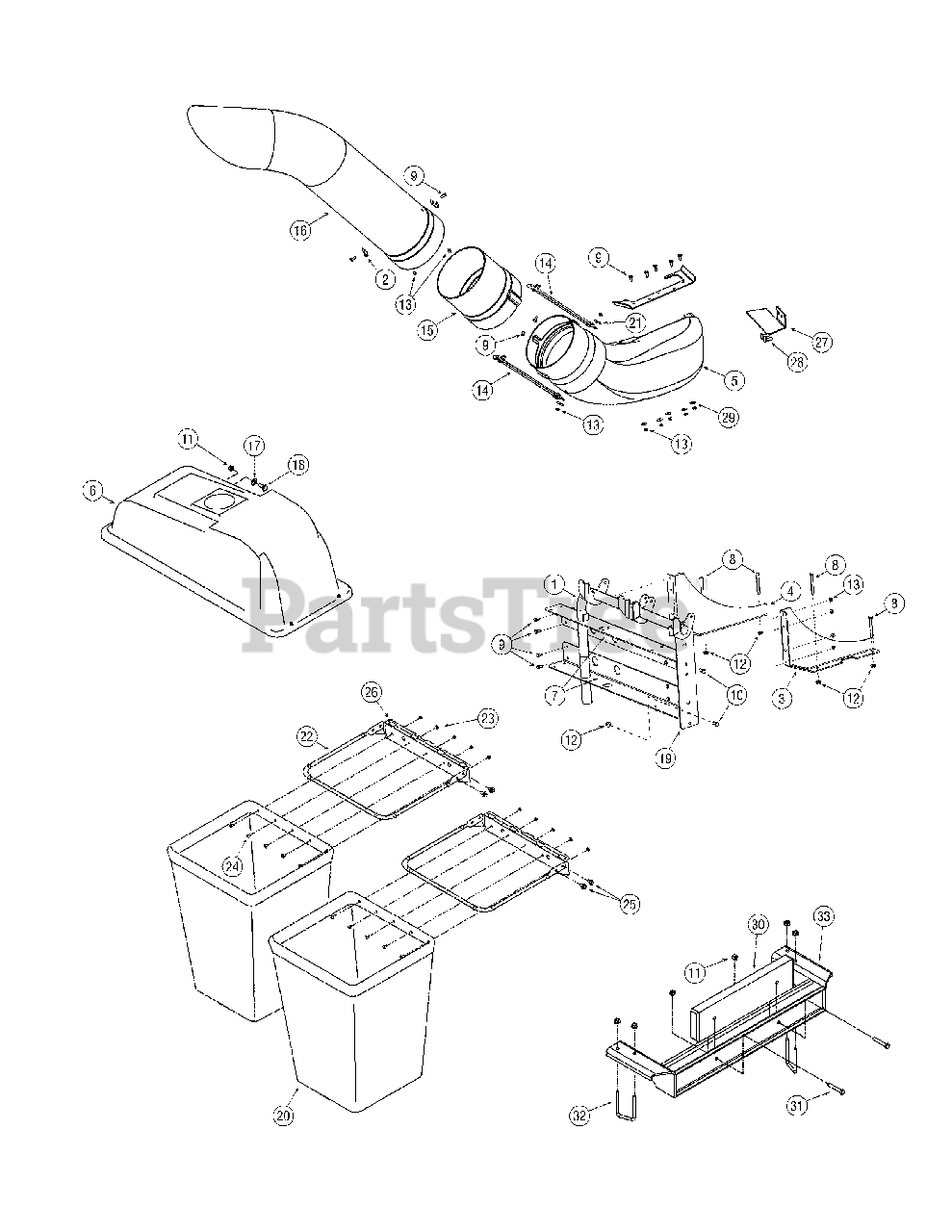

General Assembly Parts Diagram

  • Title

1

Cub Cadet 16592-0637

Support Assem. Catcher Cover

$205.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 96606

Retainer Hook Bracket

$7.99

$

In Stock, only 2 left!

0

3

Cub Cadet 603-04082-0637

Mounting Assembly: RH

$113.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-04083-0637

Mounting Assembly: LH

$113.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 731-04347A

Elbow Chute Assembly

$220.99

$

In Stock, only 1 left!

0

6

Cub Cadet 664-04017

Grass Catcher Cover

Note: NLA

$

$

Not available

7

Cub Cadet 703-05195-0637

Hanger Bracket

$117.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0176

Hex Bolt 5/16-18 x 2.75"

$4.99

$

In Stock, only 2 left!

0

9

Cub Cadet 710-0751

Hex Bolt 1/4-20 x .620"

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3008

Hex Bolt 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 912-0431

Flange Lock Nut 3/8-16

$5.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 912-3027

Hex Flange Lock Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 723-0476

Retainer Strap Assembly

$35.99

$

In Stock, only 2 left!

0

15

Cub Cadet 731-04423

8" Extension Chute

$

$

Not available

16

Cub Cadet 731-0926B

8" Catcher Tube

$150.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 936-0253

Belleville Washer
(Superseded to 736-0253)

$

$

Not available

18

Cub Cadet 938-0380

Shoulder Screw 3/8-16
(Superseded to 738-0380)

$8.49

$

In Stock, Qty 20+

0

19

Cub Cadet 783-0601-0637

Support Bracket

$37.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 964-0221

Grass Bag

$77.99

$

In Stock, Qty 20+

0

21

Cub Cadet 736-3092

Flat Washer

$4.49

$

In Stock, only 4 left!

0

22

Cub Cadet 749-0701A-0637

Grassbag Frame

$69.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 712-0272

Hex Nut

$4.49

$

In Stock, only 2 left!

0

24

Cub Cadet 710-0604A

Screw

$4.99

$

In Stock, Qty 13

0

25

Cub Cadet 710-0473

Machine Screw

$4.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 16591A-0637

Bag Frame Hangar Bracket

$69.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 783-05183

Baffle

Variations

Cub Cadet 783-05183-0637

BAFFLE-DISCHARGE - POWDER BLACK (0637)

$

$

Not available

$32.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 710-3097

Carriage Bolt 3/8-16

$6.99

$

In Stock, Qty 5

0

29

Cub Cadet 736-0270

Bell Washer

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 02002426

Weight Bar

Variations

Cub Cadet 02002426-0637

BAR- WEIGHT CAT - POWDER BLACK (0637)

$196.99

$

Usually ships in 3-6 days

0

$178.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 710-3011

Hex Head Screw 3/8-16

$7.49

$

In Stock, Qty 20+

0

32

Cub Cadet 710-04170

U-bolt 3/8-16

$23.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 903-04307-0637

Weight Bar Assembly Bracket

$

$

Not available
