8628 R - Troy-Bilt 20" Walk-Behind Mower (SN: 340130300101 - 340130399999) MAIN ASSEMBLY Parts Diagram

20" Walk-Behind Mower

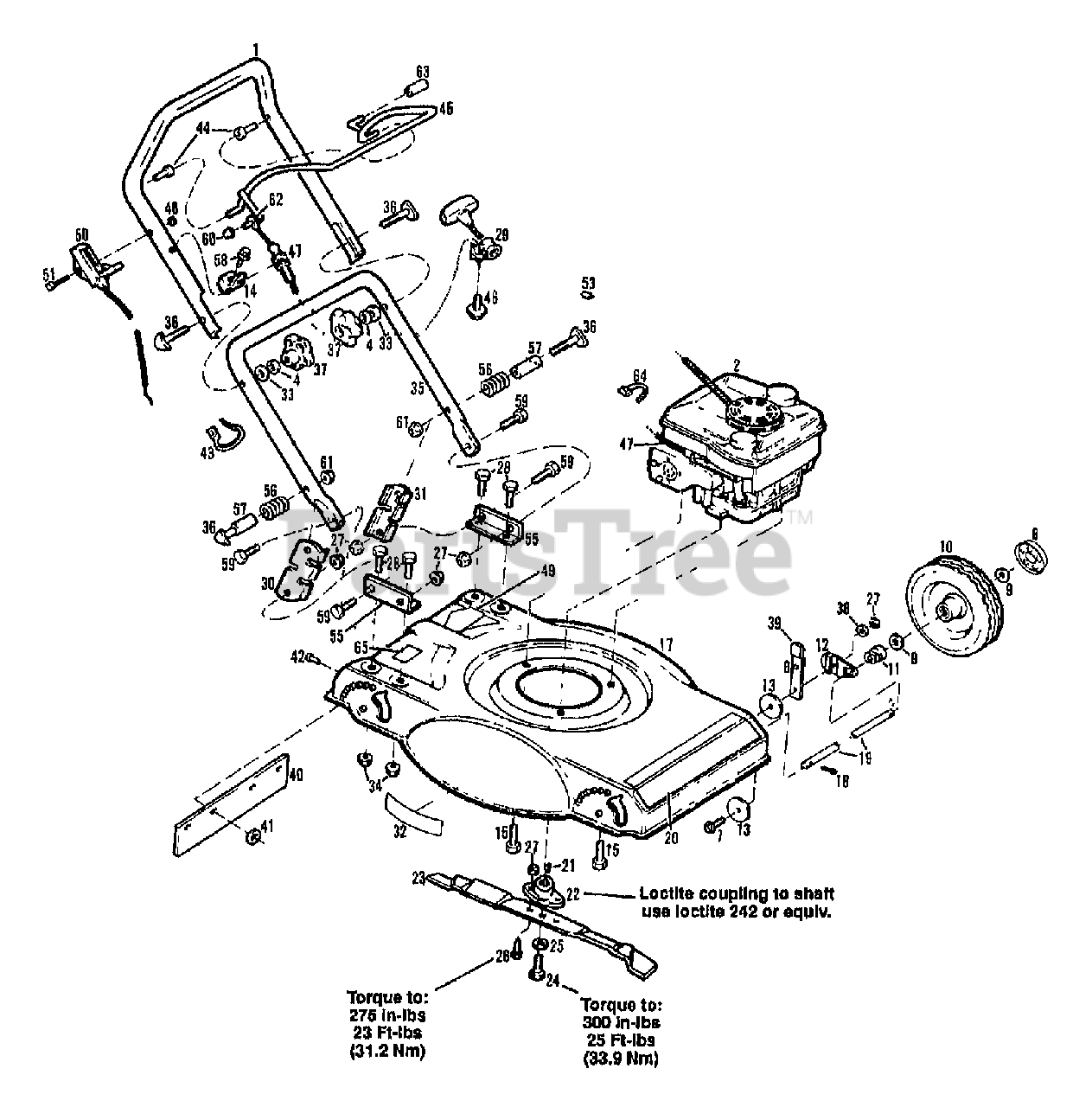

MAIN ASSEMBLY Parts Diagram

  • Title

1

MTD 1760713001

HANDLE-UPPER

$

$

Not available

2

0

BRIGGS & STRATTON ENGINE, 121702

$

$

Not available

4

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

MTD 1761627

ASSM-LEVER HEIGHT ADJUST

$

$

Not available

7

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.99

$

In Stock, only 4 left!

0

8

Troy-Bilt 1762241

CAP-HUB T/B MULCHERS

$

$

Currently unavailable

9

Troy-Bilt 1890234

WASHER-FLAT .88X.5X.06 ZP
(Superseded to GW-20546)

$

$

Not available

10

MTD 1761981

ASSM-TIRE & WHEEL

$

$

Not available

11

Troy-Bilt 1894240

BEARING-AXLE

$

$

Not available

12

MTD 1894289

ARM-WHEEL MOUNTING

$

$

Not available

13

MTD 1703052

WASHER-1.75X.39X.059

$

$

Not available

14

Troy-Bilt 1749977

BRKT-CONTROL CABLE
(Superseded to 1749977001)

$

$

Not available

15

MTD 1762042

SCR-HH 3/8-16X1.0 THDFM

$

$

Not available

17

Troy-Bilt 1761987

ASSM-BASE W/DECALS

$

$

Currently unavailable

18

Troy-Bilt 1100349

PIN-COTTER .125 X .75 ZP
(Superseded to 914-0474)

$

$

Not available

19

MTD 1734208

AXLE

$

$

Not available

20

MTD 1764712

DECAL-LOGO MULCHER 20"

$

$

Not available

21

MTD 1185885

KEY-WOODRUFF

$

$

Not available

22

Troy-Bilt 1763039

ASSM-BLADE COUPLING

$

$

Currently unavailable

23

Troy-Bilt 1760020

BLADE-CUTTER

$

$

Not available

24

MTD 1894062

SCR-SHOULDER

$

$

Not available

25

Troy-Bilt 1100245

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 1186328

SCR-HFLK 5/16-18X.62 G5ZP
(Superseded to 710-04049)

$4.99

$

In Stock, Qty 14

0

29

MTD 1761764

GUIDE-ROPE

$

$

Not available

30

MTD 1755403001

SUPPORT-HANDLE RH

$

$

Not available

31

MTD 1755404001

SUPPORT-HANDLE LH

$

$

Not available

32

Troy-Bilt 1756671

DECAL-CAUTION

$

$

Currently unavailable

33

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

34

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

35

MTD 1760632001

HANDLE-LOWER

$

$

Not available

36

Troy-Bilt 1731025

SCR-CURVED HD 5/16-18X2.0
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

37

MTD 1763767

KNOB

$

$

Not available

38

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 1737499

GRIP-VACUCUT

$

$

Not available

40

Troy-Bilt 1760019

SHIELD

$

$

Currently unavailable

41

Troy-Bilt 1736359

WASHER-.88X.2X.059

$

$

Not available

42

MTD 1739918

RIVET-POP

$

$

Not available

43

Troy-Bilt 1763682

TIE-CABLE
(Superseded to 725-0157)

$3.99

$

In Stock, only 4 left!

0

44

MTD 1747499

BEARING-FLANGED

$

$

Not available

45

Troy-Bilt 1760728001

CONTROL-ENGINE

$

$

Currently unavailable

46

MTD 1763187

SCR-HFLK 1/4-20X1.0 THFRM

$

$

Not available

47

MTD 1760731

ASSM-CABLE

$

$

Not available

48

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

49

Troy-Bilt 1739687

DECAL-OPEI CAUTION

$7.49

$

Usually ships in 3-6 days

0

?50

MTD 1760729

CONTROL-THROTTLE

$

$

Not available

51

Troy-Bilt 1111601

SCR-HH 1/4-20X1.75 G5 ZP

$

$

Not available

53

Troy-Bilt 1746425

STOP-STARTER ROPE

$

$

Not available

55

Troy-Bilt 1755402001

BRKT-HANDLEBAR

$

$

Not available

56

MTD 1755406

SPRING-COMPRESSION

$

$

Not available

57

MTD 1755407

SPACER

$

$

Not available

58

Troy-Bilt 1754128

SCR-FLANGE 1/4-20X3/4 GR5

$3.99

$

In Stock, only 2 left!

0

59

Troy-Bilt 1100068

SCR-HH 3/8-16X.75 G5 ZP
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 17

0

60

Troy-Bilt 1727342

CAP-PUSH ON .312 DIA
(Superseded to 726-0135)

$6.99

$

In Stock, only 2 left!

0

61

Troy-Bilt 1744708

NUT-HFT/LK

$

$

Not available

62

MTD 1747236

RING-GRIP EXT .312 ID

$

$

Not available

63

MTD 1751526

GRIP-HANDLE

$

$

Not available

64

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.99

$

In Stock, only 4 left!

0

65

MTD 1900333

DECAL-U.S.A.

$

$

Not available

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0
