865 (865312) - Cub Cadet 26" Snow Thrower (1982) Throttle Control, Frame Cover and Shift Handle Assemblies Parts Diagram

26" Snow Thrower

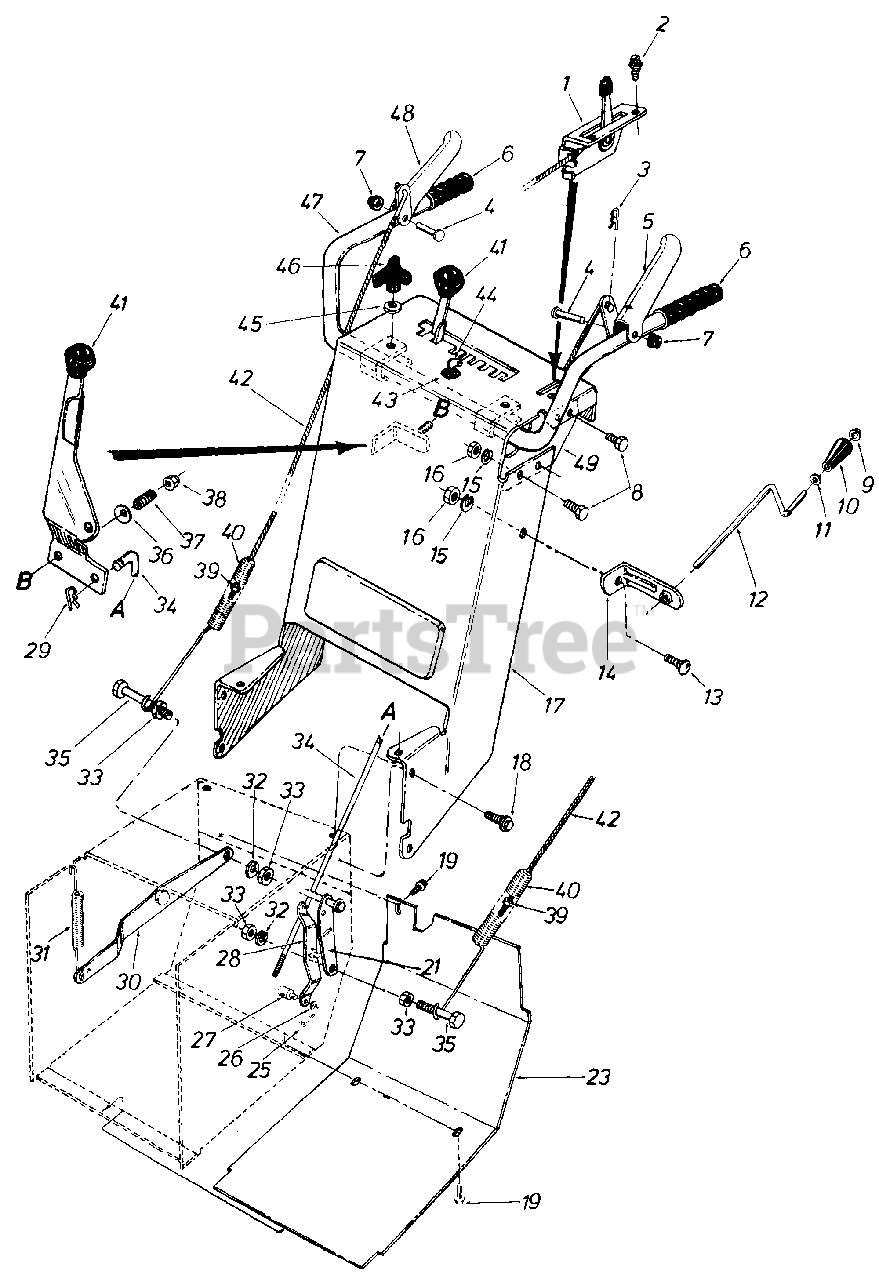

Throttle Control, Frame Cover and Shift Handle Assemblies Parts Diagram

  • Title
1

Cub Cadet 746-0257

Throttle Control Ass'y. Comp.

$

$

Not available

2

Cub Cadet 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50

$3.56

$

In Stock, Qty 20+

0

3

Cub Cadet 714-0111

Hairpin Cotter 3/32" Dia. x 1.00" Lg.
(Superseded to 914-0111)

$3.86

$

In Stock, Qty 20+

0

4

Cub Cadet 711-0705

Clevis Pin .375" Dia. x 1.88" Lg.
(Superseded to 711-0679A)

$11.42

$

In Stock, only 2 left!

0

5

Cub Cadet 05701

Drive Clutch Grip Ass'y. - L.H.

$

$

Currently unavailable

6

Cub Cadet 720-0180

Grip Handle
(Superseded to 720-04083)

$11.95

$

In Stock, Qty 10

0

7

Cub Cadet 726-0110

Push Cap for 3/8" Rod
(Superseded to 926-0100)

$

$

Not available

8

Cub Cadet 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$3.63

$

In Stock, only 4 left!

0

9

Cub Cadet 726-0100

Push Nut for 3/8" Rod
(Superseded to 926-0100)

$

$

Not available

10

Cub Cadet 720-0171

Knob w/.38" Dia. Hole
(Superseded to 920-0171)

$12.68

$

Usually ships in 5-10 days

0

11

Cub Cadet 736-0140

Fl. Wash. .385" I.D. x .62" O.D. x .063"
(Superseded to 936-0140)

$

$

Not available

12

Cub Cadet 747-0313

Chute Crank .38 Dia. x 35" Lg.

$

$

Currently unavailable

13

Cub Cadet 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$3.42

$

In Stock, Qty 20+

0

14

Cub Cadet 05818

Chute Control Brkt.

Note: Code N

$

$

Currently unavailable

15

Cub Cadet 736-0119

L-Wash. 5/16"
(Superseded to 936-0119)

$3.92

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0273

Hex Nut 5/16-24 Thd.
(Superseded to 912-0273)

$3.71

$

In Stock, only 1 left!

0

17

Cub Cadet 05800

Handle Panel Ass'y.

Note: Color Code - 499; Code N

$

$

Currently unavailable

18

Cub Cadet 710-0600

Hex Wash. Self-Tap Scr. 5/16-24 x .50" Lg.

$2.90

$

In Stock, only 2 left!

0

19

Cub Cadet 710-0600

Hex Wash. Self-Tap Scr. 5/16-24 x .50 Lg.

$2.90

$

In Stock, only 2 left!

0

21

Cub Cadet 05500

Drive Clutch Brkt. Ass'y.

$

$

Currently unavailable

23

Cub Cadet 05517

Frame Cover

Note: Color Code - 452

$

$

Currently unavailable

25

Cub Cadet 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.
(Superseded to 914-0507)

$3.63

$

In Stock, Qty 14

0

26

Cub Cadet 736-0264

Fl. Wash. .344" I.D. x .62" O.D. x .063
(Superseded to 936-0264)

$5.52

$

In Stock, Qty 16

0

27

Cub Cadet 711-0677

Ferrule - Engagement
(Superseded to 911-0677)

$14.37

$

Usually ships in 5-10 days

0

28

Cub Cadet 05522

Shifting Linkage Brkt.

$

$

Not available

29

Cub Cadet 714-0111

Hairpin Cotter 3/32" Dia. x 1.00" Lg.
(Superseded to 914-0111)

$3.86

$

In Stock, Qty 20+

0

30

Cub Cadet 05518

Auger Clutch Brkt.

$

$

Not available

31

Cub Cadet 732-0303

Ext. Spring .38" O.D. x 3.18" Lg.
(Superseded to 932-0303)

$8.23

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$3.60

$

In Stock, Qty 14

0

33

Cub Cadet 712-0138

Hex Nut 1/4-28 Thd.
(Superseded to 912-0138)

$

$

Not available

34

Cub Cadet 747-0323

Shifting Rod

Note: Code N

$

$

Currently unavailable

35

Cub Cadet 710-0559

Hex Bolt 1/4-28 x 1.75" Lg.

$

$

Not available

36

Cub Cadet 736-0105

Bell-Wash. .400 I.D. x .88 O.D. x .060

$3.62

$

In Stock, Qty 20+

0

37

Cub Cadet 732-0193

Comp. Spring .39 I.D. x .88

$3.79

$

In Stock, Qty 6

0

38

Cub Cadet 712-0116

Hex Ins. L-Nut 3/8-24 Thd.
(Superseded to 912-0116)

$

$

Not available

39

Cub Cadet 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.09

$

In Stock, Qty 20+

0

40

Cub Cadet 732-0379

Spring .75" O.D. x 5.0" Lg.

Note: Code N

$

$

Currently unavailable

41

Cub Cadet 05805

Shift Handle Ass'y.

$

$

Not available

42

Cub Cadet 746-0367

Lock-Out Cable 30.5" Lg.
(Superseded to 946-0367)

$32.79

$

Usually ships in 5-10 days

0

43

Cub Cadet 725-0464

Ignition Switch
(Superseded to 925-1425)

$29.05

$

In Stock, only 1 left!

0

44

Cub Cadet 725-0201

Ignition Key
(Superseded to 925-0201)

$7.95

$

In Stock, Qty 20+

0

45

Cub Cadet 736-0242

Bell-Wash. .345 I.D. x .88 O.D. x .060

$3.45

$

In Stock, Qty 20+

0

46

Cub Cadet 720-0170

Three Arm Knob - 5/16-18 Thd.

$9.08

$

In Stock, Qty 16

0

47

Cub Cadet 05803

Handle Ass'y.

Note: Color Code - 499; Code N

$

$

Currently unavailable

48

Cub Cadet 05778

Auger Clutch Grip Ass'y. - R.H.
(Superseded to 05778B-0637)

$

$

Not available

49

Cub Cadet 05807

Handle Support Brkt.

Note: Color Code - 499

$

$

Currently unavailable
