865 (865314) - Cub Cadet 26" Snow Thrower (1984) Frame, Wheel And Differential Assemblies Parts Diagram

26" Snow Thrower

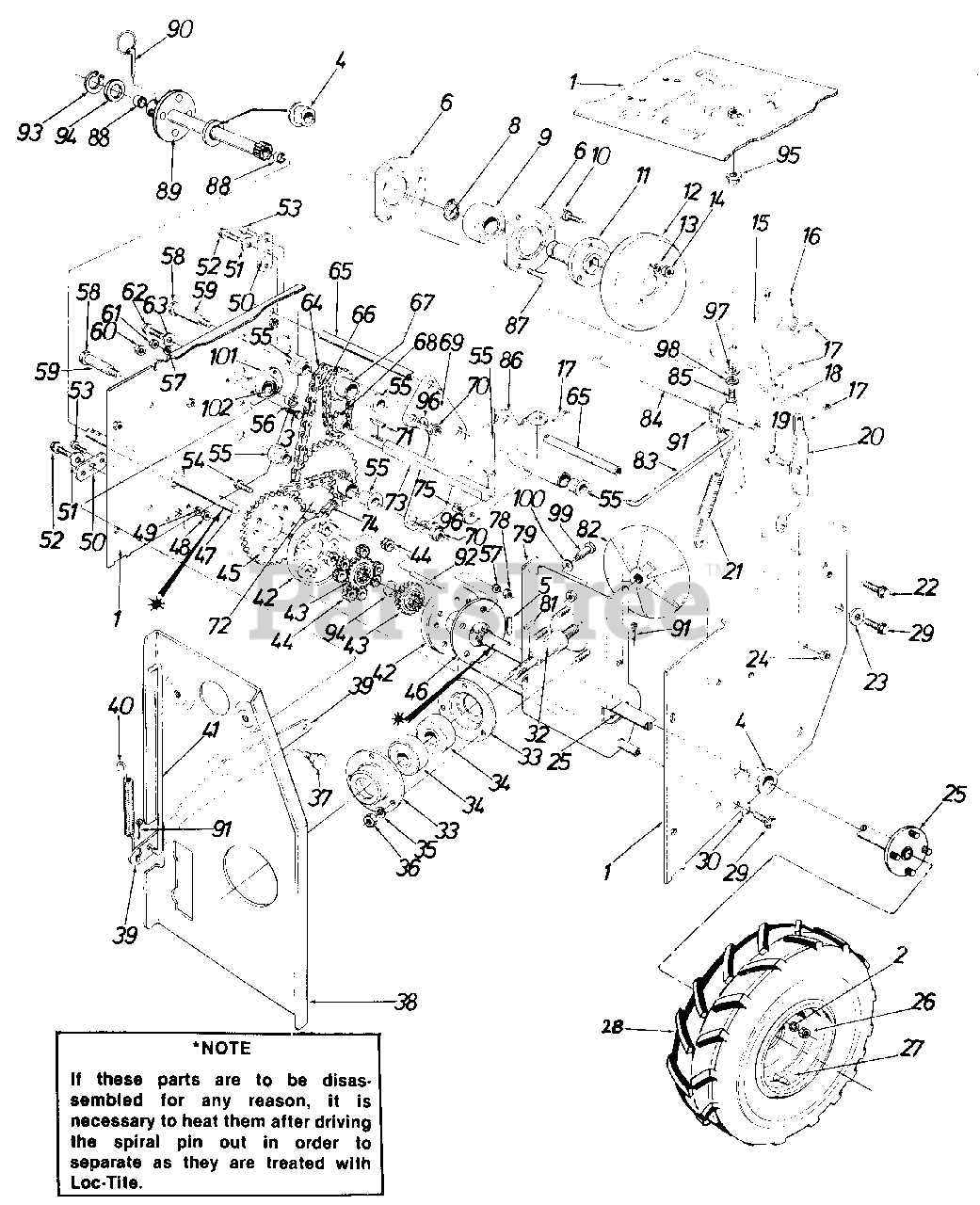

Frame, Wheel And Differential Assemblies Parts Diagram

  • Title
1

Cub Cadet 05806

Frame Ass'y.

Note: Color Code - 452

$

$

Currently unavailable

2

Cub Cadet 736-0217

L-Wash. 3/8" Scr.
(Superseded to 936-0217)

$3.52

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.31

$

In Stock, Qty 20+

0

4

Cub Cadet 741-0244

Flange Brg. w/Flats 1.00" I.D.
(Superseded to 941-0170)

$16.29

$

In Stock, Qty 9

0

5

Cub Cadet 715-0136

H-Spring Pin Spiral 3/16" Dia. x 1.25" Lg.
(Superseded to 915-0136)

$

$

Not available

6

Cub Cadet 05794

Bearing Housing

$

$

Not available

8

Cub Cadet 716-0102

Snap Ring for 1.00" Dia. Shaft

$4.05

$

In Stock, Qty 20+

0

9

Cub Cadet 741-0301

Ball Brg. 25 mm x 52 mm x 15 mm Thk.
(Superseded to 941-0301)

$43.31

$

In Stock, Qty 5

0

10

Cub Cadet 710-0198

Hex Sems Scr. 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

11

Cub Cadet 748-0281

Friction Wheel Adapter

$

$

Not available

12

Cub Cadet 05080

Friction Wheel Ass'y.
(Superseded to 05080AP)

$30.18

$

In Stock, Qty 8

0

13

Cub Cadet 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$3.92

$

In Stock, Qty 20+

0

14

Cub Cadet 712-0267

Hex Nut 5/16-18" Thd.
(Superseded to 912-3010)

$3.58

$

In Stock, Qty 20+

0

15

Cub Cadet 05521

Sliding Linkage Brkt.

$

$

Currently unavailable

16

Cub Cadet 747-0151

Brake Rod - .31" Dia. x 2.00" Lg.

$

$

Not available

17

Cub Cadet 714-0507

Cot. Pin 3/32" Dia. x .75" Lg.
(Superseded to 914-0507)

$3.63

$

In Stock, Qty 14

0

18

Cub Cadet 747-0152

Shifting Linkage Rod .31" Dia. x 2.25" Lg.

$

$

Not available

19

Cub Cadet 738-0281

Shld. Scr. .625" Dia. x .170" Lg.
(Superseded to 938-0281)

$

$

Not available

20

Cub Cadet 05522

Shifting Linkage Brkt.

$

$

Not available

21

Cub Cadet 732-0121

Extension Spring .73 O.D. x 4.31" Lg.
(Superseded to 932-0121)

$12.05

$

Usually ships in 5-10 days

0

22

Cub Cadet 710-0538

Hex L-Scr. 5/16-18 x .62" Lg.

$3.67

$

In Stock, Qty 16

0

23

Cub Cadet 736-0264

Fl-Wash. .345 I.D. x .75 O.D. x .060
(Superseded to 936-0264)

$5.52

$

In Stock, Qty 16

0

24

Cub Cadet 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$3.67

$

In Stock, Qty 20+

0

25

Cub Cadet 05819

Differential Shaft Ass'y. - L.H.

$

$

Currently unavailable

26

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$3.52

$

In Stock, Qty 8

0

27

Cub Cadet 734-0824

Wheel Rim Ass'y.

$

$

Currently unavailable

28

Cub Cadet 734-0825

Wheel Ass'y. Comp. 16.0 x 4.80-8

$

$

Currently unavailable

Cub Cadet 734-0808

Tire Only

Variations

Cub Cadet 734-0808-0901

Tire, 16.25 X 4.5-8 Tiller Ag - Carlisle (0901)

$100.31

$

Usually ships in 5-10 days

0

Cub Cadet 734-0808-0902

Tire, 16.25 X 4.5-8 Tiller Ag - Dico (0902)

$100.31

$

Usually ships in 5-10 days

0

Cub Cadet 734-0808-0905

Tire, 16.25 X 4.5-8 Tiller Ag - Duro (0905)

$100.31

$

Usually ships in 5-10 days

0

$

$

Cub Cadet 734-0255

Air Valve
(Superseded to 934-0255)

Note: (Not Shown)

$3.50

$

In Stock, Qty 20+

0

29

Cub Cadet 710-0538

Hex L-Scr. 5/16-18 x .62" Lg.

$3.67

$

In Stock, Qty 16

0

30

Cub Cadet 736-0264

Fl-Wash. .345" I.D. x .75 O.D. x .060
(Superseded to 936-0264)

$5.52

$

In Stock, Qty 16

0

32

Cub Cadet 738-0279

Drive Plate Spindle

$50.34

$

Usually ships in 5-10 days

0

33

Cub Cadet 08253

Bearing Housing
(Superseded to 08253B)

$16.40

$

Usually ships in 5-10 days

0

34

Cub Cadet 741-0919

Ball Brg. .787 I.D. x 1.85 O.D. x .56
(Superseded to 941-0919B)

$19.93

$

In Stock, Qty 20+

0

35

Cub Cadet 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$3.92

$

In Stock, Qty 20+

0

36

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$3.58

$

In Stock, Qty 20+

0

37

Cub Cadet 738-0281

Shld. Scr. .625" Dia. x .170" Lg.
(Superseded to 938-0281)

$

$

Not available

38

Cub Cadet 05491

Engine Brkt. Ass'y.

Note: Color Code - 452

$

$

Not available

39

Cub Cadet 05518

Auger Clutch Brkt.

$

$

Not available

40

Cub Cadet 732-0303

Extension Spring .38 O.D. x 3.18" Lg.
(Superseded to 932-0303)

$8.23

$

In Stock, Qty 20+

0

41

Cub Cadet 747-0149

Auger Clutch Rod .31" Dia. x 10.62" Lg.

$

$

Currently unavailable

42

Cub Cadet 748-0222

Differential Housing

$

$

Not available

43

Cub Cadet 748-0224

20 Tooth Spur Gear

$

$

Not available

44

Cub Cadet 748-0223

9 Tooth Spur Gear

$

$

Not available

45

Cub Cadet 713-0198

28 Tooth Sprocket

$

$

Currently unavailable

46

Cub Cadet 05484

Differential Hsg. Support Plate

$

$

Not available

47

Cub Cadet 738-0444

Differential Connecting Shaft

$

$

Not available

48

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$3.65

$

In Stock, Qty 10

0

49

Cub Cadet 736-0329

L-Wash. 1/4" Scr.
(Superseded to 936-0329)

$3.60

$

In Stock, Qty 14

0

50

Cub Cadet 05523

Pivot Axle Brkt.

$

$

Not available

51

Cub Cadet 736-0159

Fl-Wash. .345" I.D. x .88" O.D. x .060
(Superseded to 936-0159)

$

$

Not available

52

Cub Cadet 710-0538

Hex L-Scr. 5/16-18 x .62" Lg.

$3.67

$

In Stock, Qty 16

0

53

Cub Cadet 710-0258

Hex Scr. 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.31

$

In Stock, Qty 20+

0

54

Cub Cadet 710-0559

Hex Scr. 1/4-28 x 1.75" Lg.

$

$

Not available

55

Cub Cadet 748-0184

Flange Brg. - .630" I.D.

$7.01

$

In Stock, only 2 left!

0

56

Cub Cadet 750-0277

Spacer .51" I.D. x .69" O.D. x .44

$

$

Not available

57

Cub Cadet 736-0329

L-Wash. 1/4" Scr.
(Superseded to 936-0329)

$3.60

$

In Stock, Qty 14

0

58

Cub Cadet 710-0629

Hex Scr. 3/8-24 x 2.75" Lg.

$

$

Not available

59

Cub Cadet 750-0275

Sprocket Hub Tubing 1.900" Lg.

$

$

Not available

60

Cub Cadet 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$3.67

$

In Stock, Qty 20+

0

61

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$3.65

$

In Stock, Qty 10

0

62

Cub Cadet 710-0538

Hex L-Scr. 5/16-18 x .62" Lg.

$3.67

$

In Stock, Qty 16

0

63

Cub Cadet 736-0242

Bell-Wash. .345" I.D. x .88 O.D. x .060

$3.45

$

In Stock, Qty 20+

0

64

Cub Cadet 713-0270

#41 Chain - 1/2" Pitch x 43 Links

$

$

Not available

Cub Cadet 713-0723

Master Link
(Superseded to 913-0723)

$

$

Not available

65

Cub Cadet 738-0278

Sliding Support Axle

$

$

Not available

66

Cub Cadet 713-0199

#41 Chain 1/2" Pitch x 19 Links

$

$

Not available

Cub Cadet 713-0723

Master Link
(Superseded to 913-0723)

$

$

Not available

67

Cub Cadet 713-0193

9 and 14 Teeth Sprocket Hub Ass'y.
(Superseded to 913-0193)

$75.97

$

Usually ships in 5-10 days

0

68

Cub Cadet 748-0204

8 Teeth Sprocket

$

$

Not available

69

Cub Cadet 05520

Chain Support Brkt.

Variations

Cub Cadet 05520-0637

BRACKET-CH - POWDER BLACK (0637)

$

$

Not available

$

$

70

Cub Cadet 712-0116

Hex L-Jam Nut 3/8-24 Thd.
(Superseded to 912-0116)

$

$

Not available

71

Cub Cadet 714-0129

#9 Hi-Pro Key 3/32 x 5/8" Dia.
(Superseded to 914-0129)

$

$

Not available

72

Cub Cadet 713-0194

9 and 32 Teeth Sprocket Hub Ass'y.
(Superseded to 913-0194)

$124.07

$

In Stock, only 4 left!

0

73

Cub Cadet 738-0280

Hex Shaft

$

$

Not available

74

Cub Cadet 713-0269

#420 Chain - 1/2" Pitch x 37 Links
(Superseded to 913-0269)

$30.61

$

Usually ships in 5-10 days

0

Cub Cadet 713-0154

Master Link
(Superseded to 913-0154)

$

$

Not available

75

Cub Cadet 712-0896

Hex Ins. Jam L-Nut 1/4-28"

$3.76

$

In Stock, Qty 7

0

78

Cub Cadet 712-0138

Hex Nut 1/4-28 Thd.
(Superseded to 912-0138)

$

$

Not available

79

Cub Cadet 05497

Drive Plate Mtg. Brkt. Ass'y.

Variations

Cub Cadet 05497-0637

BRACKET ASSEMBLY-DR PLT MTG - POWDER BLACK (0637)

$

$

Not available

$

$

81

Cub Cadet 714-0388

#61 Hi-Pro Key 3/16 x 5/8" Dia.
(Superseded to 914-0388)

$6.23

$

In Stock, only 3 left!

0

82

Cub Cadet 717-0302

Aluminum Drive Plate
(Superseded to 917-0302)

$77.45

$

In Stock, only 2 left!

0

83

Cub Cadet 747-0150

Drive Clutch Rod .31" Dia. x 7.38" Lg.

$

$

Not available

84

Cub Cadet 05500

Drive Clutch Brkt. Ass'y.

$

$

Currently unavailable

85

Cub Cadet 710-0253

Hex Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$3.46

$

In Stock, Qty 20+

0

86

Cub Cadet 05502

Sliding Brkt. Ass'y.

$

$

Currently unavailable

87

Cub Cadet 710-0195

Hex Scr. 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$2.90

$

In Stock, only 1 left!

0

88

Cub Cadet 748-0141

Sleeve Brg. .630 I.D.
(Superseded to 941-0181)

$

$

Not available

89

Cub Cadet 05534

Differential Tubing Ass'y. - R.H.

$

$

Not available

90

Cub Cadet 714-0143

Klick Pin 1/4" Dia. x 1.75" Lg.
(Superseded to 714-0143A)

$5.23

$

In Stock, Qty 20+

0

91

Cub Cadet 714-0104

Internal Cot. Pin 5/16 Dia.
(Superseded to 914-0104)

$3.56

$

In Stock, Qty 20+

0

92

Cub Cadet 738-0304

Differential Pin

$

$

Not available

93

Cub Cadet 716-0115

Snap Ring .625 Shaft
(Superseded to 916-0115)

$

$

Not available

94

Cub Cadet 736-0187

Fl-Wash. .62 I.D. x 1.25 O.D. x .060

$3.67

$

In Stock, Qty 20+

0

95

Cub Cadet 738-0347

Shld. Spacer 5/8" I.D.
(Superseded to 938-0347)

$8.23

$

In Stock, Qty 15

0

96

Cub Cadet 736-0217

L-Wash. 3/8" Scr.
(Superseded to 936-0217)

$3.52

$

In Stock, Qty 20+

0

97

Cub Cadet 07386

Fl-Wash.

$

$

Not available

98

Cub Cadet 736-0217

L-Wash. 3/8" Scr.
(Superseded to 936-0217)

$3.52

$

In Stock, Qty 20+

0

99

Cub Cadet 738-0144

Shld. Scr.
(Superseded to 938-0144)

$

$

Not available

100

Cub Cadet 736-0105

Bell-Wash.

$3.62

$

In Stock, Qty 20+

0

101

Cub Cadet 05034

Bearing Housing
(Superseded to 05034A)

$

$

Not available

102

Cub Cadet 741-0133

Ball Bearing

$28.97

$

Usually ships in 5-10 days

0
