866088-A - Briggs & Stratton 26cc Brush Cutter (2016) Engine Service Parts - Crankcase (TR01792) Parts Diagram

26cc Brush Cutter

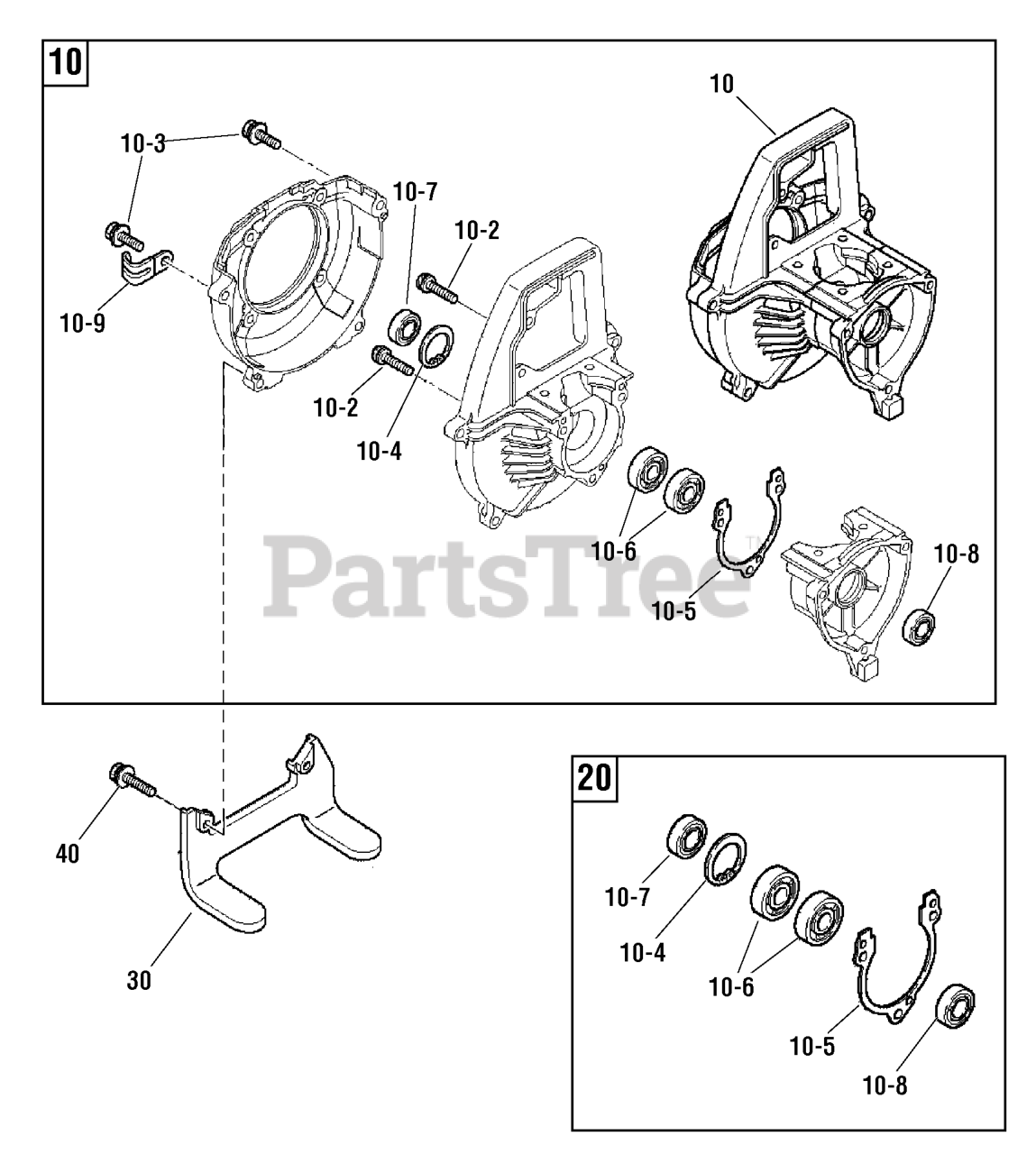

Engine Service Parts - Crankcase (TR01792) Parts Diagram

  • Title

10

Murray 709548

CRANKCASE ASSEMBLY

Note: (Includes Ref. Nos. 10-2, 10-3, 10-4, 10-5, 10-6, 10-7, 10-8 & 10-9)

$216.99

$

Usually ships in 2-12 days

0

10-2

SCREW & WASHER

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-3

BOLT & WASHER

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-4

SNAP RING

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-5

GASKET, Crankcase

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-6

BEARING, Ball

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-7

OIL SEAL

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-8

OIL SEAL

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-9

CLAMP

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

30

ENGINE STAND

$

$

Not available

40

BOLT & WASHER

$

$

Not available

20

Murray 709549

KIT, Bearing Seal & Gasket

Note: (Includes Ref. Nos. 10-4, 10-5, 10-6, 10-7 & 10-8)

$59.99

$

Usually ships in 2-12 days

0
