866088-A - Briggs & Stratton 26cc Brush Cutter (2016) Shaft Group (866088) Parts Diagram

26cc Brush Cutter

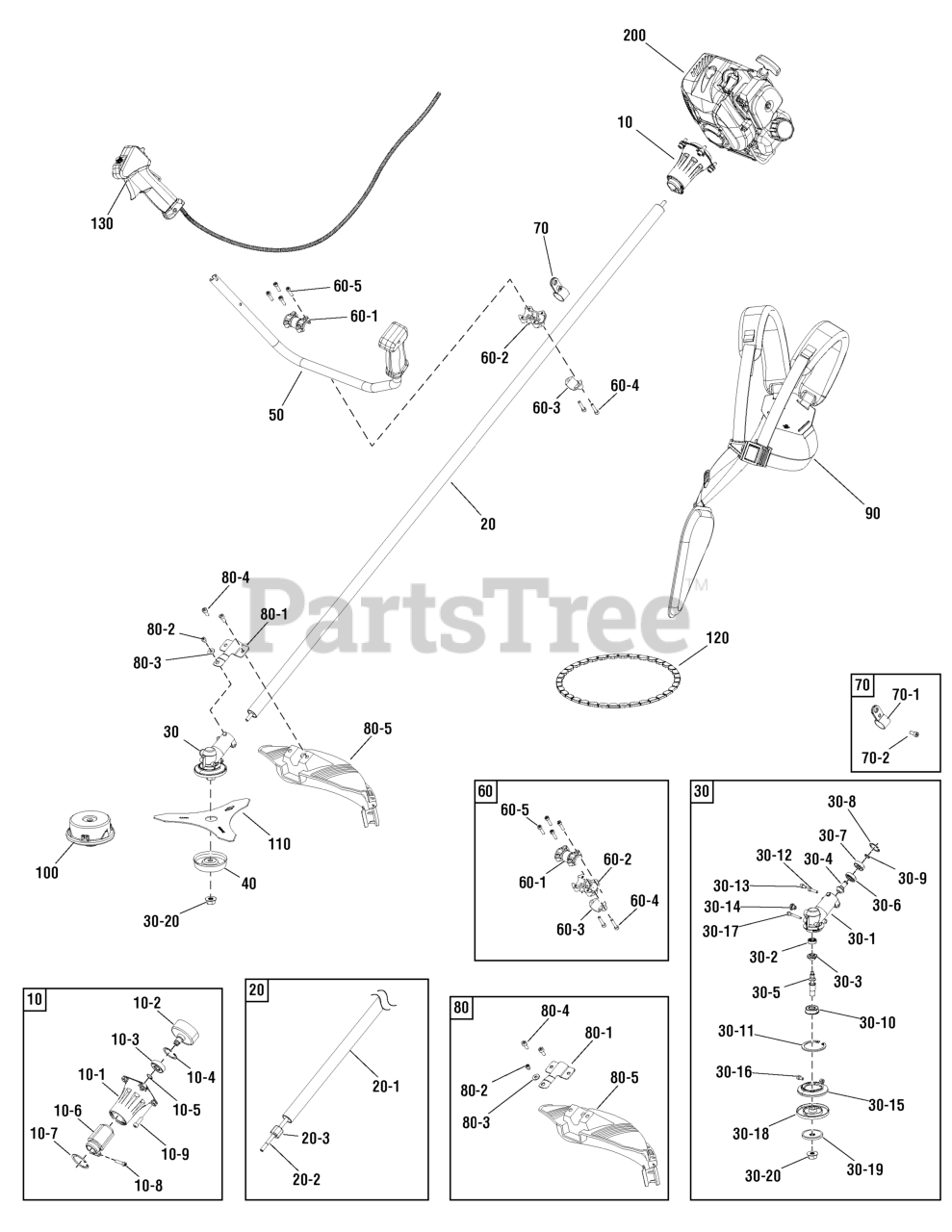

Shaft Group (866088) Parts Diagram

  • Title

10

Murray 709565

CLUTCH HOUSING ASSEMBLY

Note: (Includes Ref. Nos. 10-1, 10-2, 10-3, 10-4, 10-5, 10-6, 10-7, 10-8 & 10-9)

$131.99

$

Usually ships in 2-12 days

0

10-1

HOUSING, Clutch

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-2

CLUTCH DRUM

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-3

BEARING

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-4

CIRCLIP, 32

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-5

CIRCLIP, 12

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-6

COUPLER

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-7

CIRCLIP, 40

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-8

BOLT, Torx, M5 x 25

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

10-9

BOLT, Torx, M6 x 18

Note: (Not a serviceable part. Order Ref. No. 10)

$

$

Not available

20

Murray 709566

SHAFT ASSEMBLY

Note: (Includes Ref. Nos. 20-1, 20-2 & 20-3)

$170.99

$

Usually ships in 2-12 days

0

20-1

SHAFT

Note: (Not a serviceable part. Order Ref. No. 20)

$

$

Not available

20-2

DRIVE SHAFT

Note: (Not a serviceable part. Order Ref. No. 20)

$

$

Not available

20-3

BUSH

Note: (Not a serviceable part. Order Ref. No. 20)

$

$

Not available

30

Murray 709567

GEARBOX ASSEMBLY

Note: (Includes Ref. Nos. 30-1, 30-2, 30-3, 30-4, 30-5, 30-6, 30-7, 30-8, 30-9, 30-10, 30-11, 30-12, 30-13, 30-14, 30-15, 30-16, 30-17, 30-18, 30-19 & 30-20)

$131.99

$

Usually ships in 2-12 days

0

30-1

HOUSING, Gear Case

Note: (Not a serviceable part. Order Ref. No. 30)

$

$

Not available

30-2

BEARING

Note: (Not a serviceable part. Order Ref. No. 30)

$

$

Not available

30-3

GEAR

Note: (Not a serviceable part. Order Ref. No. 30)

$

$

Not available

30-4

PINION

Note: (Not a serviceable part. Order Ref. No. 30)

$

$

Not available

30-5

SHAFT

Note: (Not a serviceable part. Order Ref. No. 30)

$

$

Not available

30-6

BEARING

Note: (Not a serviceable part. Order Ref. No. 30)

$

$

Not available

30-7

BEARING

Note: (Not a serviceable part. Order Ref. No. 30)

$

$

Not available

30-8

SNAP RING, 24

Note: (Not a serviceable part. Order Ref. No. 30)

$

$

Not available

30-9

SNAP RING, 9

Note: (Not a serviceable part. Order Ref. No. 30)

$

$

Not available

30-10

BEARING

Note: (Not a serviceable part. Order Ref. No. 30)

$

$

Not available

30-11

SNAP RING, 28

Note: (Not a serviceable part. Order Ref. No. 30)

$

$

Not available

30-12

BOLT, Torx, M5 x 20

Note: (Not a serviceable part. Order Ref. No. 30)

$

$

Not available

30-13

BOLT, Torx, M5 x 10

Note: (Not a serviceable part. Order Ref. No. 30)

$

$

Not available

30-14

PLUG

Note: (Not a serviceable part. Order Ref. No. 30)

$

$

Not available

30-15

COVER

Note: (Not a serviceable part. Order Ref. No. 30)

$

$

Not available

30-16

BOLT, Torx, M5 x 10

Note: (Not a serviceable part. Order Ref. No. 30)

$

$

Not available

30-17

BOLT, Special

Note: (Not a serviceable part. Order Ref. No. 30)

$

$

Not available

30-18

BLADE HOLDER

Note: (Not a serviceable part. Order Ref. No. 30)

$

$

Not available

30-19

BLADE HOLDER

Note: (Not a serviceable part. Order Ref. No. 30)

$

$

Not available

30-20

NUT

Note: (Not a serviceable part. Order Ref. No. 30)

$

$

Not available

40

Murray 706568

COVER

$

$

Currently unavailable

50

Murray 709569

HANDLE ASSEMBLY

$142.99

$

Usually ships in 2-12 days

0

60

Murray 709573

HANDLE BRACKET ASSEMBLY

Note: (Includes Ref. Nos. 60-1, 60-2, 30-3, 60-4 & 60-5)

$40.99

$

Usually ships in 2-12 days

0

60-1

BRACKET, Handle, Upper

Note: (Not a serviceable part. Order Ref. No. 60)

$

$

Not available

60-2

BRACKET, Handle, Lower

Note: (Not a serviceable part. Order Ref. No. 60)

$

$

Not available

60-3

BRACKET, Shaft

Note: (Not a serviceable part. Order Ref. No. 60)

$

$

Not available

60-4

BOLT, Torx, M5 x 25

Note: (Not a serviceable part. Order Ref. No. 60)

$

$

Not available

60-5

BOLT, Torx, M5 x 20

Note: (Not a serviceable part. Order Ref. No. 60)

$

$

Not available

70

Murray 709570

HANGER ASSEMBLY

Note: (Includes Ref. Nos. 70-1 & 70-2)

$12.99

$

Usually ships in 2-12 days

0

70-1

HANGER

Note: (Not a serviceable part. Order Ref. No. 70)

$

$

Not available

70-2

BOLT, Torx, M6 x 14

Note: (Not a serviceable part. Order Ref. No. 70)

$

$

Not available

80

Murray 709571

GUARD ASSEMBLY

Note: (Includes Ref. Nos. 80-1, 80-2, 80-3, 80-4 & 80-5)

$83.99

$

Usually ships in 2-12 days

0

80-1

BRACKET

Note: (Not a serviceable part. Order Ref. No. 80)

$

$

Not available

80-2

BOLT

Note: (Not a serviceable part. Order Ref. No. 80)

$

$

Not available

80-3

WASHER

Note: (Not a serviceable part. Order Ref. No. 80)

$

$

Not available

80-4

BOLT, Torx, M6 x 14

Note: (Not a serviceable part. Order Ref. No. 80)

$

$

Not available

80-5

GUARD

Note: (Not a serviceable part. Order Ref. No. 80)

$

$

Not available

90

Murray 709572

SHOULDER STRAP

$148.99

$

Usually ships in 2-12 days

0

100

Murray 709574

BUMP HEAD

$125.99

$

Usually ships in 2-12 days

0

110

Murray 709575

BLADE, 3T

$25.99

$

Usually ships in 2-12 days

0

120

Murray 709576

COVER, Blade

$14.99

$

Usually ships in 2-12 days

0

130

Murray 709577

LEVER ASSEMBLY, Throttle

$125.99

$

Usually ships in 2-12 days

0

200

ENGINE

$

$

Not available
