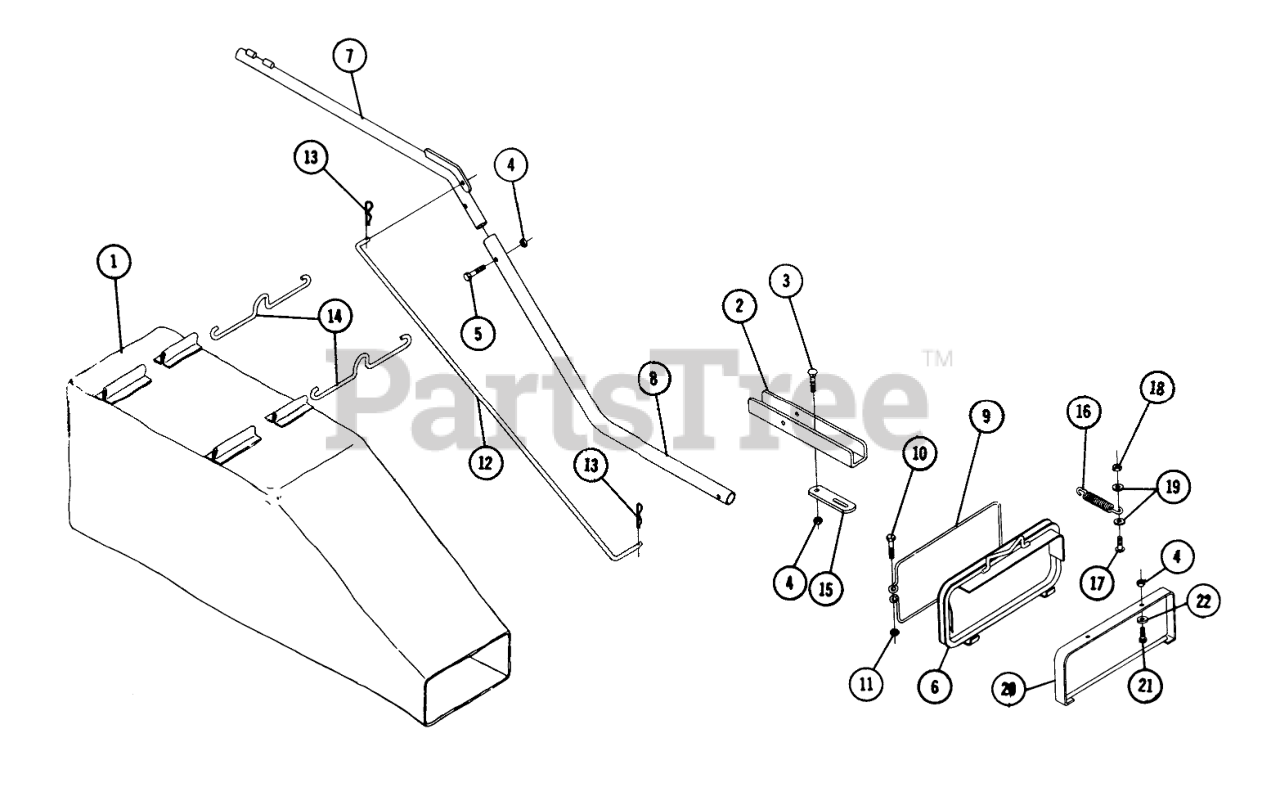

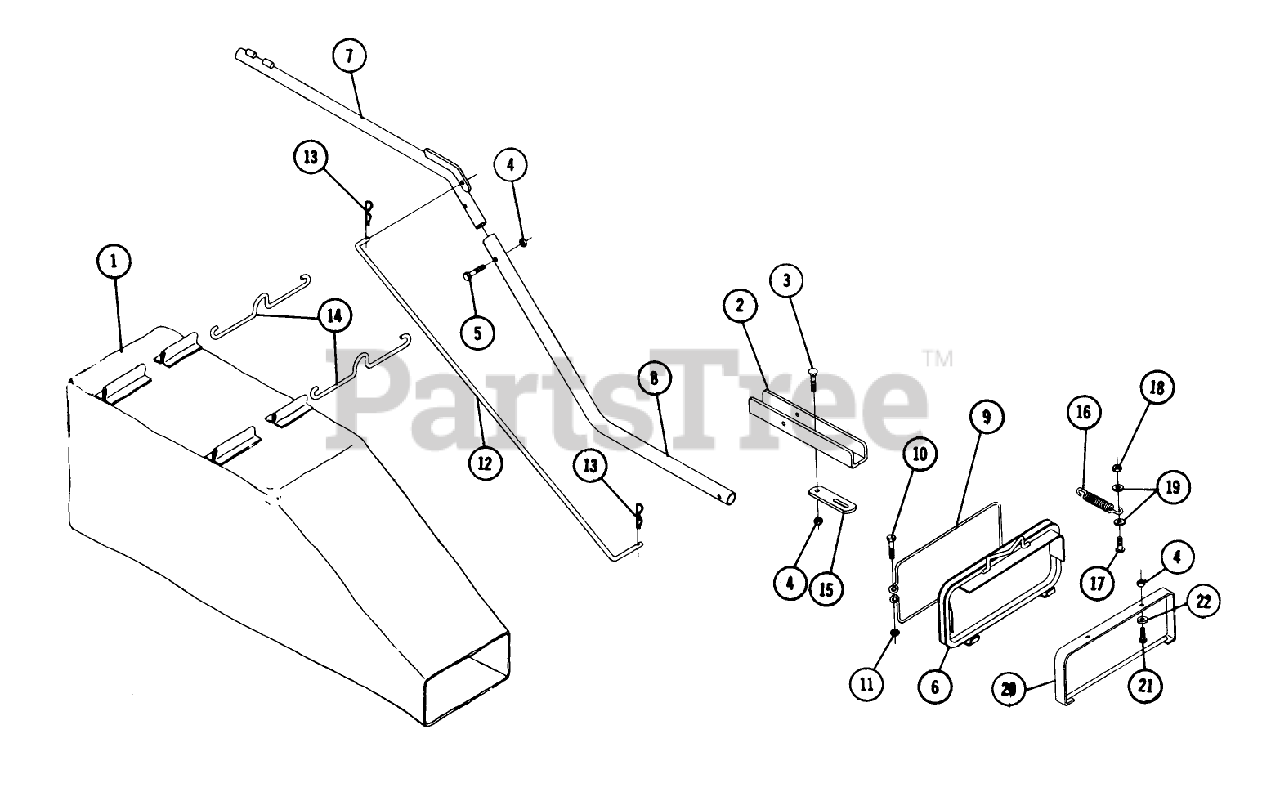

86612 - Toro Grass Bag (1975) PARTS LIST GRASS CATCHER MODEL 8-6612 Parts Diagram

Grass Bag

PARTS LIST GRASS CATCHER MODEL 8-6612 Parts Diagram

  • Title

1

Toro 103318

Bag

$

$

Not available

2

Toro 9271

Channel

$

$

Not available

3

Toro 900038-4

Bolt-Car. 5/16-18 x 1

$

$

Currently unavailable

4

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

5

Toro 908020-4

Bolt 5/16-18 x 11/4

$

$

Currently unavailable

6

Toro 9612

Frame

$

$

Not available

7

Toro 9178

Upper Arm

$

$

Not available

8

Toro 9190

Arm-lower

$

$

Not available

9

Toro 103587

Hoop-Wire

$

$

Currently unavailable

10

Toro 908006-4

Bolt 1/4 20 x 1 1/4

$

$

Currently unavailable

11

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

12

Toro 9348

Link

$

$

Not available

13

Toro 933505-4

Hairpin

$

$

Currently unavailable

14

Toro 9185

Hook

$

$

Not available

15

Toro 8449

Link

$

$

Not available

16

Toro 6651

SPRING R

$21.99

$

In Stock, only 4 left!

0

17

Toro 910893-4

Bolt 3/8-16 x 1 Pan Hd.

$

$

Currently unavailable

18

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

19

Toro 920039-4

Washer

$

$

Currently unavailable

20

Toro 103344

Strap Assembly

$

$

Currently unavailable

21

Toro 910865-4

Bolt, 5/16-18 x 3/4

$

$

Currently unavailable

22

Toro 8569

Spacer

$

$

Not available
