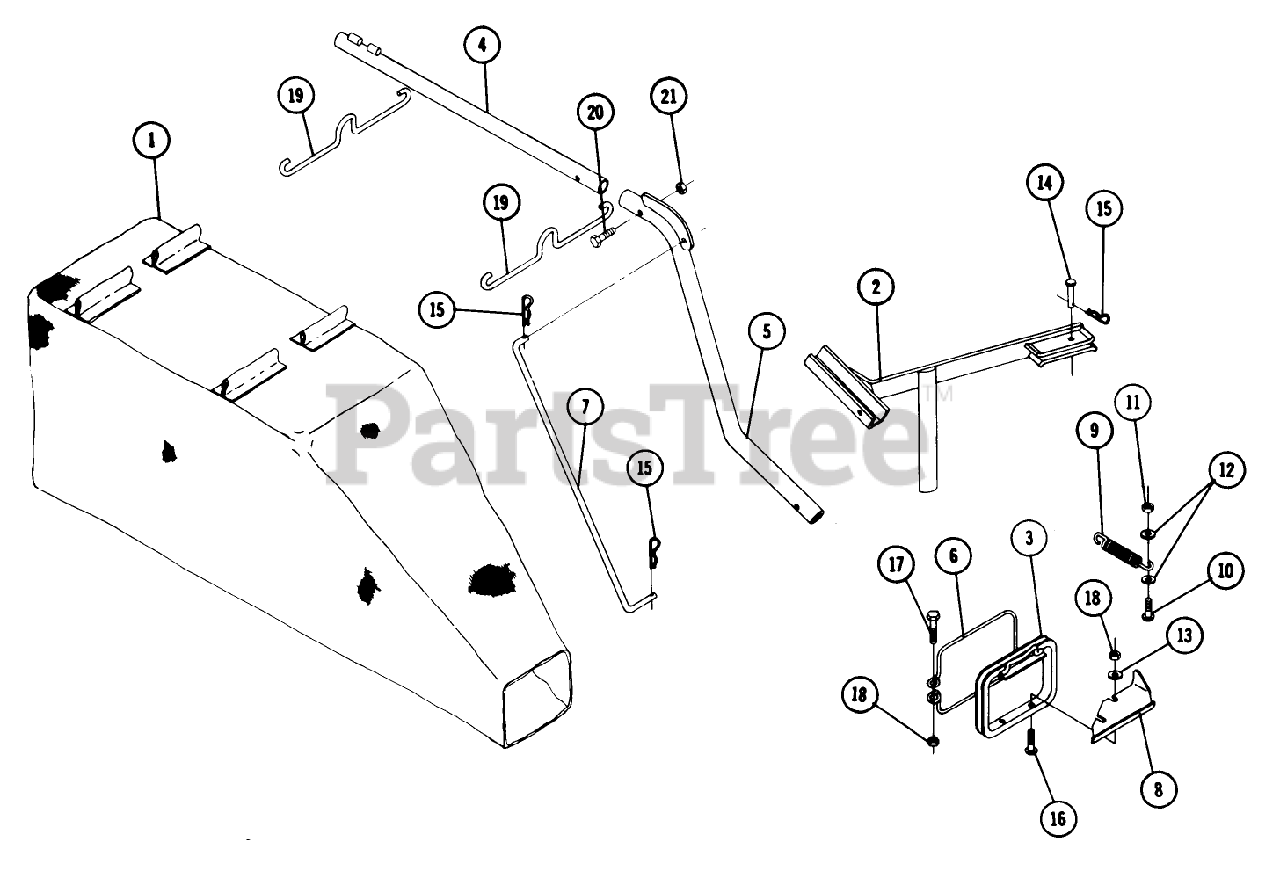

86631 - Toro Grass Bag (1969) PARTS LIST-GRASS CATCHER FACTORY ORDER NUMBER 8-6632 (FORMERLY 8-6631) Parts Diagram

Grass Bag

PARTS LIST-GRASS CATCHER FACTORY ORDER NUMBER 8-6632 (FORMERLY 8-6631) Parts Diagram

  • Title

1

Toro 102319

Bag

$

$

Not available

2

Toro 9966

Mounting Bracket

$

$

Currently unavailable

3

Toro 103813

Bag Opening Frame

$

$

Not available

4

Toro 9969

Upper Tube

$

$

Currently unavailable

5

Toro 9970

Lower Tube

$

$

Currently unavailable

6

Toro 104893

Hoop-Wire

$

$

Not available

7

Toro 9967

Link

$

$

Not available

8

Toro 100509

Bottom Plate

$

$

Not available

9

Toro 6651

SPRING R

$21.99

$

In Stock, Qty 5

0

10

Toro 910893-4

Bolt 3/8-16 x 1 Pan Hd.

$

$

Currently unavailable

11

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

12

Toro 920039-4

Washer

$

$

Currently unavailable

13

Toro 920007-4

Washer

$

$

Currently unavailable

14

Toro 932965-4

Clevis Pin

$

$

Currently unavailable

15

Toro 933505-4

Hairpin

$

$

Currently unavailable

16

Toro 910834-4

Bolt 1/4-20 x 3/8 PHCR

$

$

Currently unavailable

17

Toro 908009-4

Bolt 1/4-20 x 2

$

$

Currently unavailable

18

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

19

Toro 9185

Hook

$

$

Not available

20

Toro 908020-4

Bolt 5/16-18 x 11/4

$

$

Currently unavailable

21

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable
