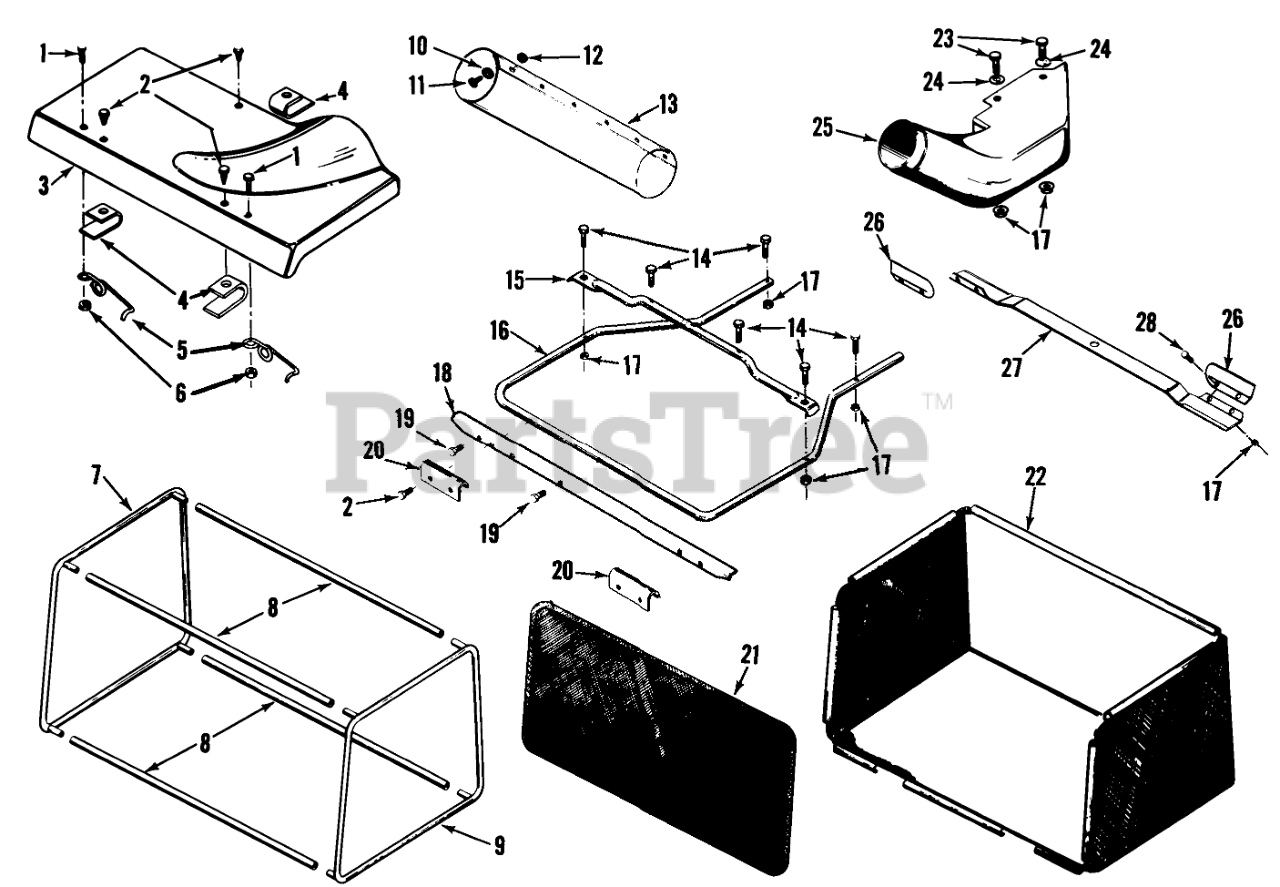

86660 - Toro Grass Bag (1976) EXPLODED VIEW 8-6660 GRASS CATCHER-PARTS LIST-GRASS CATCHER FACTORY ORDER NUMBER 8-6660 Parts Diagram

Grass Bag

EXPLODED VIEW 8-6660 GRASS CATCHER-PARTS LIST-GRASS CATCHER FACTORY ORDER NUMBER 8-6660 Parts Diagram

  • Title

1

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 13

0

2

Toro 911256

Screw, Hex Hd, Washer Slotted, No. 10-24 x 3/8 In.

$

$

Currently unavailable

3

Toro 225511

Cover, Grass Catcher Top

$

$

Not available

4

Toro 225506

Clip, Cover Hold Down

$

$

Not available

5

Toro 225507

Spring, Door Hold Down

$

$

Not available

6

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

7

Toro 225492

Frame Assembly, Bag, Left

$

$

Not available

8

Toro 225493

Tube, Bag Frame

$

$

Currently unavailable

9

Toro 225491

Frame Assembly, Bag, Right

$

$

Not available

10

Toro 920005

WASHER

$

$

Not available

11

Toro 910790

BOLT

$0.99

$

In Stock, only 2 left!

0

12

Toro 960004

Nut, Centerlock Flange, No. 10-24 Thd

$

$

Currently unavailable

13

Toro 225499

Tube, Extension

$

$

Not available

14

Toro 908021

Bolt
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

15

Toro 225497

Tube, Frame Support

$

$

Currently unavailable

16

Toro 225496

Frame, Catcher Support

$

$

Not available

17

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

18

Toro 225508

Support Angle, Catcher Bag

$

$

Not available

19

Toro 960150

Screw
(Superseded to 3234-26)

$2.99

$

In Stock, Qty 16

0

20

Toro 225509

Bracket, Bag Hold Down

$

$

Not available

21

Toro 225495

Door Assembly, Bag, Rear

$

$

Not available

22

Toro 225494

Bag Assembly

$

$

Not available

23

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, Qty 19

0

24

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

25

Toro 225510

Chute Extension Assembly

$

$

Not available

26

Toro 225502

Lift Blade

$

$

Not available

27

Toro 225503

Blade, 30 In.

$

$

Not available

28

Toro 908016

Bolt
(Superseded to 322-2)

$2.49

$

In Stock, Qty 20+

0

29

Toro 225504

Blade Assembly Complete (Includes items 17, 26, 27 & 28)

$

$

Not available
