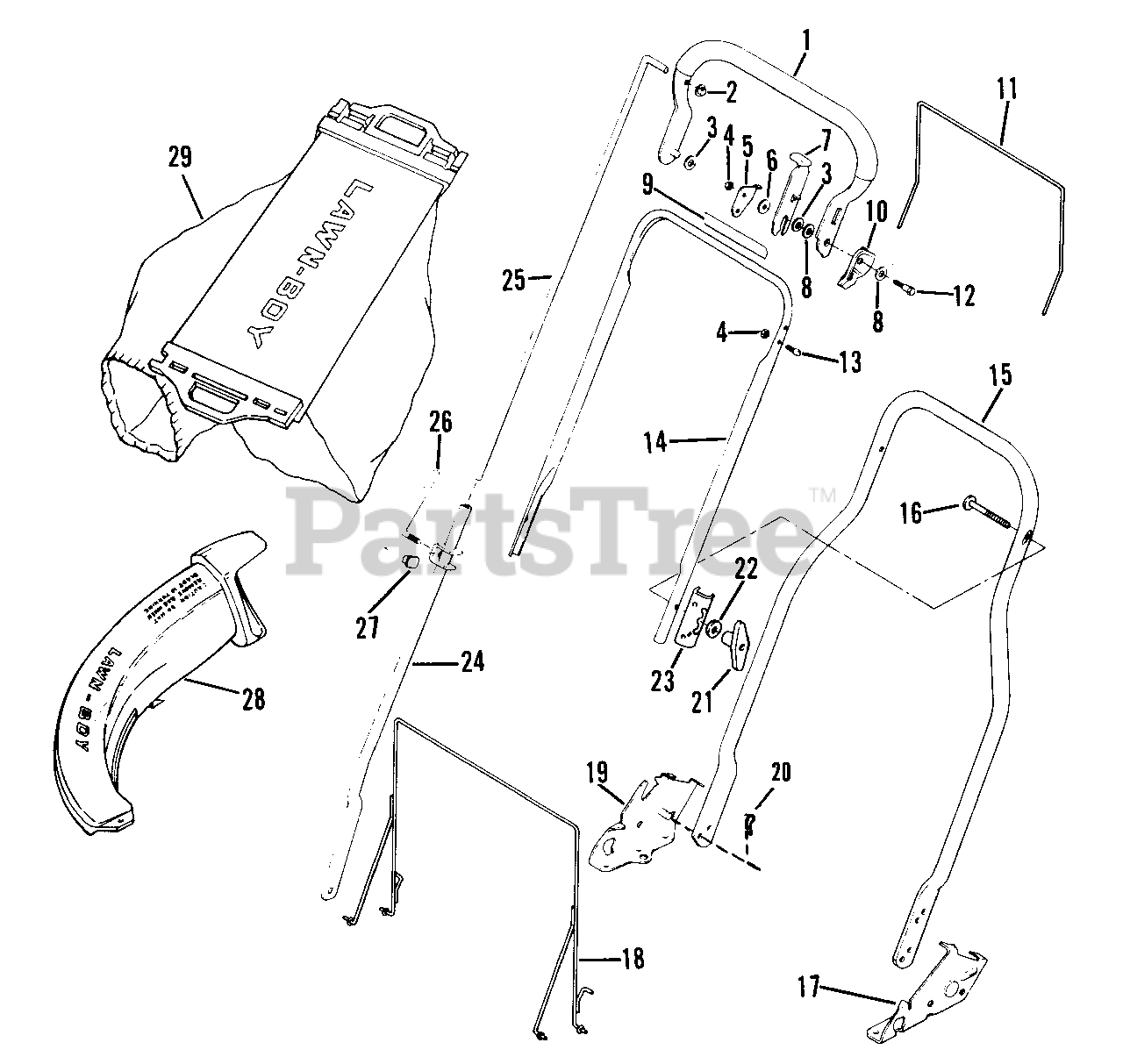

8671 - Lawn-Boy Walk-Behind Mower (SN: 000000001 - 099999999) (1980) HANDLE AND REAR BAGGER GROUP MODEL 8671 Parts Diagram

Walk-Behind Mower

HANDLE AND REAR BAGGER GROUP MODEL 8671 Parts Diagram

  • Title

1

Lawn-Boy 682134

Handle & Grip Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 605546

Palnut
(Superseded to 32112-11)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1.49

$

In Stock, Qty 15

0

3

Lawn-Boy 306359

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 602315

Nut-Lock

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

5

Lawn-Boy 609869

Stop-Handle
(Superseded to 609689)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$25.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 609460

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 610450

Lever-Lockout
(Superseded to 609463)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$53.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 303254

Washer
(Superseded to 121-4605)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, only 1 left!

0

9

Lawn-Boy 610468

Decal

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 610341

Guard-Lever

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Currently unavailable

11

Lawn-Boy 609691

Hanger-Rear

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 606144

Bolt-Shoulder

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 609461

Screw-Stop

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 607669

Handle-Center

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$84.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 607545

Handle Section-Bottom
(Superseded to 612787)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 607543

Screw
(Superseded to 611184)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$6.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 681781

Bracket-Handle-L.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 681805

Hanger Assembly-Front

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 681780

Bracket-Handle-R.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$101.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 605803

Hair Pin

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 607544

Knob

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$22.99

$

In Stock, only 4 left!

0

22

Lawn-Boy 609739

Washer-Curved

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, Qty 10

0

23

Lawn-Boy 609692

Bracket-Rear Hanger

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 679661

Control Lever Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 607660

Control Rod

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 603699

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 602992

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 681969

Chute Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 681960

Bag & Support Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available
