86715 - Toro Height Adjustment Kit (1976) PARTS LIST-HEIGHT ADJUST KIT FACTORY ORDER NUMBER 8-6715 Parts Diagram

Height Adjustment Kit

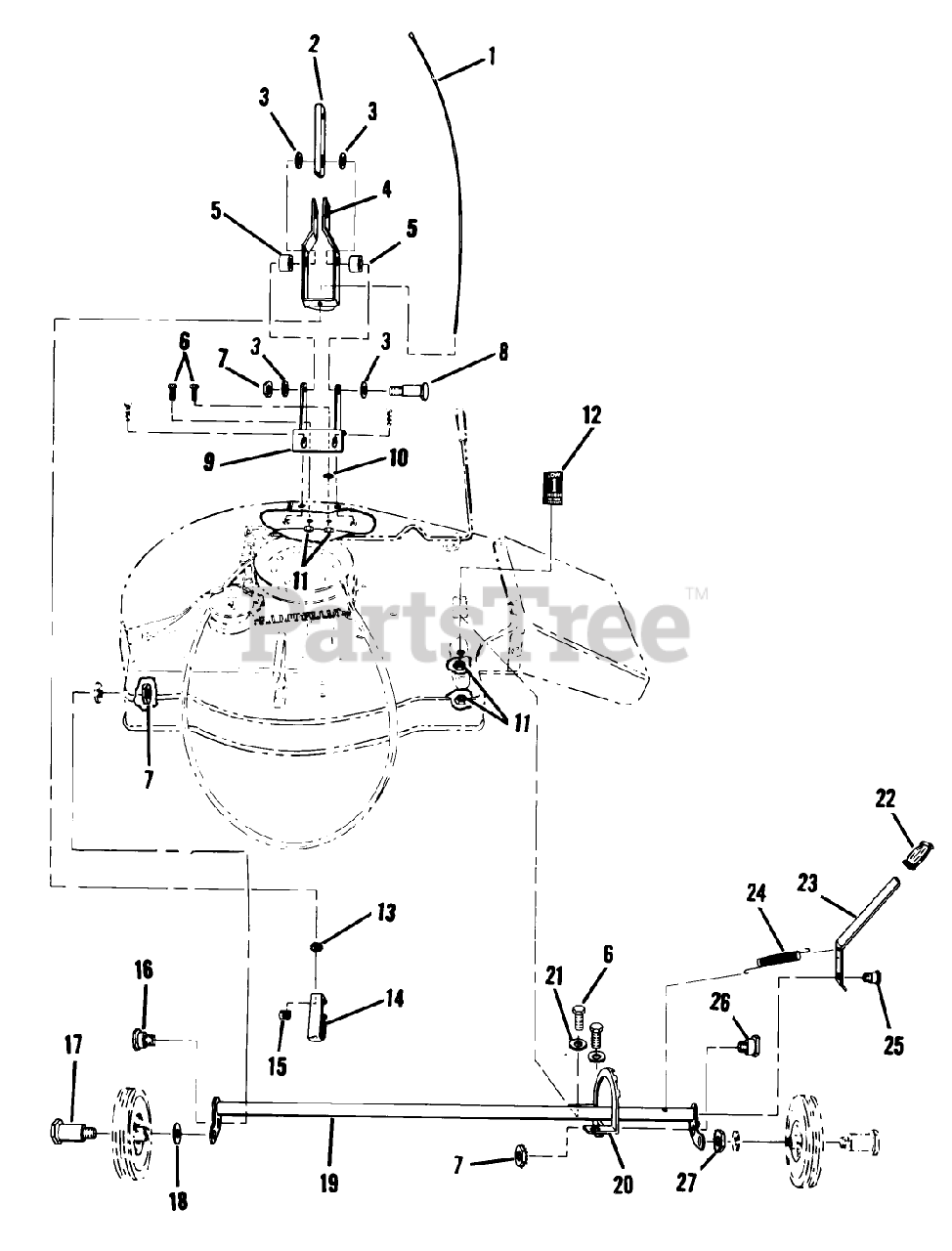

PARTS LIST-HEIGHT ADJUST KIT FACTORY ORDER NUMBER 8-6715 Parts Diagram

  • Title

1

Toro 225575

Lift Cable Assembly

$

$

Currently unavailable

2

Toro 225576

Bar, Hitch

$

$

Currently unavailable

3

Toro 920009-4

Washer

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

4

Toro 225577

Bracket, Pivot

$

$

Currently unavailable

5

Toro 225578

Spacer

$

$

Currently unavailable

6

Toro 908016-4

Bolt Hex 5/16-18

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

7

Toro 915113-6

Nut

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

8

Toro 908040-4

Bolt 3/8-16 x 2 1/2

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

9

Toro 225579

Bracket, Deck Front

$

$

Currently unavailable

10

Toro 920082-4

Lockwasher

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

11

Toro 915662-4

Nut 5/16-18

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

12

Toro 225580

Decal, Height Adjust

$

$

Currently unavailable

13

Toro 915968-4

Nut 1/4-20 Keps

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

14

Toro 225581

Bracket, Cable

$

$

Currently unavailable

15

Toro 915182-4

Nut

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

16

Toro 225582

Shoulder Bolt

$

$

Currently unavailable

17

Toro 225583

Shoulder Bolt

$

$

Currently unavailable

18

Toro 920083-4

Lockwasher

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

19

Toro 225584

Tube Assembly, Height Adjust

$

$

Currently unavailable

20

Toro 225585

Quadrant, Height Adjust

$

$

Currently unavailable

21

Toro 920210-4

Washer

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable

22

Toro 225586

Hand Grip

$

$

Currently unavailable

23

Toro 225587

Lever, Height Adjust

$

$

Not available

24

Toro 225151

Spring

$

$

Not available

25

Toro 225588

Shoulder Bolt

$

$

Currently unavailable

26

Toro 225589

Shoulder Bolt

$

$

Currently unavailable

27

Toro 915974-4

Nut, Jam, 3/8-24 Thd

Note: Standard Hardware Items-May Be Purchased Locally.

$

$

Currently unavailable
