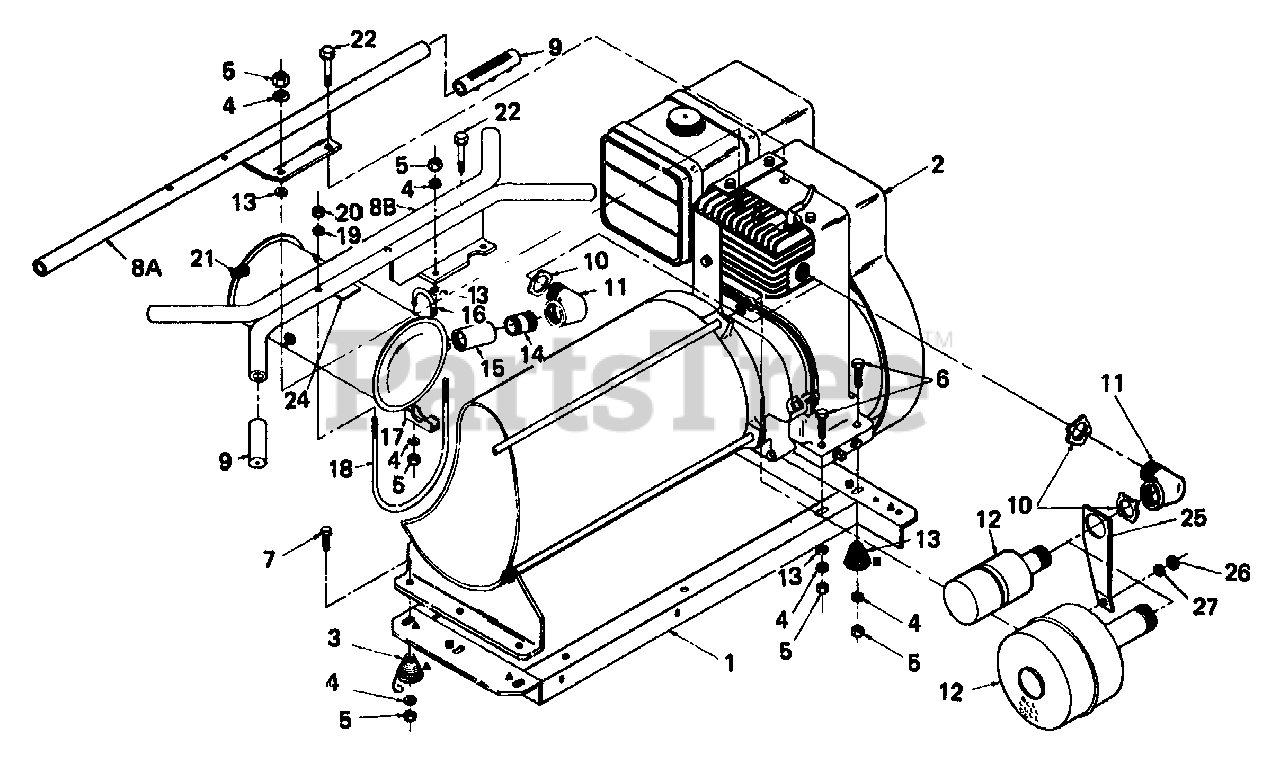

8690-0 - Generac 4,250 Watt Portable Generator Mounting Base Parts Diagram

4,250 Watt Portable Generator

Mounting Base Parts Diagram

  • Title

1

Briggs & Stratton 44900

BASE, Mounting

Note: (Model No. 8690 only)

$

$

Currently unavailable

2

Briggs & Stratton 42409

ENGINE - 8 Horsepower

Note: (Model 8690 only)

$

$

Currently unavailable

3

Briggs & Stratton 25047

SPRING
(Superseded to 7025047YP)

$47.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 22259

NUT, Hex - 5/16"-18
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 22531

CAPSCREW, Hex Head - 5/16"-18 x 1.75"
(Superseded to 5022531)

$19.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 22125

CAPSCREW, Hex Head - 5/16"-18 x 1"

$

$

Currently unavailable

8A

Briggs & Stratton 44361

HANDLE, Carrying

Note: (Model No. 8690 only)

$

$

Not available

8B

Briggs & Stratton 43985

HANDLE, Carrying
(Superseded to 5043985)

Note: Not Used On This Model (Model No. 8691 only)

$119.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 25094

GRIP, Handle
(Superseded to 5025094)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 26771

NUT, Pipe Lock - 3/4"

Note: (Model 8590)

$

$

Currently unavailable

11

Briggs & Stratton 26307

ELBOW - 3/4" NPT

Note: (Model 8590)

$

$

Currently unavailable

12

Briggs & Stratton 50989

MUFFLER

Note: (Model 8590 only)

$

$

Currently unavailable

13

Briggs & Stratton 23594

SPRING

$

$

Currently unavailable

14

Briggs & Stratton 35589

NIPPLE, Pipe - 3/4" x 3.5" long

Note: (Model No. 8590 only)

$

$

Currently unavailable

15

Briggs & Stratton 26905

COUPLING, Pipe - 3/4"

Note: (Model 8590 only)

$

$

Currently unavailable

16

Briggs & Stratton 28238

U-BOLT

$

$

Currently unavailable

17

Briggs & Stratton 28237

SADLE, U-bolt
(Superseded to 7028237YP)

$109.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 27110

U-BOLT - 4.62" diameter
(Superseded to 7027110YP)

$11.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 22237

WASHER, Lock - 3/8"

$

$

Not available

20

Briggs & Stratton 22241

NUT, Hex - 3/8"-16

$

$

Not available

21

Briggs & Stratton 43951

MUFFLER, Spark Arrestor

$

$

Currently unavailable

22

Briggs & Stratton 24726

CAPSCREW, Hex Head (Grade 5) 5/16"-18 x 2.5"

Note: (Model 8590 only)

$

$

Currently unavailable

23

Briggs & Stratton 45121

STABILIZER, Muffler

Note: (Model 8590 only)

$

$

Currently unavailable

24

Briggs & Stratton 37897

SHIELD, Heat

Note: (asbestos)

$

$

Currently unavailable

25

Briggs & Stratton 49391

SUPPORT, Muffler
(Superseded to 5049391B)

Note: (Model 8590 only)

$31.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 22127

NUT, Hex - 1/4"-20

$

$

Not available

27

Briggs & Stratton 22097

WASHER, Lock - 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 50484

DEFLECTOR, Exhaust

Note: (For use with Muffler Part No. 50989 only)

$

$

Currently unavailable
