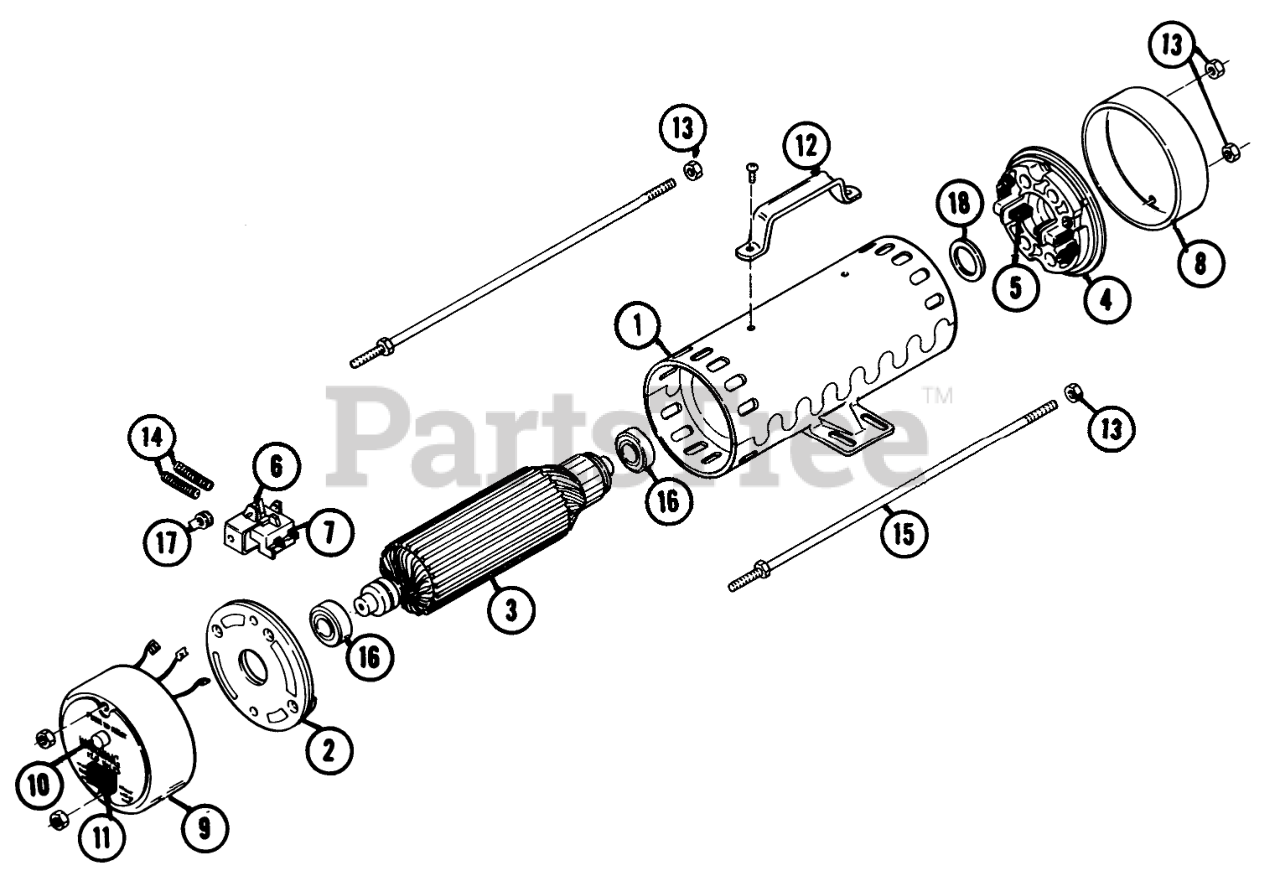

86951 - Toro Rotary Inverter (1975) PARTS LIST FOR ROTARY INVERTER FACTORY ORDER NUMBER 8-6951 Parts Diagram

Rotary Inverter

PARTS LIST FOR ROTARY INVERTER FACTORY ORDER NUMBER 8-6951 Parts Diagram

  • Title

1

Toro 513824

Shell & Magnet Assembly

$

$

Currently unavailable

2

Toro 513831

Front End Bell Assembly w/o Brush Holder

$

$

Currently unavailable

3

Toro 513883

Armature Assembly w/Brushes

$

$

Currently unavailable

4

Toro 513853

Rear End Bell Assembly w/Brushes

$

$

Currently unavailable

5

Toro 513838

Brush Assembly (D.C.)

$

$

Currently unavailable

6

Toro 513880

Brush Holder (A.C.)

$

$

Currently unavailable

7

Toro 513860

Brush Assembly (A.C.)

$

$

Currently unavailable

8

Toro 513964

Cover (D.C. Side)

$

$

Currently unavailable

9

Toro 513871

Bearing

$

$

Currently unavailable

10

Toro 517670

Circuit Breaker

$

$

Not available

11

Toro 513914

Threaded Rod

$

$

Currently unavailable

12

Toro 513881

Handle

$

$

Currently unavailable

13

Toro 513292

Nut, 1/4-20
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

14

Toro 513839

Spring

$

$

Currently unavailable

15

Toro 513914

Threaded Rod

$

$

Currently unavailable

16

Toro 513871

Bearing

$

$

Currently unavailable

17

Toro 522919

Screw

$

$

Currently unavailable

18

Toro 513840

Washer

$

$

Currently unavailable
