86951 - Toro Rotary Inverter (1976)

Rotary Inverter

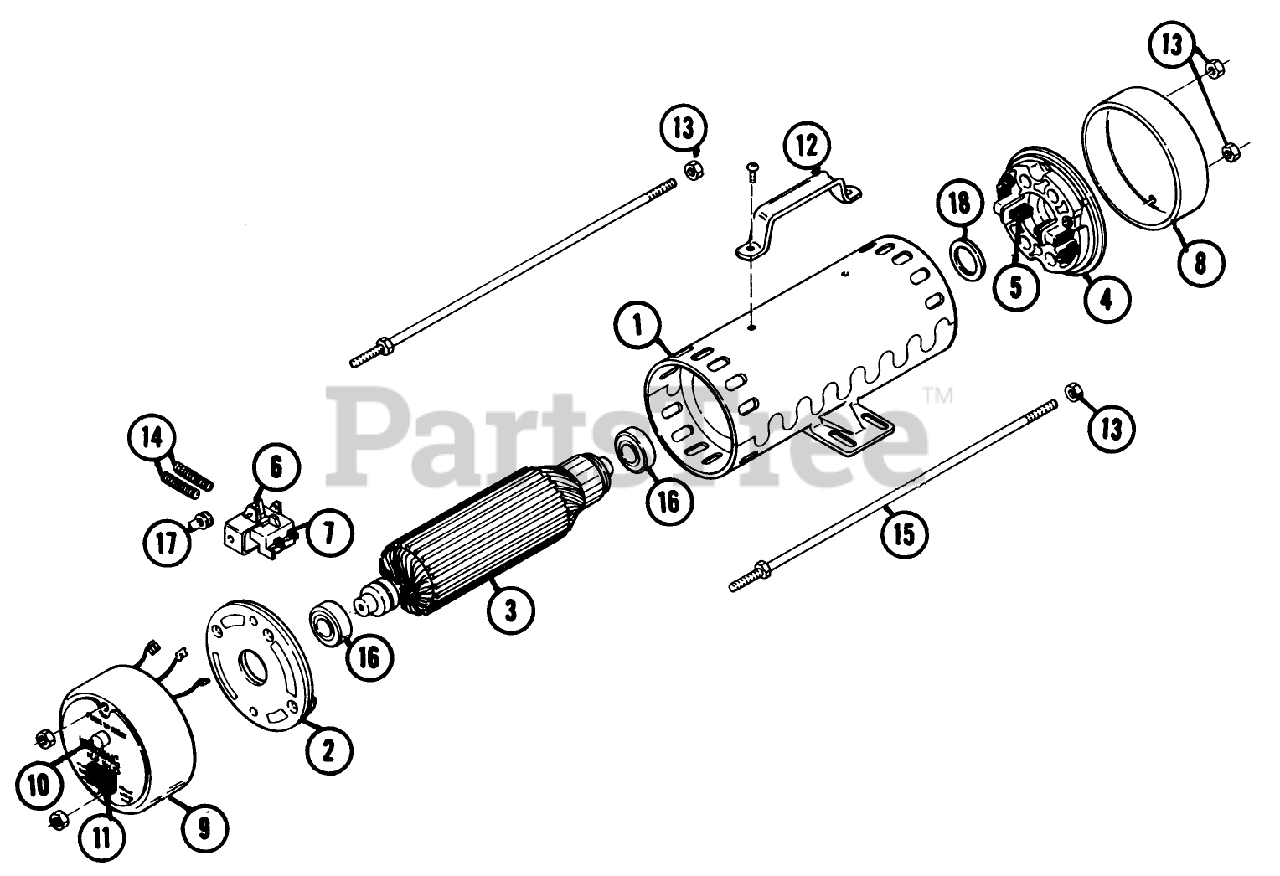

86951 - Toro Rotary Inverter (1976) > Parts Diagrams (1) > PARTS LIST FOR ROTARY INVERTER FACTORY ORDER NUMBER 8-6951

  • Title
513824

1

Shell & Magnet Assembly

Part# 513824

OEM Warranty Repair Part for Toro

Currently unavailable

513831

2

Front End Bell Assembly w/o Brush Holder

Part# 513831

OEM Warranty Repair Part for Toro

Currently unavailable

513883

3

Armature Assembly w/Brushes

Part# 513883

OEM Warranty Repair Part for Toro

Currently unavailable

513853

4

Rear End Bell Assembly w/Brushes

Part# 513853

OEM Warranty Repair Part for Toro

Currently unavailable

513838

5

Brush Assembly (D.C.)

Part# 513838

OEM Warranty Repair Part for Toro

Currently unavailable

513880

6

Brush Holder (A.C.)

Part# 513880

OEM Warranty Repair Part for Toro

Currently unavailable

513860

7

Brush Assembly (A.C.)

Part# 513860

OEM Warranty Repair Part for Toro

Currently unavailable

513964

8

Cover (D.C. Side)

Part# 513964

OEM Warranty Repair Part for Toro

Currently unavailable

513871

9

Bearing

Part# 513871

OEM Warranty Repair Part for Toro

Currently unavailable

517670

10

Circuit Breaker

Part# 517670

OEM Warranty Repair Part for Toro

Not available

513914

11

Threaded Rod

Part# 513914

OEM Warranty Repair Part for Toro

Currently unavailable

513881

12

Handle

Part# 513881

OEM Warranty Repair Part for Toro

Currently unavailable

513292

13

Nut, 1/4-20

Part# 513292 (Superseded to 3217-5)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.57

513839

14

Spring

Part# 513839

OEM Warranty Repair Part for Toro

Currently unavailable

513914

15

Threaded Rod

Part# 513914

OEM Warranty Repair Part for Toro

Currently unavailable

513871

16

Bearing

Part# 513871

OEM Warranty Repair Part for Toro

Currently unavailable

522919

17

Screw

Part# 522919

OEM Warranty Repair Part for Toro

Currently unavailable

513840

18

Washer

Part# 513840

OEM Warranty Repair Part for Toro

Currently unavailable
