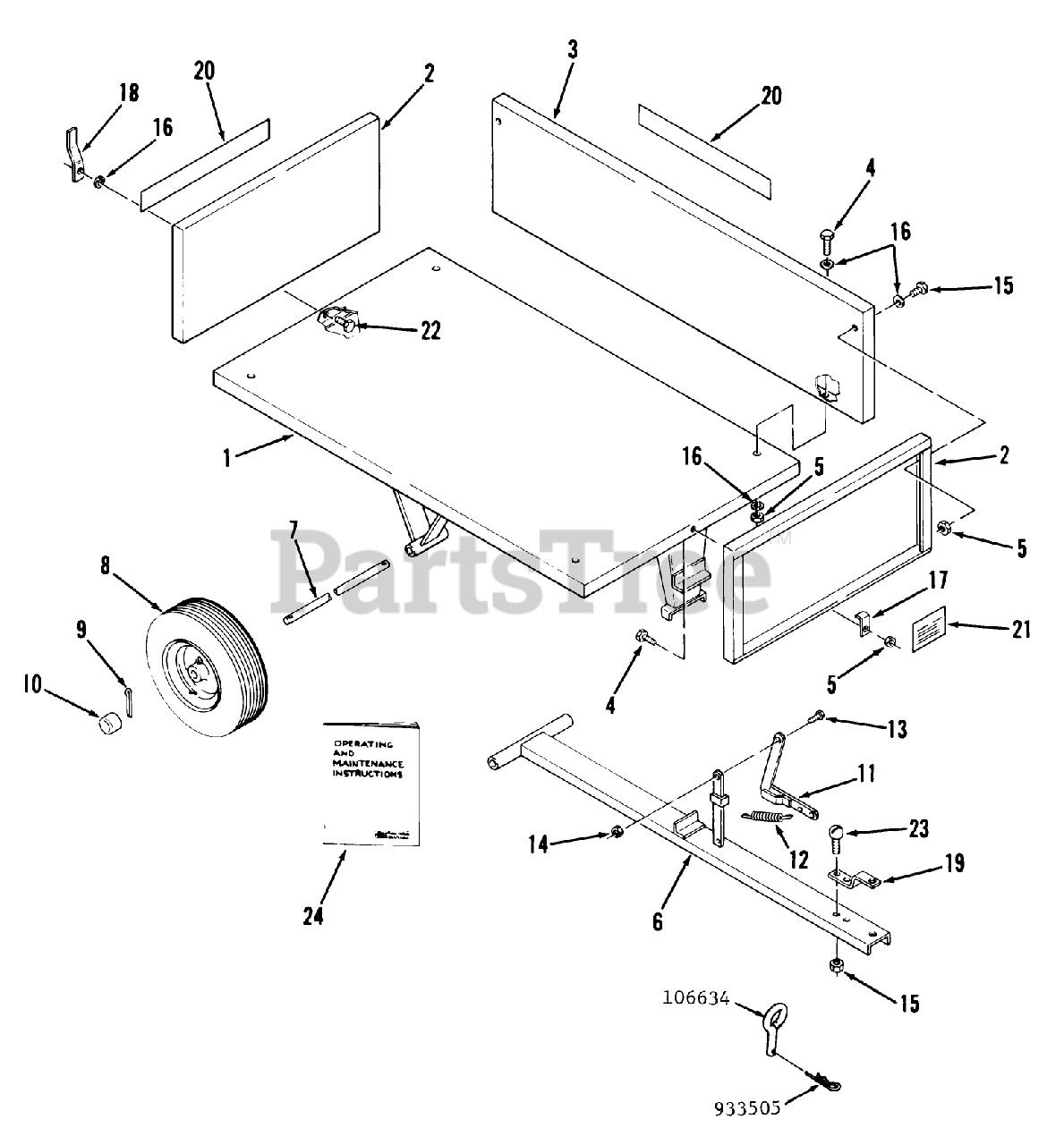

87-05DC01 - Toro 5.5 Cubic Foot Cart (1978) Dump Cart-18 Cu Ft. (.5 Cu. M) Vehicle Identification Number 87-18dc01 Parts Diagram

5.5 Cubic Foot Cart

Dump Cart-18 Cu Ft. (.5 Cu. M) Vehicle Identification Number 87-18dc01 Parts Diagram

  • Title

1

Toro 226069

Bed Assembly

$

$

Currently unavailable

2

Toro 2226061

Front and Rear Gate

$

$

Currently unavailable

3

Toro 3226062

Side Gate

$

$

Currently unavailable

4

Toro 4908034

Hex Bolt 3/8-16 x 1

$

$

Currently unavailable

5

Toro 5915663

E. S. Nut 3/8-16

$

$

Currently unavailable

6

Toro 6226068

Drawbar Assembly

$

$

Currently unavailable

7

Toro 7226064

Axle

$

$

Currently unavailable

8

Toro 226065

DISCONTINUED
(Superseded to 109034)

$

$

Not available

9

Toro 932028

See Supercession: 3272-19
(Superseded to 3272-19)

$0.99

$

Usually ships in 3-6 days

0

10

Toro 103565

DISCONTINUED

$

$

Not available

11

Toro 226066

DISCONTINUED

$

$

Not available

12

Toro 226067

DISCONTINUED

$

$

Not available

13

Toro 908005

See Supercession: 321-6
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

14

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 6

0

15

Toro 908040

See Supercession: 323-12
(Superseded to 323-12)

$2.99

$

In Stock, Qty 7

0

16

Toro 920009

See Supercession: 3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

17

Toro 226070

DISCONTINUED

$

$

Not available

18

Toro 226071

DISCONTINUED

$

$

Not available

19

Toro 226072

DISCONTINUED

$

$

Not available

20

Toro 102831

See Supercession: 108851
(Superseded to 108851)

$43.99

$

Usually ships in 3-6 days

0

21

Toro 106702

Weight Limit Decal

$

$

Currently unavailable

22

Toro 908037

See Supercession: 323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

23

Toro 226128

See Supercession: 910891
(Superseded to 910891)

$

$

Not available

24

Toro 803718R1

MANUAL-OPERATOR

$3.23

$

Usually ships in 3-6 days

0

24

Toro 226052

DISCONTINUED
(Superseded to 109034)

$

$

Not available

24

Toro 226049

See Supercession: 9792
(Superseded to 9792)

$

$

Not available

24

Toro 226050

See Supercession: 109036
(Superseded to 109036)

$

$

Not available
